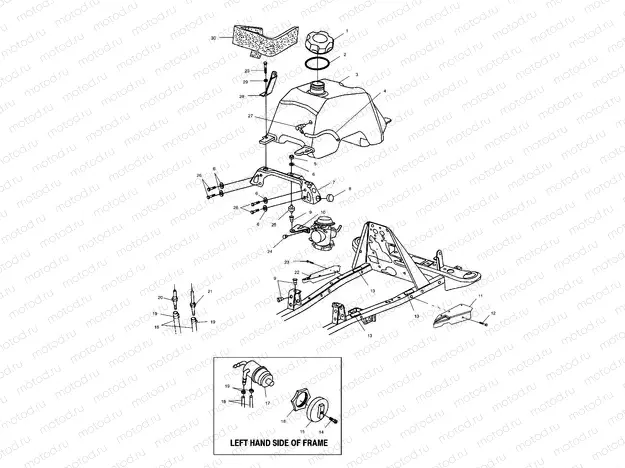

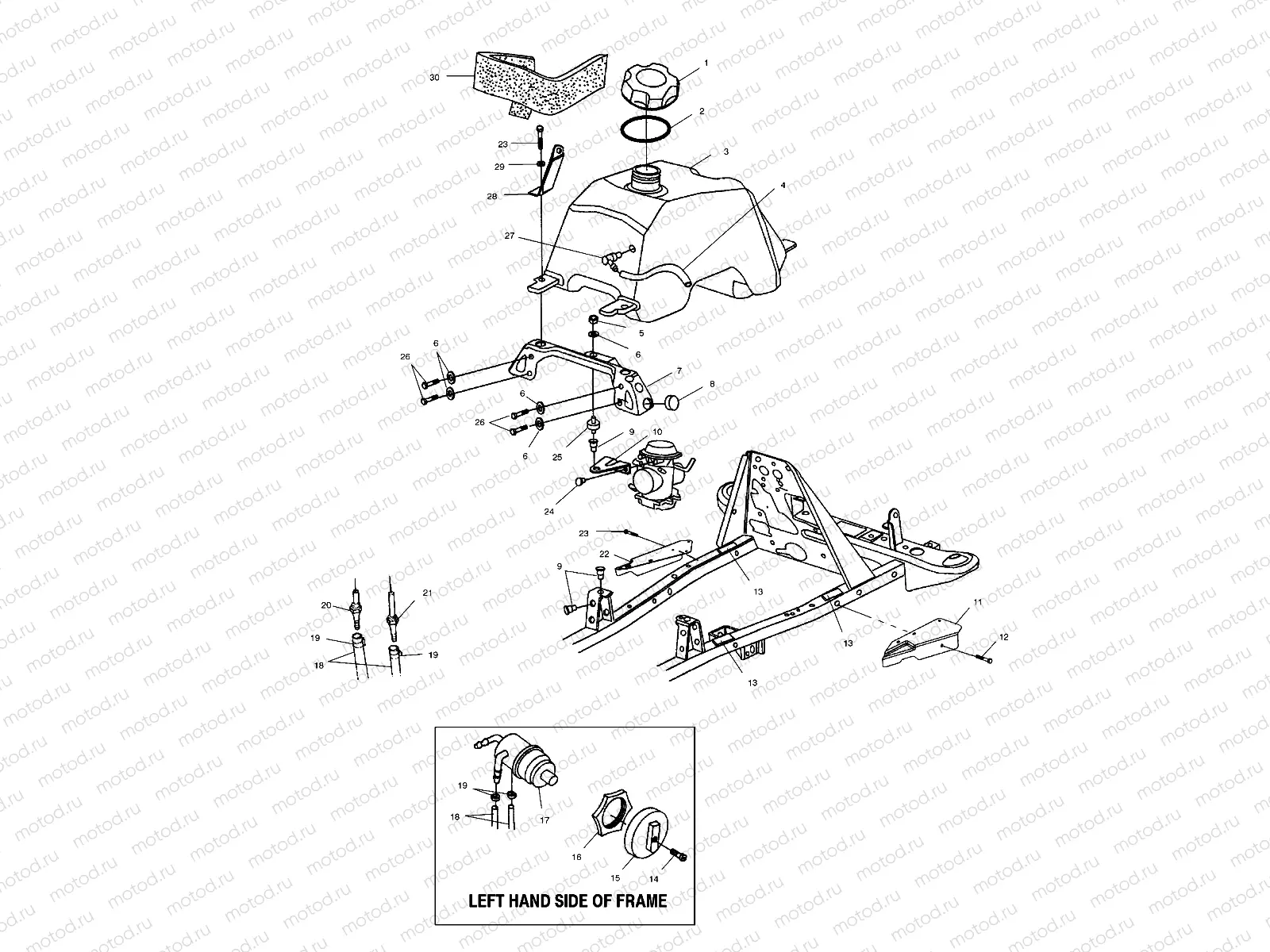

Главная Каталог товаров Polaris EPC 2002 Polaris ATV Polaris 2002 MAGNUM 500 2X4 HDS (A02CB50FC) Polaris 2002 ATV FUEL TANK and CARBURETOR MOUNTING - A02CB50FC (4974857485B01) | FUEL TANK and CARBURETOR MOUNTING - A02CB50FC (4974857485B01)

FUEL TANK and CARBURETOR MOUNTING - A02CB50FC (4974857485B01) | FUEL TANK and CARBURETOR MOUNTING - A02CB50FC (4974857485B01)

FUEL TANK and CARBURETOR MOUNTING - A02CB50FC (4974857485B01) | FUEL TANK and CARBURETOR MOUNTING - A02CB50FC (4974857485B01)

Например: 5450389

1

5450389

Fuel cap

2

5812123

Gasket

3

2520143

TANK ASM,FUEL Substituted by 2520174 (Incl. 5,19,20)

4

8360009-600

LINE FUEL 1/8 ID 600 CM.

5

7542105

NUT HEX

6

7552605

Rondelle

7

5245672-067

BRKT-CARB SUPPORT,BLK (AA)

8

5410414

BUMPER RUBBER

9

7547069

NUTSERT HEX

10

5245673-067

MOUNT-425/500 CARB,BLK

11

5245533-067

SHIELD-SPLASH RH BLK

12

7517386

Vis

13

5810317

PAD,FUELTANK BRKT. Substituted by 8360026

14

7517505

Vis

15

5432559

KNOB FUEL VALVE

16

5432733

NUT FUEL VALVE

17

7052161

VALVE 3-WAY

18

8450040-600

LINE FUEL 1/4 ID(600 CM.)

19

7080003

CLAMP HOSE

20

7052150

FITTING FUEL OUT MAIN 4 Y

21

7052149

FITTING FUEL OUT RES. Z

22

5245394-067

SHIELD-SPLASH LH BLK

23

7512277

Vis

24

3084205

ASM. SCREW & WASHER

25

3110050

MOUNT CARBURETOR

26

7512276

Vis

27

5431053

VENT TANK

28

5222155

BRKT-FUEL COVER MNT RH PLTD

28

5222154

BRKT-FUEL COVER MNT LH PLTD

29

7558301

WASHER FLAT

30

5811899

FOAM-SEAL,17"
