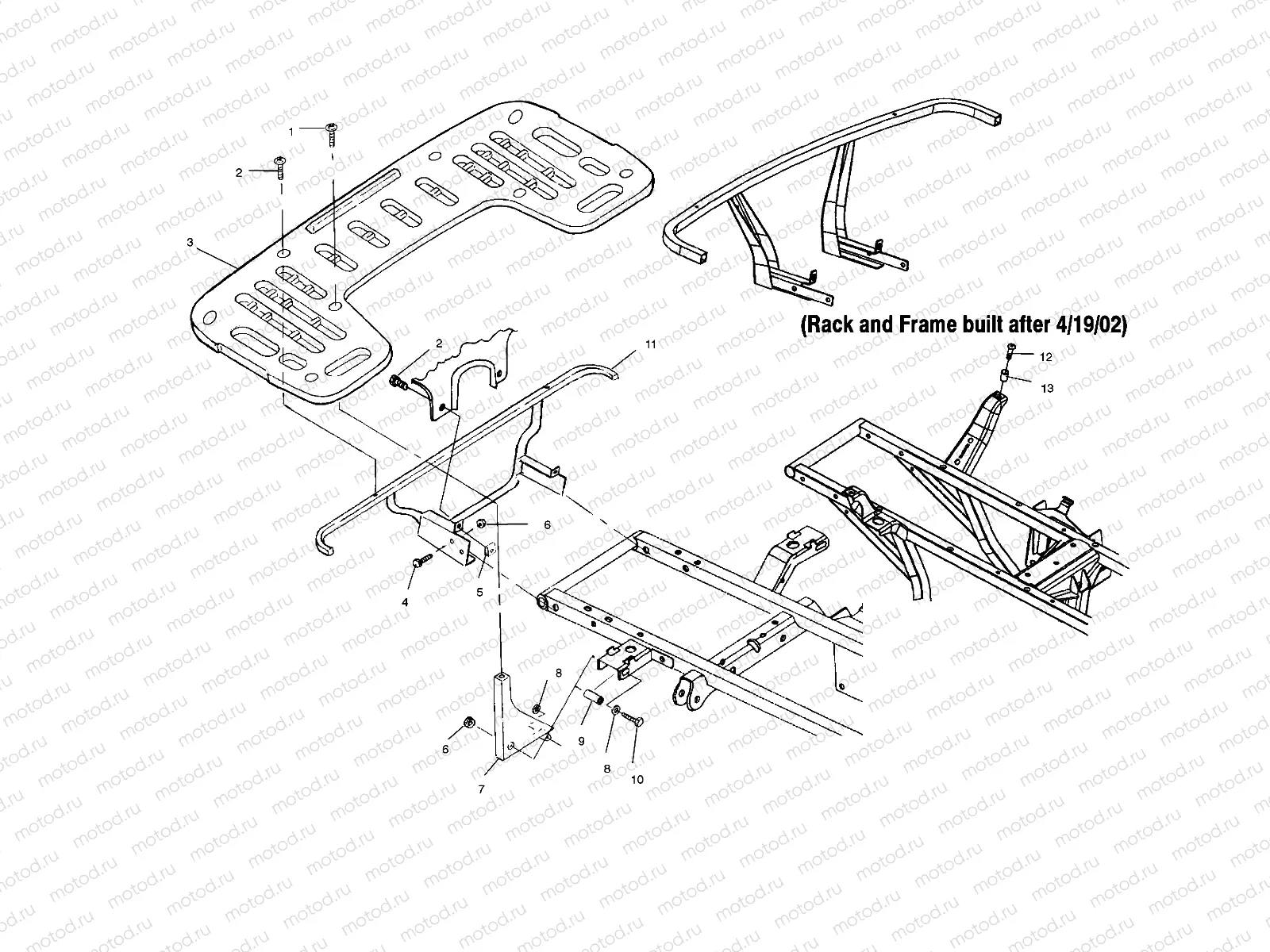

Главная Каталог товаров Polaris EPC 2002 Polaris ATV Polaris 2002 MAGNUM 500 2X4 HDS (A02CB50FC) Polaris 2002 ATV REAR RACK MOUNTING - A02CB50FC (4974857485A06) | REAR RACK MOUNTING - A02CB50FC (4974857485A06)

REAR RACK MOUNTING - A02CB50FC (4974857485A06) | REAR RACK MOUNTING - A02CB50FC (4974857485A06)

REAR RACK MOUNTING - A02CB50FC (4974857485A06) | REAR RACK MOUNTING - A02CB50FC (4974857485A06)

Например: 7517686

1

7517686

Vis

2

7517685

Vis

3

2670174-070

ASM-RACK REAR BLK

4

7512329

Vis

5

7670096

NUT

6

7542324

Nut (SELF-LOCKING)

7

1040524-067

MNT LH.FRT R.RACK BLK

7

1040525-067

MNT RH.FRT R.RACK BLK.

8

7558402

WASHER FLAT

9

5333332-067

Entretoise

10

7515385

Vis

11

1040490-067

SUPPORT R.RACK (500) BLK

11

1013724-067

REAR RACK SUPPORT BLK.

12

7517983

SCR-5/16-18X3.00 TR/TX-M

13

5334092

SPACER-.375X.75X1.56 B
