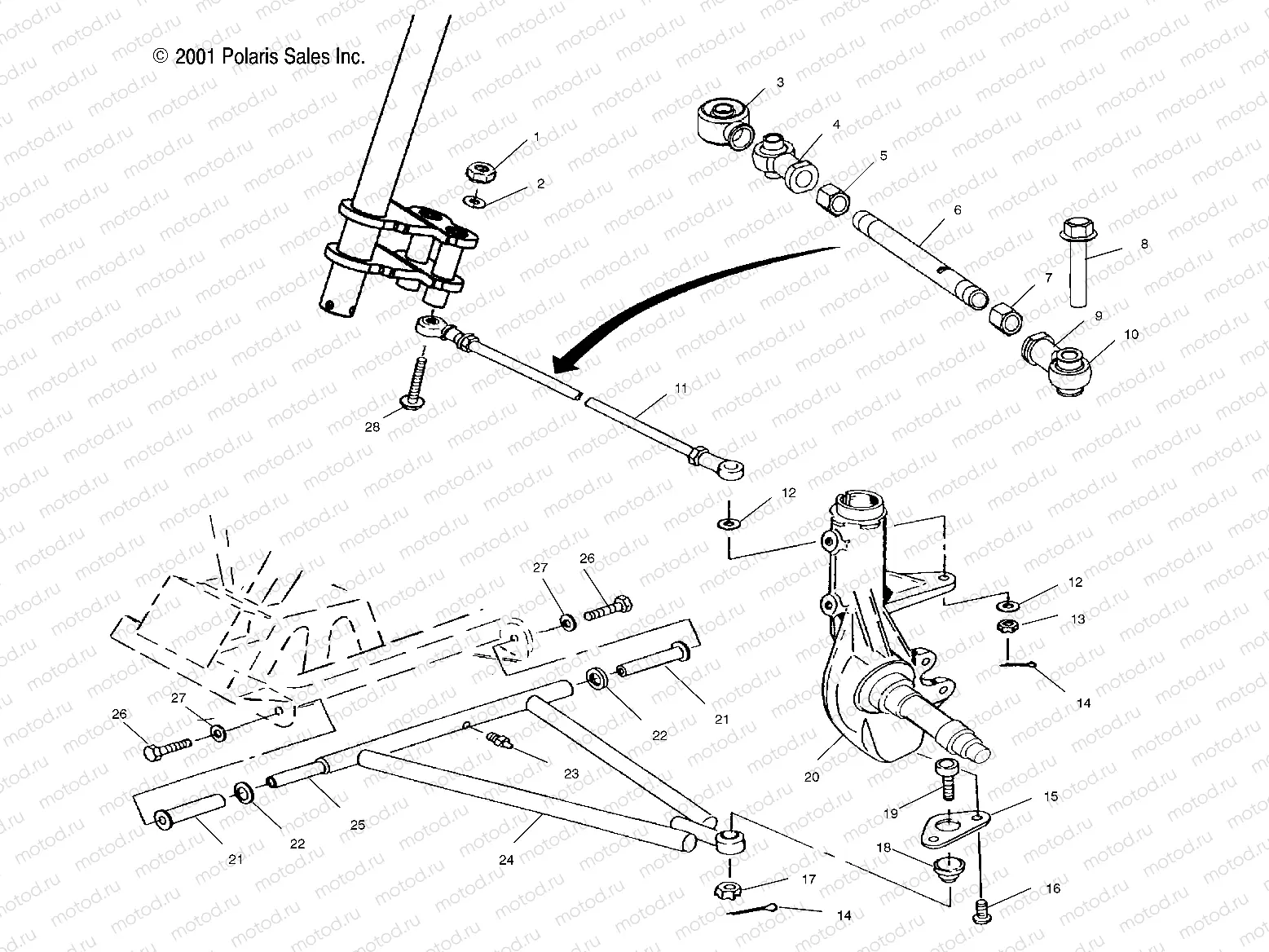

Главная Каталог товаров Polaris EPC 2002 Polaris ATV Polaris 2002 MAGNUM 500 2X4 HDS (A02CB50FC) Polaris 2002 ATV A-ARM/STRUT MOUNTING - A02CB50FC (4974857485B06) | A-ARM/STRUT MOUNTING - A02CB50FC (4974857485B06)

A-ARM/STRUT MOUNTING - A02CB50FC (4974857485B06) | A-ARM/STRUT MOUNTING - A02CB50FC (4974857485B06)

A-ARM/STRUT MOUNTING - A02CB50FC (4974857485B06) | A-ARM/STRUT MOUNTING - A02CB50FC (4974857485B06)

Например: 7542439

1

7542439

Nut (SELF-LOCKING)

2

7558403

WASHER WROUGHT

3

5412928

BOOT-SEAL ROD END 1/2 IN

4

7061139

ROD-END 3/8 1/2-20RH 44DEG

5

7542711

NUT-JAM

6

5020927

ROD TIE

7

7547028

NUT JAM LH

8

7517909

BOLT-M10X1.25X65 HX WASH HD

9

7061138

ROD-END 10MM 1/2-20LH 42 DEG

10

5411909

HOSE TEE/BOTTLE 3/4

11

1822851

ASM-TIE ROD 1/2-20X14.16

12

7556099

WASHER

13

7547177

NUT-M10X1.25-HX-LOCK-Y

14

7661203

PIN COTTER

15

5240717

BRACKET BALLJOINT

16

7512284

BOLT SOCKET

17

7542438

NUT CASTLE

18

5412658

BOOT-BALLJOINT GREASELESS STRT

19

7061158

BALL-JOINT GREASELESS STRUT

20

LR--

CALIPER, BRAKE, RH

21

5436973

BUSHING-A-ARM LONG 102.36MM(10

22

5020677

BUSHING A-ARM SPACER

23

7080433

FITTING LUBRICATION THREADED(1

24

2202276-067

KIT-A-FRAME LH BLK(1542175)

24

2202277-067

KIT-A-FRAME RH BLK(1542176)

25

5133806

SHAFT-A-ARM

26

7512492

Vis

27

7552603

Rondelle (Lock)

28

7518033

Vis
