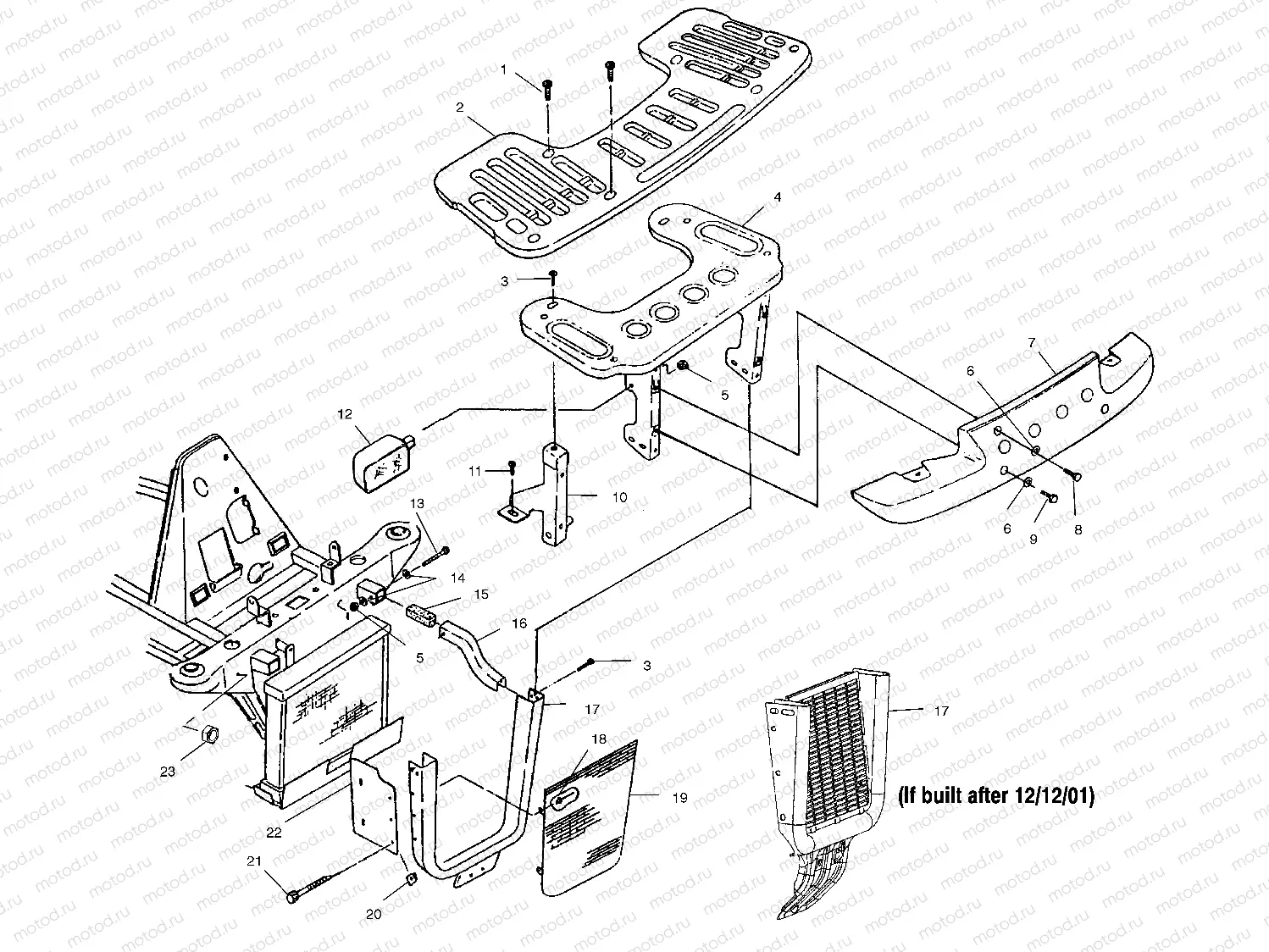

Главная Каталог товаров Polaris EPC 2002 Polaris ATV Polaris 2002 MAGNUM 500 2X4 HDS (A02CB50FC) Polaris 2002 ATV FRONT RACK and BUMPER MOUNTING - A02CB50FC (4974857485A07) | FRONT RACK and BUMPER MOUNTING - A02CB50FC (4974857485A07)

FRONT RACK and BUMPER MOUNTING - A02CB50FC (4974857485A07) | FRONT RACK and BUMPER MOUNTING - A02CB50FC (4974857485A07)

FRONT RACK and BUMPER MOUNTING - A02CB50FC (4974857485A07) | FRONT RACK and BUMPER MOUNTING - A02CB50FC (4974857485A07)

Например: 7517685

1

7517685

Vis

2

2670180-070

RACK FRONT BLK

3

7515399

Vis

4

1014023-067

SUPPORT FRONT RACK BLK

5

7542324

Nut (SELF-LOCKING)

6

7555954

Rondelle

7

5432155-070

BUMPER BLK

8

7515391

Vis

9

7515390

Vis

10

1013746-067

WELD-SUPPORT RACK FRONT RH BLK

10

1013744-067

WELD-SUPPORT RACK FRONT LH BLK

11

7512232

Vis

12

2431011

ASM-HEADLIGHT 30/30W SIDE MOUN

12

2431012

ASM-HEADLIGHT 30/30W SIDE MOUN

12

4030061

BULB H/L 30/30 W.

13

7512329

Vis

14

7558402

WASHER FLAT

15

5810467

PLUG FRAME

16

5244730-067

EXTENSION-FRAME RH BLK

16

5244729-067

EXTENSION-FRAME LH BLK

17

1013772-067

WELD-BRUSH GUARD BLK

17

1013772-067

WELD-BRUSH GUARD BLK

18

7621330

RIVET POP

19

5240591-067

GRILL BRUSHGUARD BLK.

20

7670094

Nut

21

7512097

Vis

22

5433923

SHIELD-RADIATOR SIDE LH

22

5433924

SHIELD-RADIATOR SIDE RH

23

7547069

NUTSERT HEX
