Главная Каталог товаров Polaris EPC 1994 Polaris ATV Polaris 1994 400L 6X6 (W948740) Polaris 1994 ATV SWING ARM/GUARD MOUNTING 6x6 400L W948740 (4926802680C005) | SWING ARM/GUARD MOUNTING 6x6 400L W948740 (4926802680C005)

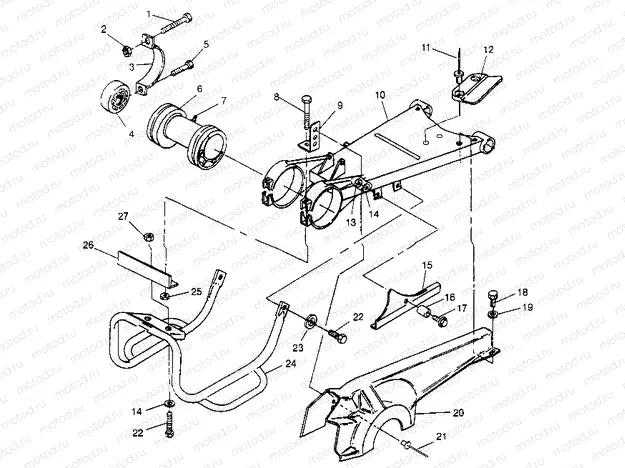

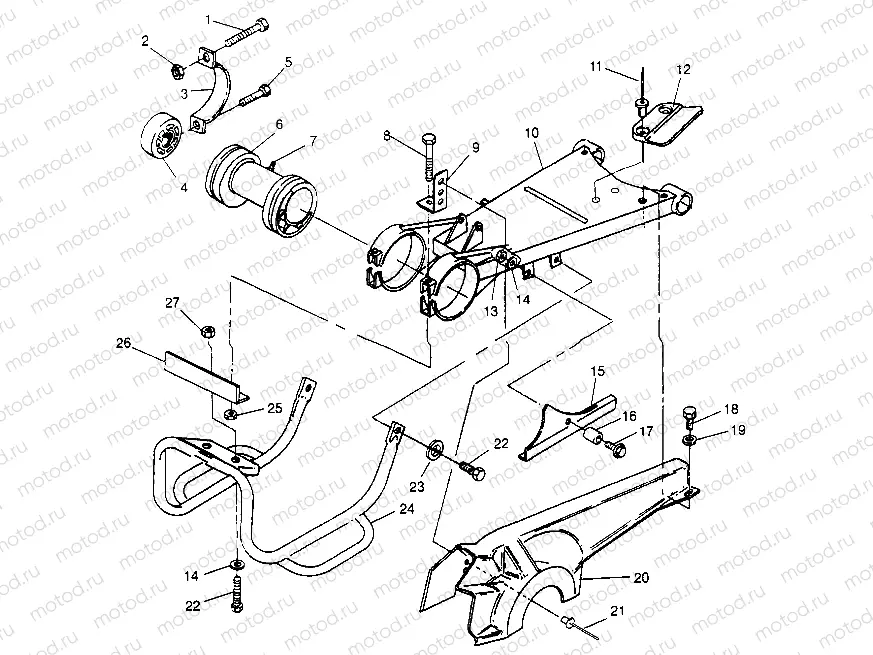

SWING ARM/GUARD MOUNTING 6x6 400L W948740 (4926802680C005) | SWING ARM/GUARD MOUNTING 6x6 400L W948740 (4926802680C005)

SWING ARM/GUARD MOUNTING 6x6 400L W948740 (4926802680C005) | SWING ARM/GUARD MOUNTING 6x6 400L W948740 (4926802680C005)

Например: 7512569

1

7512569

BOLT(10)

2

7542522

NUT FLANGE

3

1580067-067

WELD-BRKT SWING ARM EXT BLK

4

5130945

HOUSING SWING ARM

5

7512520

Vis

6

5130663

HOUSING, AXLE

7

7080306

FITTING LUBE.W/BALL CK.

8

7512576

Vis

9

5222220-067

BRKT CHAIN GUARD BLK.

10

LR--

CALIPER, BRAKE, RH

11

7621433

RIVET

12

5431310

GUIDE CHAIN

13

7542321

NUT FLANGE

14

7558402

WASHER FLAT

15

5430776

GUARD CHAIN

16

5332828

BUSHING

17

7515304

SCREW-FLANGED

18

7512252

SCREW(10)

19

7558301

WASHER FLAT

20

2640009

"""GUARD CHAIN"""

21

7621301

RIVET

22

7512325

Vis

23

7552901

Rondelle (Lock)

24

1040183-067

"""GUARD RACK"""

25

7542503

NUT FLEXLOCK

26

5222221-067

MOUNT-ROCK GUARD BRKT BLK

27

7542324

Nut (SELF-LOCKING)

Узлы для 400L 6X6 (W948740) Polaris 1994 ATV
