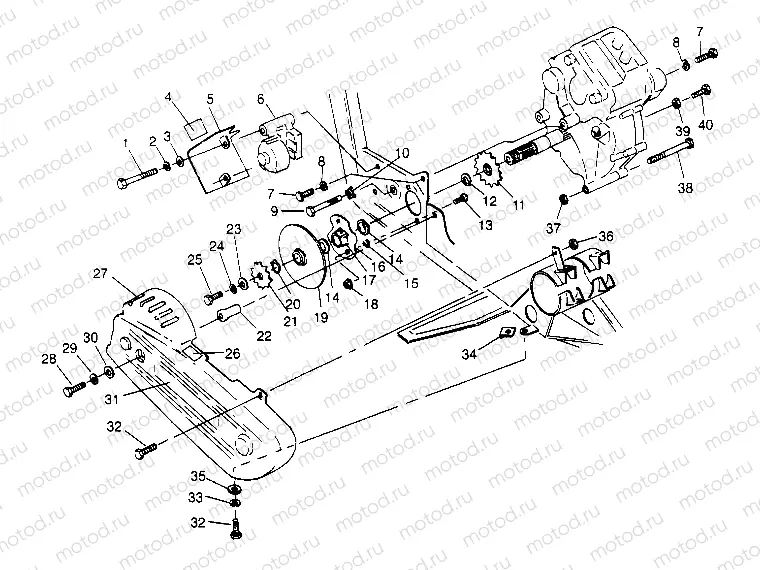

GEARCASE/BRAKE and CHAIN COVER MOUNTING 6x6 400L W948740 (4926802680C010) | GEARCASE/BRAKE and CHAIN COVER MOUNTING 6x6 400L W948740 (4926802680C010)

GEARCASE/BRAKE and CHAIN COVER MOUNTING 6x6 400L W948740 (4926802680C010) | GEARCASE/BRAKE and CHAIN COVER MOUNTING 6x6 400L W948740 (4926802680C010)

Например: 7515345

1

7515345

Vis

2

7552901

Rondelle (Lock)

3

7558402

WASHER FLAT

4

7072790

DECAL(CPSC),BRAKE SHIELD Substituted by 7075339

5

5240149-067

SHIELD R.CALIPER BLK.

6

1910162

DESC NOT_AVAILABLE

7

7515522

Vis

8

7552603

Rondelle (Lock)

13

7515484

BOLT,CARRIAGE(10)

14

3610026

SEAL BRAKE

15

5210764

SPACER-.020

15

5211517

SHIM (.030)

15

5211065

SHIM .010

16

1590237

BRG.ASM O/P SHAFT

17

7080306

FITTING LUBE.W/BALL CK.

18

7542449

NUT FLANGE LOCK

22

5333244

SPACER, CHAIN GUARD

24

LR--

CALIPER, BRAKE, RH

26

7074214

DECAL,LUBRICATION

27

5431717

GUARD CHAIN CTR.

28

7515346

Vis

29

7552606

Rondelle

30

7558402

WASHER FLAT

31

7073454

DECAL,'DEMAND-DRIVE'

32

7512269

Vis

33

7552605

Rondelle

34

7670060

NUT SPEED

35

7558302

WASHER WROUGHT

36

7542122

NUT-NYLOK

37

7542403

NUT LOCK

38

7515472

Vis

39

7542404

Nut

40

7515485

Vis
