Главная Каталог товаров Polaris EPC 1994 Polaris ATV Polaris 1994 400L 6X6 (W948740) Polaris 1994 ATV COOLING SYSTEM 6x6 400L W948740 (4926802680A010) | COOLING SYSTEM 6x6 400L W948740 (4926802680A010)

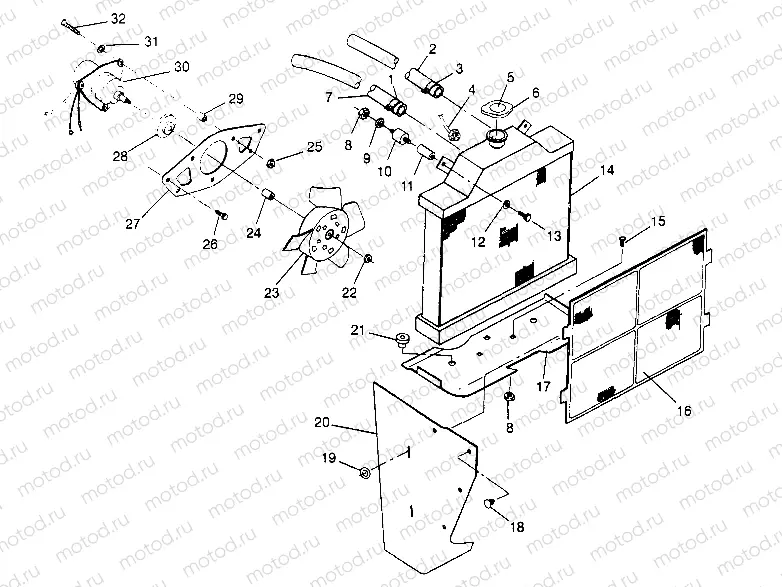

COOLING SYSTEM 6x6 400L W948740 (4926802680A010) | COOLING SYSTEM 6x6 400L W948740 (4926802680A010)

COOLING SYSTEM 6x6 400L W948740 (4926802680A010) | COOLING SYSTEM 6x6 400L W948740 (4926802680A010)

Например: 7080475

1

7080475

CLAMP HOSE SS

2

5411173

HOSE LOWER ENGINE

3

7080225

CLAMP-HOSE Substituted by 7080547

4

4110099

SWITCH,RADIATOR THERMO.

5

7073068

DECAL(CPSC),RAD.CAP

6

2511270

CAP PRESSURE (13 LB)

7

5410570

HOSE ENG UPPER

8

7542122

NUT-NYLOK

9

7558301

WASHER FLAT

10

3110032

MOUNT RUBBER

11

5020572

SPACER MOUNT

12

7552605

Rondelle

13

7512113

Vis

14

1240006

RADIATOR

15

7512193

BOLT CARRIAGE

16

5431610

COVER RADIATOR W/MESH

17

5222547-067

GUARD,LOW.RADIATOR

18

7670078

CLIP PLASTIC DART

19

5410607

O RING

20

5431189

SHIELD RH RADIATOR

20

5431188

SHIELD LH RADIATOR

21

5410584

BUSHING-MOUNT LOWER RADIATOR

23

5240822

BLADE, FAN

24

LR--

CALIPER, BRAKE, RH

25

7541915

Nut

26

7512252

SCREW(10)

27

5224741-067

BRKT COOL.FAN BLK

29

5333073

SPACER, FAN BRKT.

31

7558201

WASHER FLAT

32

7511874

SCREW(10)

Узлы для 400L 6X6 (W948740) Polaris 1994 ATV
