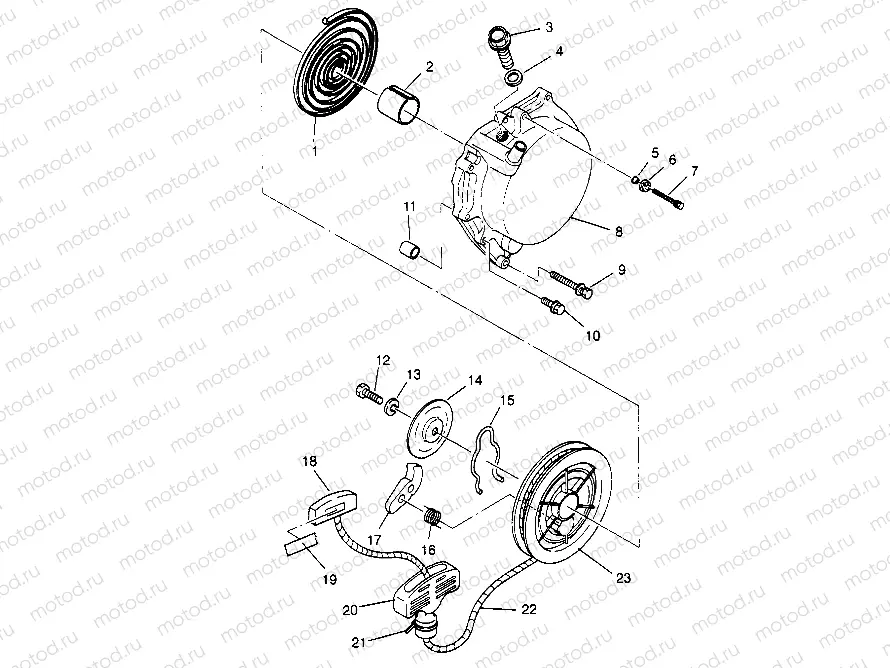

Главная Каталог товаров Polaris EPC 1994 Polaris ATV Polaris 1994 300 4X4 (W948130) Polaris 1994 ATV RECOIL STARTER 4x4 300 W948130 (4926762676D002) | RECOIL STARTER 4x4 300 W948130 (4926762676D002)

RECOIL STARTER 4x4 300 W948130 (4926762676D002) | RECOIL STARTER 4x4 300 W948130 (4926762676D002)

RECOIL STARTER 4x4 300 W948130 (4926762676D002) | RECOIL STARTER 4x4 300 W948130 (4926762676D002)

Например: 3083185

1

3083185

SPRING SPIRAL

2

3084750

BUSHING

3

3083453

PLUG

4

3082956

GASKET

5

3083732

Entretoise

6

3083731

MOUNTING,RUBBER

7

3083730

ASM. BOLT AND WASHER

8

3084781

"""ASM. RECOIL STARTER"""

8

3084780

"""ASM. RECOIL STARTER"""

9

3084782

BOLT&WASHER

10

3086751

Vis

11

3083669

BUSHING STARTER

12

3085266

BOLT&WASHER ASM.

13

3084752

Rondelle (spring)

14

3084744

PLATE FRICTION

15

3083379

SPRING FRICTION

16

3083463

SPRING RETURN

17

3083378

RATCHET

18

3085083

ROPE ASM

19

3085083

ROPE ASM

20

3085083

ROPE ASM

21

3084823

BAND WIRE

22

2870621

ROPE 100 FT NYL.STARTER

22

3085083

ROPE ASM

23

3084822

ASM. REEL
