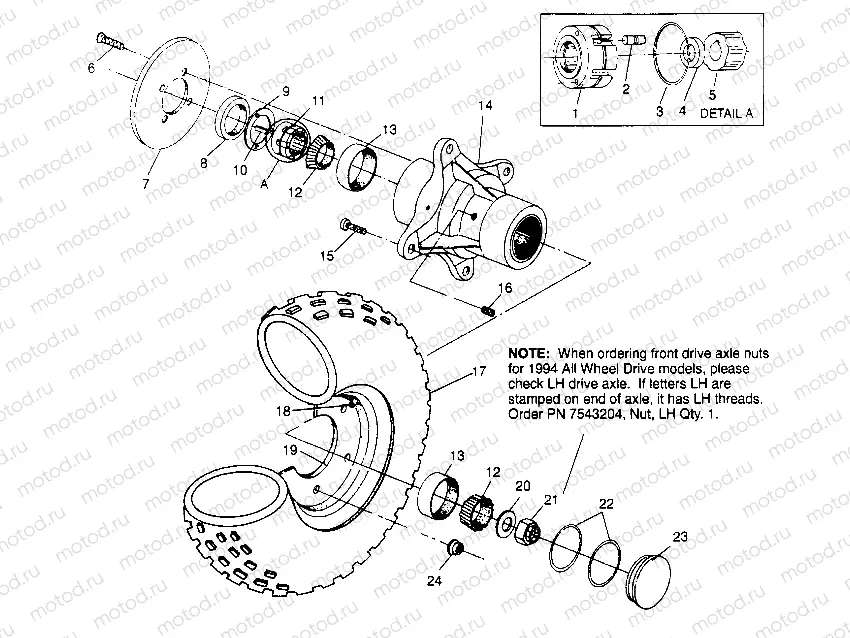

Главная Каталог товаров Polaris EPC 1994 Polaris ATV Polaris 1994 300 4X4 (W948130) Polaris 1994 ATV FRONT WHEEL ASSEMBLY 4x4 300 W948130 (4926762676B005) | FRONT WHEEL ASSEMBLY 4x4 300 W948130 (4926762676B005)

FRONT WHEEL ASSEMBLY 4x4 300 W948130 (4926762676B005) | FRONT WHEEL ASSEMBLY 4x4 300 W948130 (4926762676B005)

FRONT WHEEL ASSEMBLY 4x4 300 W948130 (4926762676B005) | FRONT WHEEL ASSEMBLY 4x4 300 W948130 (4926762676B005)

Например: 3250028

1

3250028

CAGE ROLL

2

3250010

ROLL

3

3250022

SPRING, GARTER

4

3250026

Entretoise

5

3250027

CAM

6

7515321

Vis

7

5211325

DISC BRAKE

8

3610019

SEAL FR. HUB

9

5211148

PLATE ARMATURE

10

7721115

KEY

11

1520190

CLUTCH ASM,F.HUB,ELEC/MECH.

12

3554506

BRG TAPER.ROLL.CONE

13

3554507

BRG TAPER ROLL CUP

14

2202595

KIT-WHEEL HUB ASSMEBLY W/CAP

15

7515523

STUD

16

7052045

PLUG MAGNETIC DRAIN

17

5410480

TIRE,FR(22X8-10)

18

1525017

VALVE RIM

19

1520175-486

RIM FRONT 5.86X10 NR SLVR

20

5211101

Rondelle

21

7543201

NUT RH THREAD

22

5410470

O RING

23

5431368

CAP HUB

24

7542459

Nut
