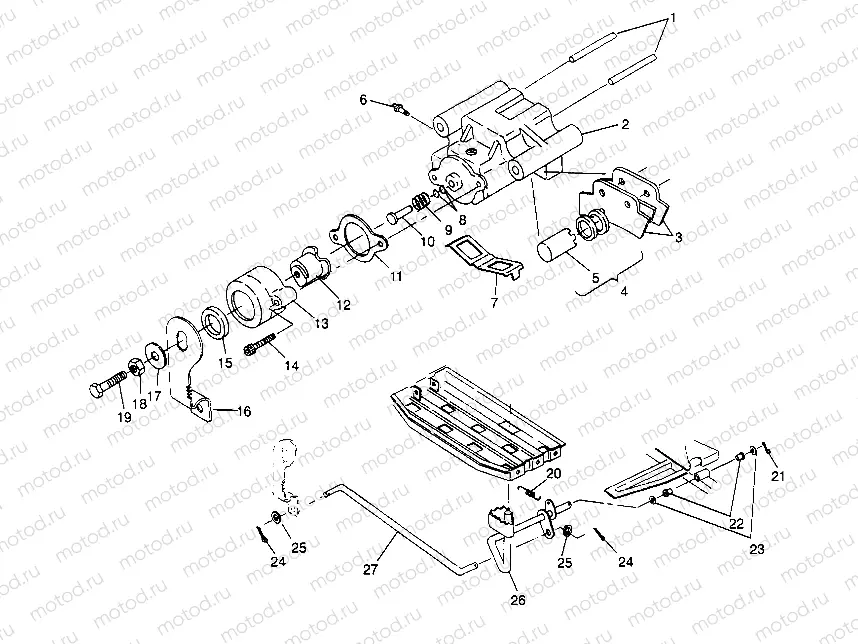

Главная Каталог товаров Polaris EPC 1994 Polaris ATV Polaris 1994 300 4X4 (W948130) Polaris 1994 ATV REAR BRAKE ASSEMBLY 4x4 300 W948130 (4926762676C004) | REAR BRAKE ASSEMBLY 4x4 300 W948130 (4926762676C004)

REAR BRAKE ASSEMBLY 4x4 300 W948130 (4926762676C004) | REAR BRAKE ASSEMBLY 4x4 300 W948130 (4926762676C004)

REAR BRAKE ASSEMBLY 4x4 300 W948130 (4926762676C004) | REAR BRAKE ASSEMBLY 4x4 300 W948130 (4926762676C004)

Например: 7661820

1

7661820

Dowel pin

2

9990005

Crankcase, RH

3

2200464

KIT REAR.BRAKEPAD MED.DUTY

4

2200463

KIT PISTON&SEAL

5

2200463

KIT PISTON&SEAL

6

7080352

SCREW BLEEDER

7

5222232

SPRING,ANTI-RATTLE

8

5411432

O RING

9

7041219

SPRING BRAKE COMP.

10

5020666

PIN,BRAKE CALIPER

11

5830009

GASKET BRAKE

12

9990000

Suspension, Rear

13

9990000

Suspension, Rear

14

7512173

SCREW(10)

15

3610026

SEAL BRAKE

16

5240624

ARM,BRAKE CALIPER

17

7555828

WASHER SPRING

18

7542129

Nut

19

7515145

Vis

20

7042029

Spring

21

7661401

PIN COTTER

22

5431107

BUSHING PEDAL PIVOT

23

7558702

WASHER THRUST

24

7661203

PIN COTTER

25

7555806

WASHER FLAT

26

1910144-067

FOOTBRAKE,BLK.

27

5224531

ROD, BRAKE
