Главная Каталог товаров Polaris EPC 1995 Polaris ATV Polaris 1995 MAGNUM 2X4 (W957544) Polaris 1995 ATV REAR WHEEL DRIVE ASSEMBLY (After Serial #2295881) Magnum 2x4 W957544 (4926852685C004) | REAR WHEEL DRIVE ASSEMBLY (After Serial #2295881) Magnum 2x4 W957544 (4926852685C004)

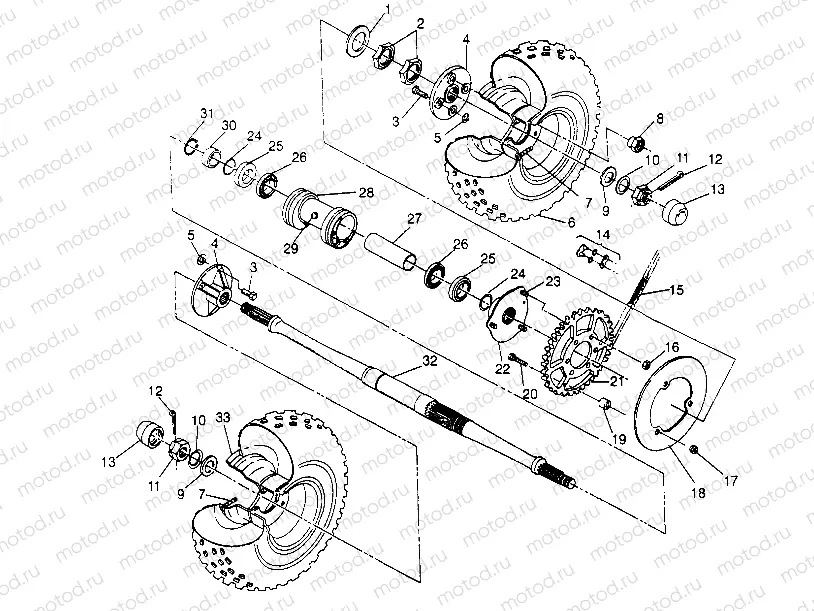

REAR WHEEL DRIVE ASSEMBLY (After Serial #2295881) Magnum 2x4 W957544 (4926852685C004) | REAR WHEEL DRIVE ASSEMBLY (After Serial #2295881) Magnum 2x4 W957544 (4926852685C004)

REAR WHEEL DRIVE ASSEMBLY (After Serial #2295881) Magnum 2x4 W957544 (4926852685C004) | REAR WHEEL DRIVE ASSEMBLY (After Serial #2295881) Magnum 2x4 W957544 (4926852685C004)

Например: 7555764

1

7555764

WASHER(10)

2

5020468

NUT JAM

3

7512673

Vis

4

2200341

KIT MACH.HUB

5

7670081

PUSHNUT BOLT

6

5410479

TIRE,R(24X11-10)

7

1525017

VALVE RIM

8

7542714

Nut

9

7555745

Rondelle

10

7555796

WASHER CONE

11

7543005

NUT CASTLE

12

7661404

PIN COTTER

13

5413427

HUB-DUST COVER

14

3225024

CONNECTOR LINK

15

3221193-086

CHAIN-520 ORD4 O-RING 86 PTCH

16

7542403

NUT LOCK

17

7542439

Nut (SELF-LOCKING)

18

5211585-067

GUARD 38T SPKT BLK.ALUM.

19

5020797

Entretoise

20

7515540

Vis

21

3222109

SPKT 36T R.AXLE

22

1520170

SPROCKET HUB ASM.

23

7515513

STUD 3/8-24X1.12 PRS FIT-Z (10

24

5410415

O RING 1 5/16

25

3610013

SEAL REAR AXLE

26

3515501

BEARING BALL

27

5010204

TUBE BEARING SPACER

28

5130663

HOUSING, AXLE

29

7080306

FITTING LUBE.W/BALL CK.

30

5010206

SPACER BEARING

31

7710405

RING SNAP

32

5020789

AXLE REAR

33

1520183-486

RIM REAR 8.5X10 NR SLVR
