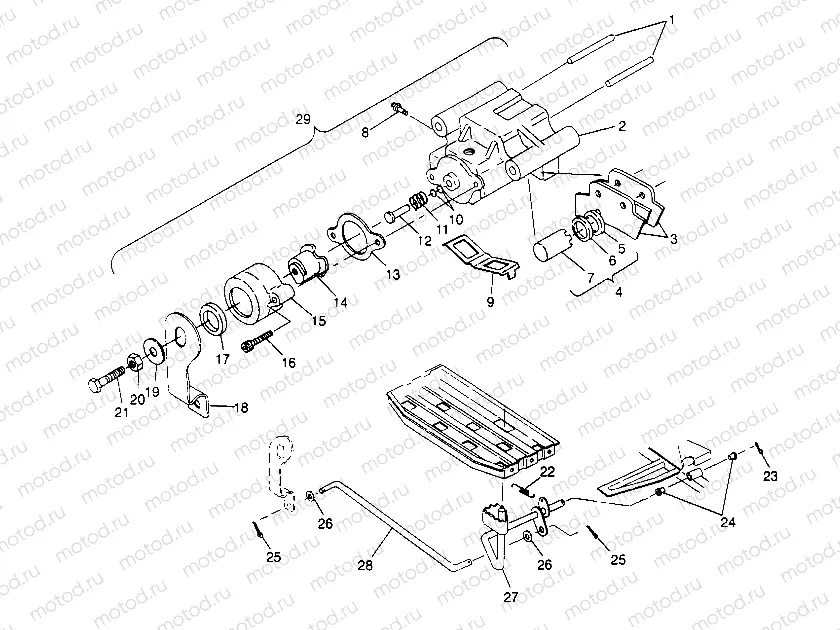

REAR BRAKE ASSEMBLY Magnum 2x4 W957544 (4926852685C002) | REAR BRAKE ASSEMBLY Magnum 2x4 W957544 (4926852685C002)

REAR BRAKE ASSEMBLY Magnum 2x4 W957544 (4926852685C002) | REAR BRAKE ASSEMBLY Magnum 2x4 W957544 (4926852685C002)

Например: 7661820

1

7661820

Dowel pin

2

9990005

Crankcase, RH

3

2200464

KIT REAR.BRAKEPAD MED.DUTY

4

2200463

KIT PISTON&SEAL

5

LR--

CALIPER, BRAKE, RH

8

7080352

SCREW BLEEDER

9

5222232

SPRING,ANTI-RATTLE

10

5411432

O RING

11

7041219

SPRING BRAKE COMP.

12

5020666

PIN,BRAKE CALIPER

13

5830009

GASKET BRAKE

14

9990000

Suspension, Rear

15

9990000

Suspension, Rear

16

7512173

SCREW(10)

17

3610026

SEAL BRAKE

18

5240901

ARM,BRAKE CALIPER

18

5240624

ARM,BRAKE CALIPER

19

7555828

WASHER SPRING

20

7542129

Nut

21

7515145

Vis

22

7042029

Spring

23

7661401

PIN COTTER

24

5431107

BUSHING PEDAL PIVOT

25

7661203

PIN COTTER

26

7555806

WASHER FLAT

27

1910144-067

FOOTBRAKE,BLK.

28

5224531

ROD, BRAKE

29

1910180

CALIPER ASM,R.BRAKE Substituted by 1910224 (Extruded) (Incl. 1-21)
