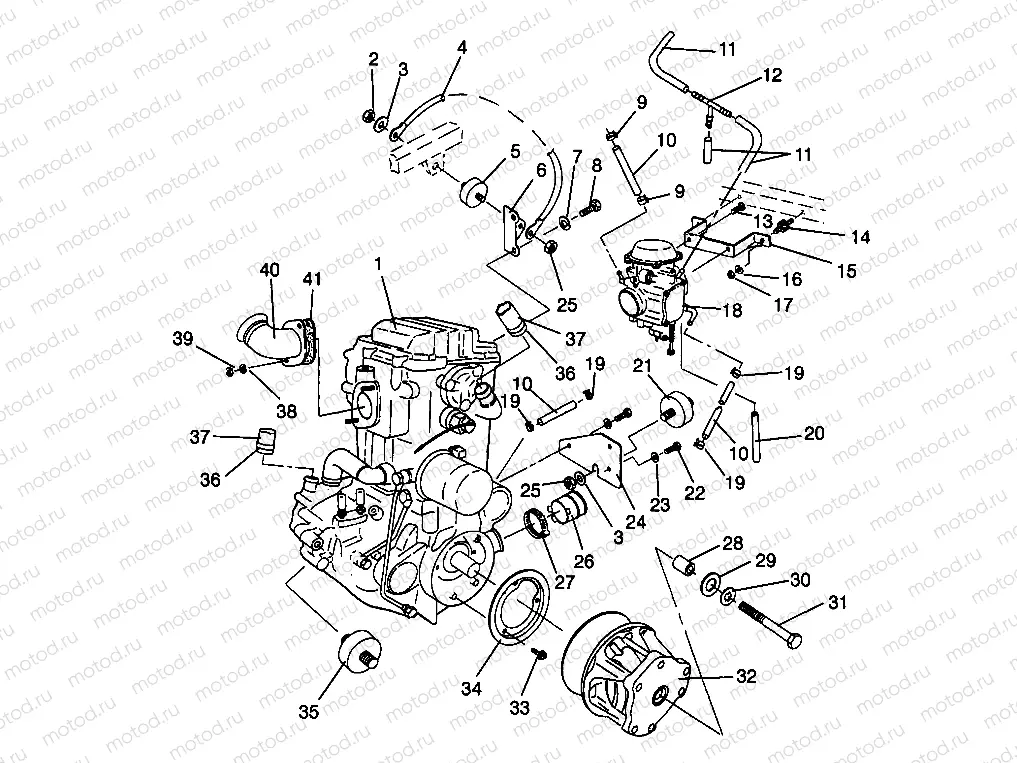

ENGINE MOUNTING Magnum 2x4 W957544 (4926852685A009) | ENGINE MOUNTING Magnum 2x4 W957544 (4926852685A009)

ENGINE MOUNTING Magnum 2x4 W957544 (4926852685A009) | ENGINE MOUNTING Magnum 2x4 W957544 (4926852685A009)

Например: 3085023

1

3085023

ENG.(S.B.)EH42PL-01 [No Longer Available]

2

7542411

NUT FLEXLOC

3

7555801

Rondelle

4

4010067

CABLE,GROUND/ENG.

5

3024012

ISOLATOR-3/8-24M/M 60DURO

6

5240328-067

MOUNT,ENG.TOP, BLK.

7

7552901

Rondelle (Lock)

8

7512315

Vis

9

7080307

CLAMP HOSE

10

8450040-600

LINE FUEL 1/4 ID(600 CM.)

11

8450003-1525

LINE FUEL 1/4 ID(1525 CM.)

12

7052075

FITTING TEE

13

3084205

ASM. SCREW & WASHER

14

3110050

MOUNT CARBURETOR

15

5240609-067

BRKT CARB.MT.

16

7552605

Rondelle

17

7542105

NUT HEX

19

7080003

CLAMP HOSE

20

8360009-600

LINE FUEL 1/8 ID 600 CM.

21

3022074

ISOLATOR-3/8-24M/M 45DURO

22

7512490

Vis

23

7552603

Rondelle (Lock)

24

5211431-067

MT.,SEAL RETAINER,BLK.

25

7542403

NUT LOCK

26

5410421

BOOT CLUTCH INTAKE

27

7080511

CLAMP NARROW BAND

28

5430261

BUSHING

29

5210748

Rondelle

30

7575202

Rondelle (Lock)

31

7512566

Vis

33

LR--

CALIPER, BRAKE, RH

34

5242046

BRKT-CLUTCH SEAL

35

3022072

ISOLATOR-3/8-24M 3/8-16M 60DUR

36

7080547

CLAMP,WORM DRIVE

37

8450050-63

HOSE, WATER Substituted by 8450050-305

38

3080530

Rondelle (Lock)

39

3087199

Nut

40

1260832-489

WELD-MANIFOLD BLK

41

3085075

Exhaust gasket
