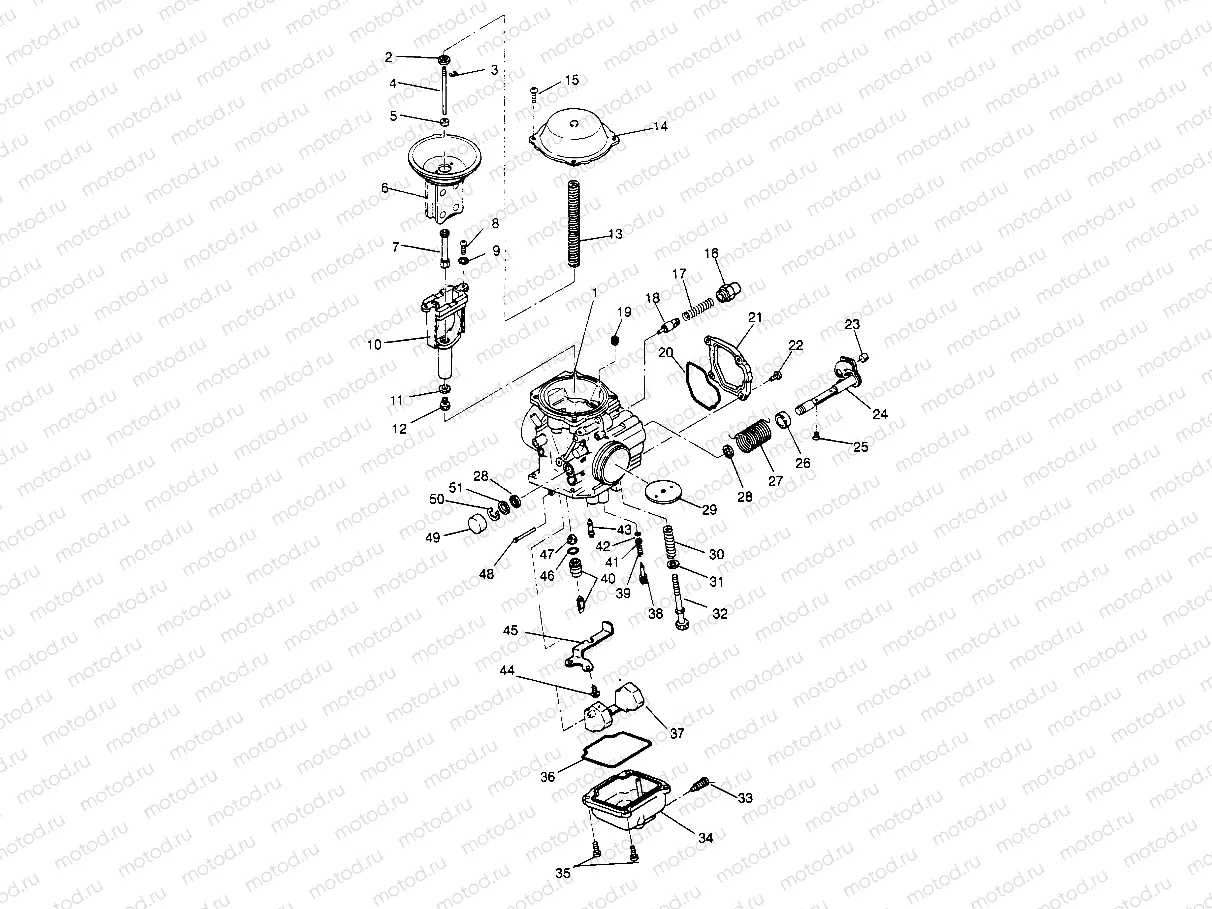

CARBURETOR Magnum 2x4 W957544 (4926852685D004) | CARBURETOR Magnum 2x4 W957544 (4926852685D004)

CARBURETOR Magnum 2x4 W957544 (4926852685D004) | CARBURETOR Magnum 2x4 W957544 (4926852685D004)

Например: 3130724

1

3130724

Carburettor

2

3130507

RING

3

3130508

E-RING

4

3130528

JET NEEDLE(5F81-3)

5

3130752

RING

6

3130506

DIAPHRAGM ASM.

7

3130510

NEEDLE JET (P-8)

8

3130541

Vis

9

3130540

WASHER SPRING

10

3130504

JETBLOCK ASM.

11

3130014

WASHER

12

3130527

MAIN JET #140

13

3130505

Spring

14

3130503

ASM. COVER

15

3130924

Vis

16

3130199

HOLDER GUIDE

17

3130538

Spring

18

3130539

PLUNGER ASM.

19

3130542

JET,AIR,#130 (#130)

20

3130512

O-Ring

21

3130511

Couvrir

22

3130535

Vis

23

3130543

GUIDE CABLE

24

3130513

SHAFT ASM THROTTLE

25

3130501

Vis

26

3130514

RING

27

3130589

Spring

28

3130515

SEAL

29

3130502

VALVE THROTTLE 100

30

3130544

Spring

31

3130545

RING

32

3130546

SCREW ADJ

33

3130521

Vis

34

3130590

FLOATBODY ASM.

35

3130520

Vis

36

3130532

Gasket - float chamber

37

3130529

FLOAT ASM.

38

3130524

ADJUSTER

39

3130525

Spring

40

3131360

VALVE-NEEDLE 1.5(PUSH IN)

41

3130523

Rondelle

42

3130522

O-Ring

43

3130526

JET PILOT #42.5

44

3130591

Vis

45

3130594

PLATE

46

3130533

O-Ring

47

3130534

FILTER

48

3130361

PIN FLOAT

49

3130519

CAP

50

3130518

E-RING

51

LR--

CALIPER, BRAKE, RH
