Главная Каталог товаров Polaris EPC 1995 Polaris ATV Polaris 1995 MAGNUM 2X4 (W957544) Polaris 1995 ATV FRONT WHEEL ASSEMBLY Magnum 2x4 W957544 (4926852685B003) | FRONT WHEEL ASSEMBLY Magnum 2x4 W957544 (4926852685B003)

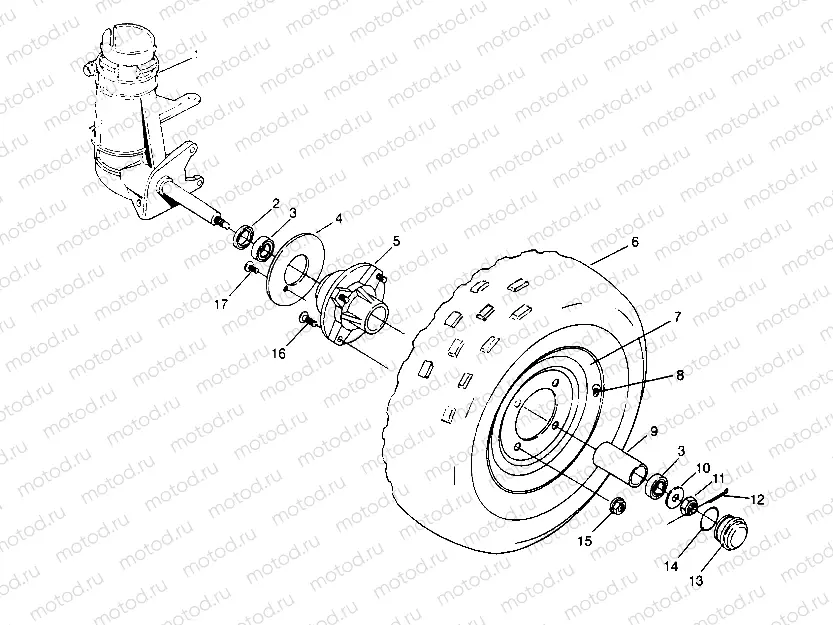

FRONT WHEEL ASSEMBLY Magnum 2x4 W957544 (4926852685B003) | FRONT WHEEL ASSEMBLY Magnum 2x4 W957544 (4926852685B003)

FRONT WHEEL ASSEMBLY Magnum 2x4 W957544 (4926852685B003) | FRONT WHEEL ASSEMBLY Magnum 2x4 W957544 (4926852685B003)

Например: LR--

1

LR--

CALIPER, BRAKE, RH

2

3610020

SEAL FRONT HUB

3

3514001

BEARING BALL

4

5211325

DISC BRAKE

5

1520453

HUB-WHEEL & CAP ASM

6

5410906

TIRE,F(23X7-10) (23x7x10)

7

1520175-486

RIM FRONT 5.86X10 NR SLVR

8

1525017

VALVE RIM

9

5010256

SPACER HUB FRONT

10

7555721

Rondelle

11

7542712

Nut

12

7661407

COTTER PIN

13

5431018

CAP HUB

14

5410470

O RING

15

7542459

Nut

16

7515523

STUD

17

7515321

Vis
