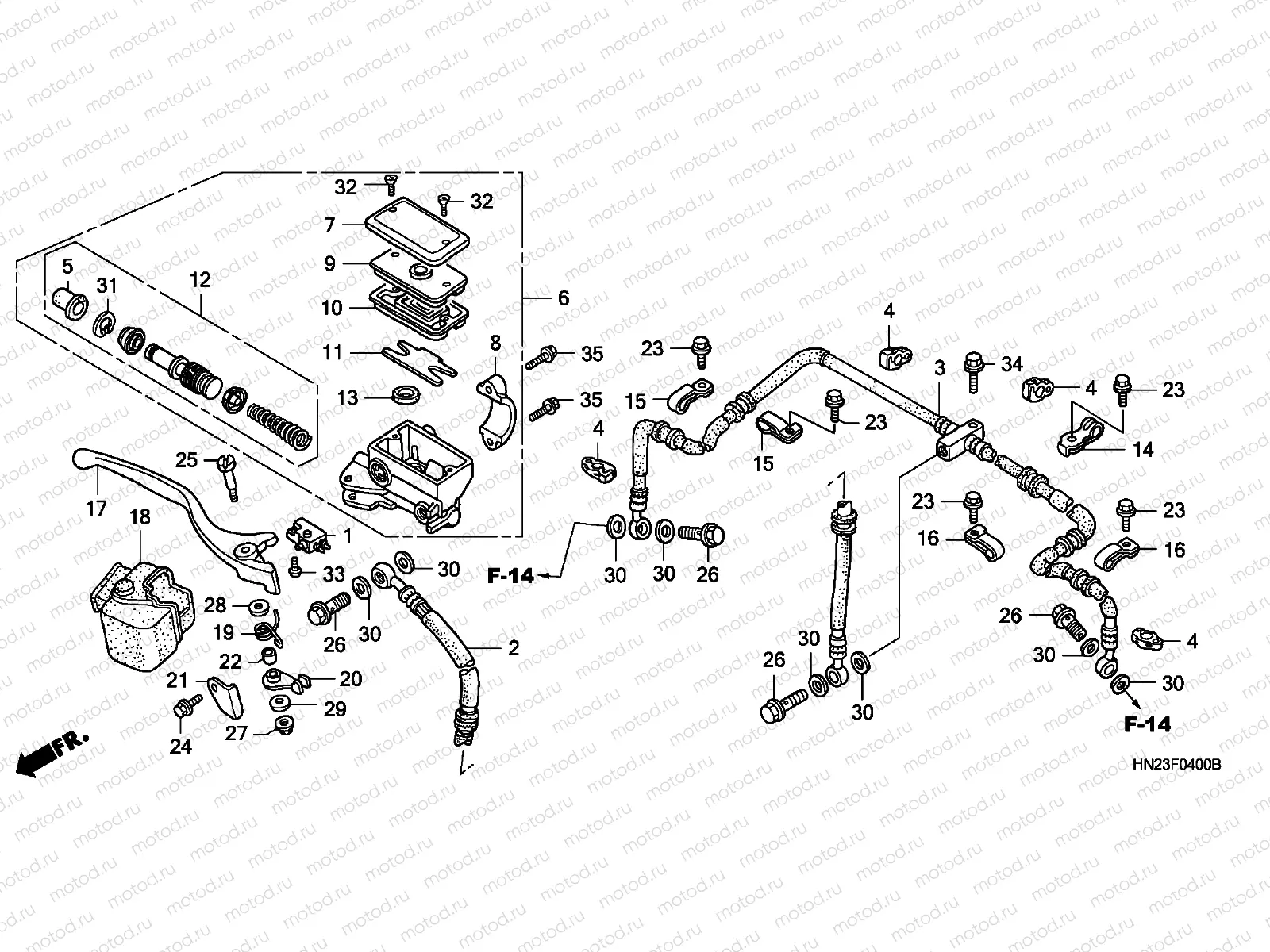

F-4 FR. BRAKE MASTER CYLINDER (TRX500FA1/2/3/4)

F-4 FR. BRAKE MASTER CYLINDER (TRX500FA1/2/3/4)
Например: 35340-ML4-005
1
35340-ML4-005
Commutateur de feu-stop
1 478 ₽/шт
2
45126-HN2-003
OSE COMP AFR BR
3
45127-HN2-003
OSE COMP BFR BR
4
45401-HM5-850
CLIP BRAKE HOSE
5
45504-410-003
BOOT COMP.
771 ₽/шт
6
45510-HN2-006
CYLINDER SUB ASSY., FR. M
7
45513-KE5-026
CAP, MASTER CYLINDER
1 965 ₽/шт
8
45517-MA5-671
HOLDER, MASTER CYLINDER
1 459 ₽/шт
9
45518-MB4-671
PLATE, DIAPHRAGM
849 ₽/шт
10
45520-MA5-672
DIAPHRAGM
1 255 ₽/шт
11
45523-HC5-971
FLOATFR M/C
12
45530-HC5-006
YLINDER SET, MASTER
13
46666-961-013
SEPARATOR COMP.
14
51207-HN2-000
CLAMP A, FR. BRAKE HOSE
15
51208-HM4-850
CLAMP CR FR BRK
16
51209-HM4-850
CLAMP CL FR BRK
17
53175-HN2-003
LEVER COMP., R. HANDLE
18
53176-HN2-006
COVERR HNDL
19
53184-HN2-006
SPGSUB ARM
20
53185-HN2-000
ARM COMPSUB
21
53186-HN2-006
GUARDSUB ARM HND
22
53187-HN2-000
COLLARSUB ARM
23
90107-HC5-000
Vis
24
90112-GW3-000
Vis
204 ₽/шт
25
90114-HN2-000
BOLTHANDLE LEVER
26
90145-MS9-612
BOLT, OIL, 10X22 (SAGA)
726 ₽/шт
27
90301-473-003
Nut
456 ₽/шт
28
90474-704-000
Rondelle
29
90530-751-000
WASHER6X15
30
90545-300-000
Rondelle
291 ₽/шт
31
90651-MA5-671
CIRCLIP
275 ₽/шт
32
93600-040-120G
ВИНТ
39 ₽/шт
33
93893-040-1407
Screw-washer
55 ₽/шт
34
95701-060-2507
БОЛТ
66 ₽/шт
35
96001-060-2207
Болт
96 ₽/шт
