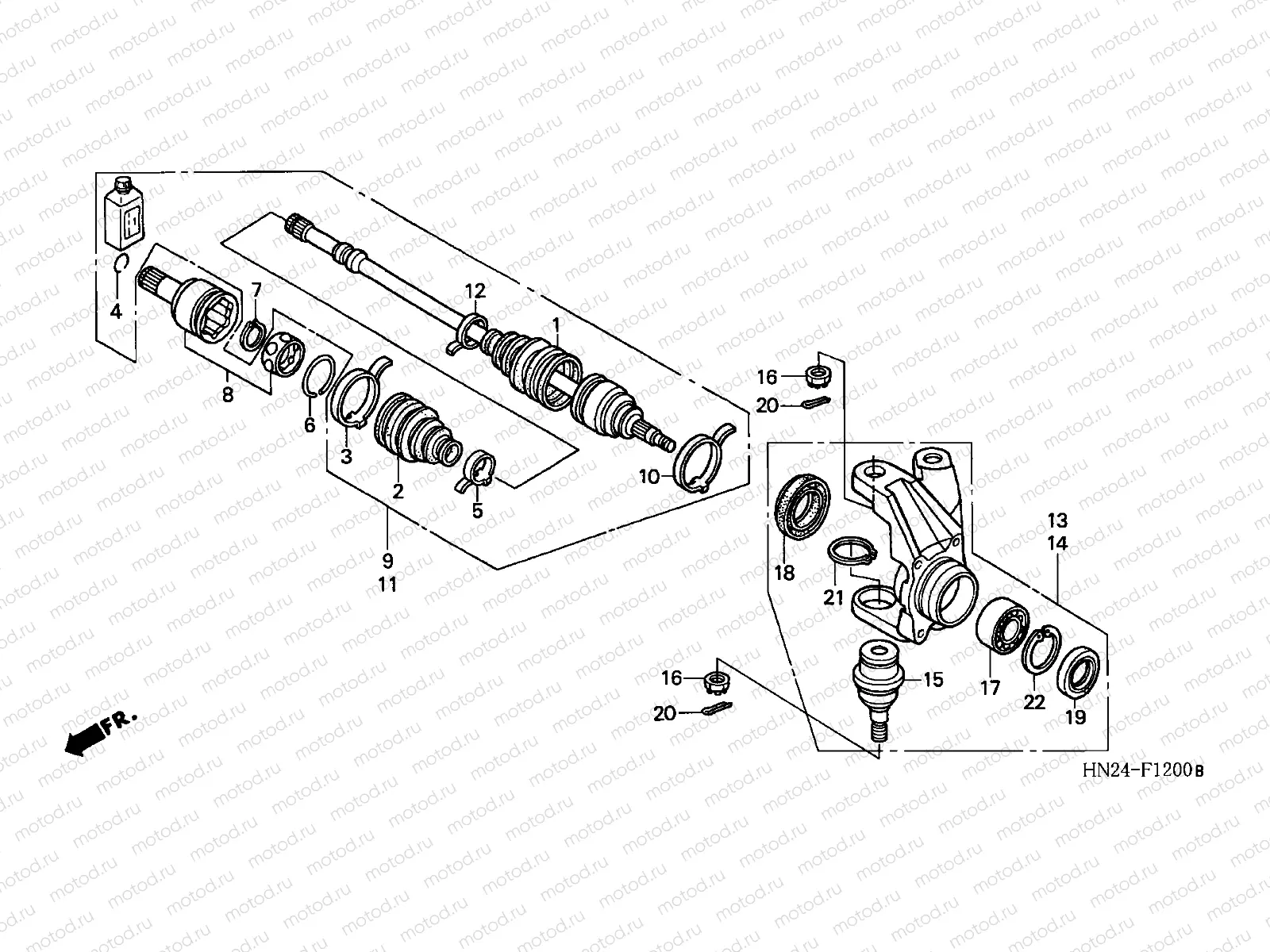

F-12 KNUCKLE (TRX500FA1/2/3/4)

F-12 KNUCKLE (TRX500FA1/2/3/4)
Например: 42202-HN2-003
1
42202-HN2-003
BOOT, OUTBOARD
2
42203-HM7-003
BOOT, INBOARD
3
42205-HM7-003
BAND B
4
42206-HA7-671
RING, SNAP
5
42206-HC5-003
BAND C
6
42206-HM7-003
RING, SNAP
7
42209-HC5-003
IRCLIP
8
42220-HN0-A01
JOINT COMP., INBOARD
9
42250-HN2-013
SHAFT COMP SET R
10
42336-SN4-003
BAND, OUTBOARD BOOT
11
42350-HN2-003
SHAFT COMP., L.
12
44318-SJ7-003
BAND, SHAFT BOOT
13
51200-HN2-000
KNUCKLE ASSY., R.
14
51250-HN2-000
KNUCKLE ASSYL
15
51375-HP5-601
JOINT A, ARM BALL
16
90310-HB9-000
NUT, CASTLE, 12MM
385 ₽/шт
17
91051-HA7-651
BEARING, ANGULAR BALL, 30
18
91209-HN2-003
DUST SEAL, 40X58X7
19
91256-HM7-003
DUST SEAL, 38X55X6 (ARAI)
20
94201-30180
PIN, SPLIT, 3.0X18
39 ₽/шт
21
94514-34000
CIRCLIP, EXTERNAL, 34MM
22
94520-55000
Seeger (55mm)
