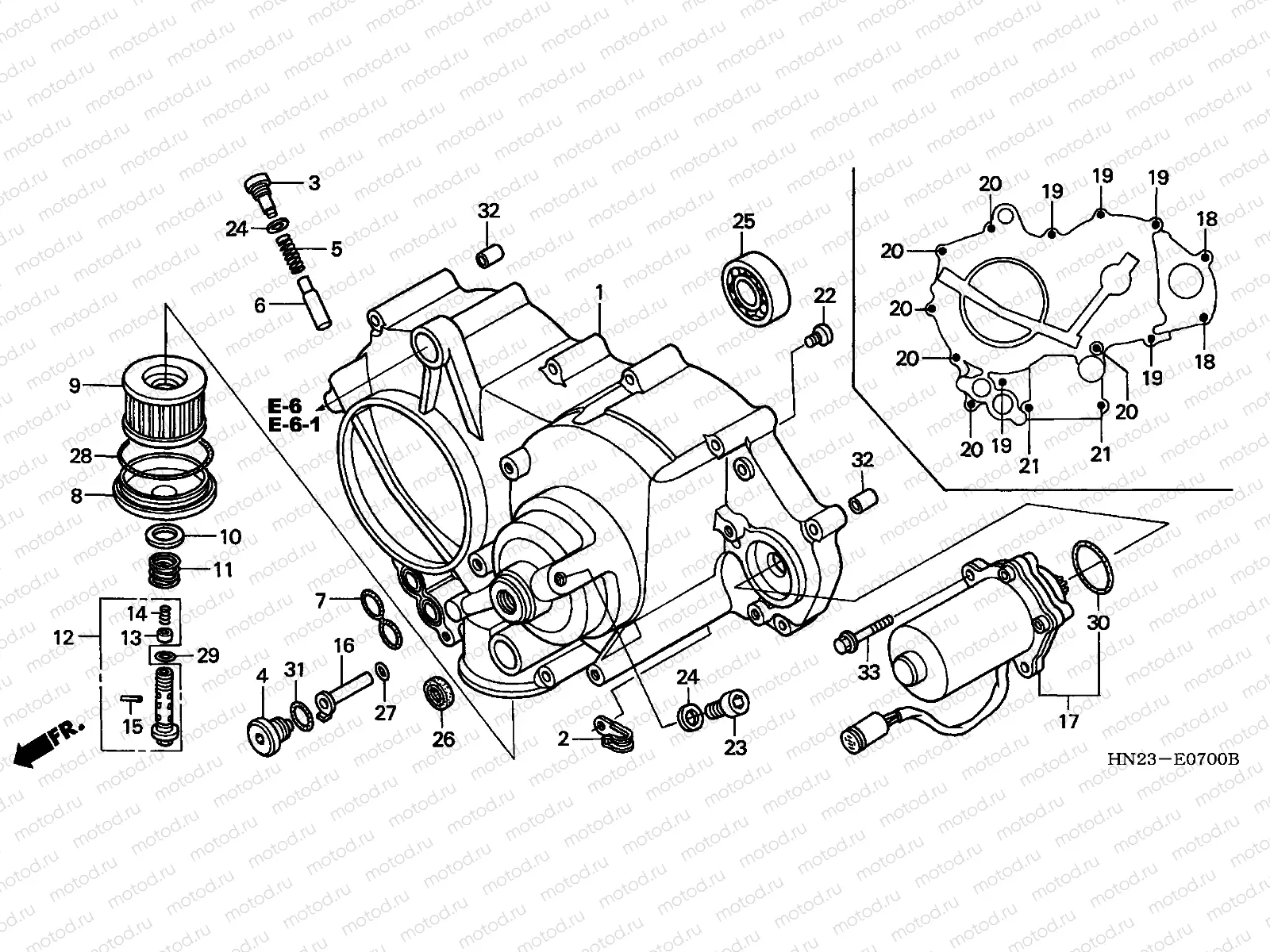

E-7 FRONT CRANKCASE COVER

E-7 FRONT CRANKCASE COVER
Например: 11330-HN2-000
1
11330-HN2-000
COVER COMP., FR. CRANKCAS
2
11333-HN2-000
CLAMP CONTROL MOT
3
11334-HN2-000
BOLT, VALVE SETTING
4
11335-HN2-000
BOLTFEED PIPE SE
916 ₽/шт
5
11336-HN2-000
SPRING, ORIFICE VALVE (PI
6
11337-HN2-000
VALVE, RELIEF
7
15152-HN2-000
SEAL, RUBBER
579 ₽/шт
8
15411-HN2-000
COVEROIL FILTER
9
15412-KEA-003
Filtre à huile
10
15414-300-000
IS REPLACED BY 15414300000
252 ₽/шт
11
15415-413-000
SPRING, FILTER ELEMENT SE
315 ₽/шт
12
15420-HN2-000
BOLT COMP., OIL FILTER CE
13
15473-300-300
VALVE, CHECK
519 ₽/шт
14
15474-300-310
SPRING, CHECK VALVE
519 ₽/шт
15
15477-300-300
PIN, SPRING SETTING
425 ₽/шт
16
26631-HN2-000
PIPE COMP.FEED
965 ₽/шт
17
31300-HN2-003
MOTOR ASSY., CONTROL
18
90004-GHB-690
Vis
212 ₽/шт
19
90004-GHB-730
Vis
272 ₽/шт
20
90004-GHB-780
Vis
338 ₽/шт
21
90004-GHB-820
Vis
291 ₽/шт
22
90083-PL3-000
BOLT, SEALING, 10MM
280 ₽/шт
23
90101-VD6-003
BOLT, SPECIAL, 10X13
24
90545-300-000
Rondelle
291 ₽/шт
25
91009-HA0-004
Roulement
1 571 ₽/шт
26
91204-KE8-003
Joint
437 ₽/шт
27
91301-PC9-003
O-Ring
173 ₽/шт
28
91301-107-000
O-Ring
450 ₽/шт
29
91302-377-000
O-Ring
550 ₽/шт
30
91351-HM8-A51
O-RING, CONTROL MOTOR
462 ₽/шт
31
91355-MB0-003
O-Ring
305 ₽/шт
32
94301-08140
Dowel pin (8x14)
94 ₽/шт
33
95701-060-2200
Bolt, flange, 6x22
69 ₽/шт
