Главная Каталог товаров HONDA EPC 350 cm³ - 699 cm³ HONDA TRX 500 Fourtrax Foreman HONDA TRX500FA3 U / KPH (TRX500FA3) 2003 HONDA (VIN: 478TE262) E-21 CARBURETOR

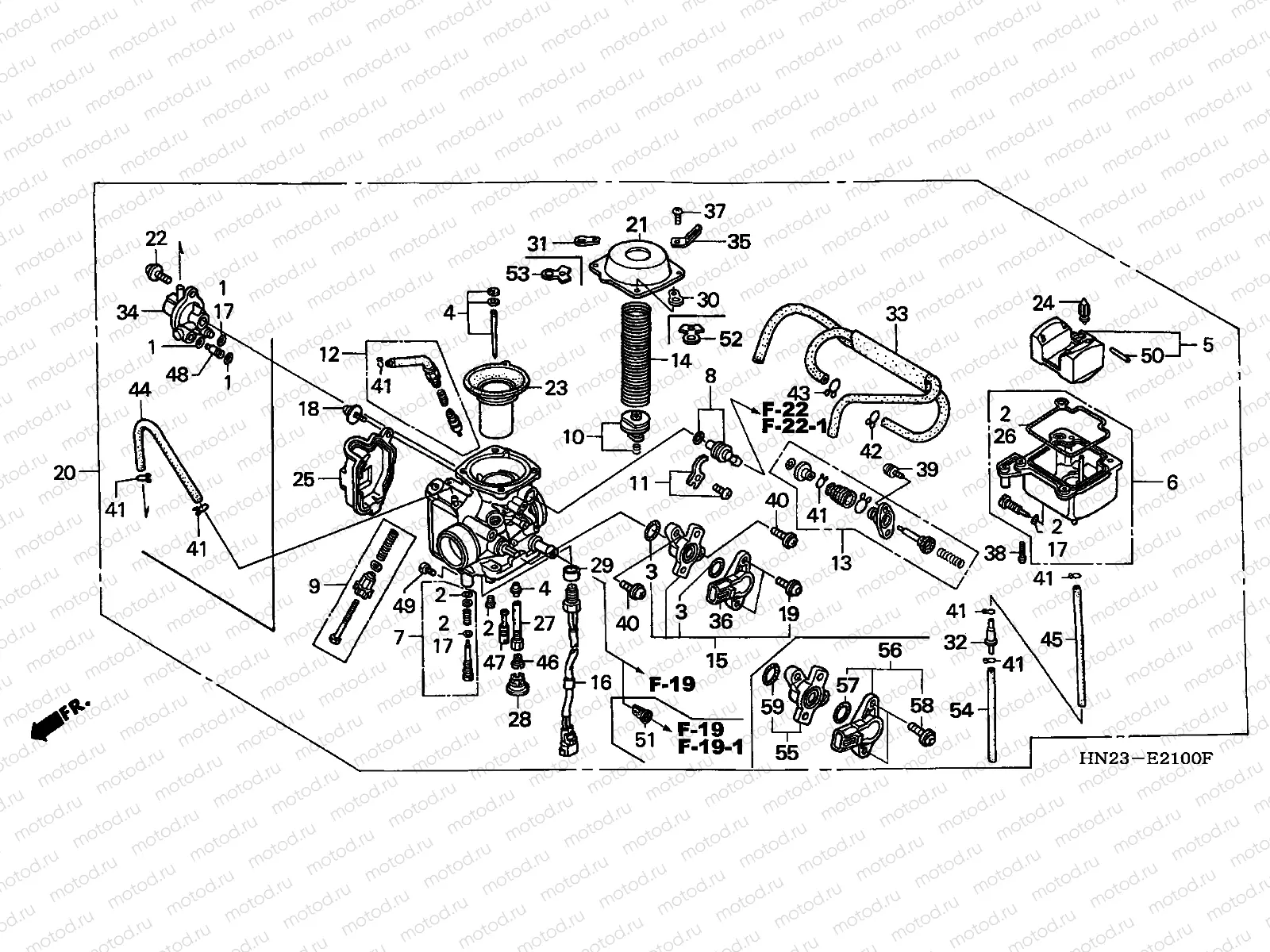

E-21 CARBURETOR

E-21 CARBURETOR
Например: 16041-MZ5-600
1
16041-MZ5-600
GASKET SET C
1 164 ₽/шт
2
16010-HM7-700
GASKET SET
3
16010-HN2-003
GASKET SET
4
16012-HN2-003
EEDLE SET, JET
5
16013-HN5-671
FLOAT SET
3 945 ₽/шт
6
16015-HN2-003
CHAMBER SETFLOAT
7
16016-HM7-670
Jeu de vis
8
16026-MR1-004
JOINT SET
2 471 ₽/шт
9
16028-HM5-730
Jeu de vis
1 258 ₽/шт
10
16037-HN2-003
PLATE SET, VALVE
11
16038-HN8-003
PLATE SET, STAY
785 ₽/шт
12
16046-HN2-003
VALVE COMP., STARTER
13
16048-HN7-003
PUMP SET
14
16050-MBH-670
SPRING, COMPRESSION COIL
15
16060-HN2-003
SPACER SETTHROTT
16
16070-HN5-672
EATER ASSY.
17
16075-GHB-640
O-Ring
189 ₽/шт
18
16080-HC0-003
Vis
19
16080-MT7-000
SCREW, TORX, 5X16
244 ₽/шт
20
16100-HN2-652
Carburettor
21
16107-HN2-003
TOP COMP
22
16108-MW0-750
Vis
345 ₽/шт
23
16111-HN2-003
PISTON COMP., VACUUM
24
16155-HN7-003
VALVE COMP., FLOAT
2 615 ₽/шт
25
16157-HN8-003
COVER, BODY
26
16163-HM7-700
Gasket - float chamber
769 ₽/шт
27
16165-HN2-003
OLDERNEEDLE JET
28
16168-HC4-003
OLDER, JET
29
16172-HN0-A00
COLLAR, SETTING
30
16179-HA0-003
BINDER
1 024 ₽/шт
31
16179-428-671
BINDER
32
16180-HC4-003
VALVE COMP., ONE WAY
33
16196-HN2-003
TUBE COMPAIR VEN
34
16510-MBW-601
VALVE ASSY., AIR CUT
35
17191-MN5-740
CLIP, PLATE
36
37890-H09-J02
SENSOR ASSY,THROT
37
93500-040-080H
Болт
44 ₽/шт
38
93500-040-140H
Болт
39 ₽/шт
39
93892-040-1208
Screw-washer
52 ₽/шт
40
93892-050-1408
Screw-washer
50 ₽/шт
41
95002-02079
Collier
50 ₽/шт
42
95002-02089
Collier
47 ₽/шт
43
95002-02659
Collier (B6.5)
50 ₽/шт
44
95005-351-4020
Tube, 3.5x140 (95005-35001-20m)
94 ₽/шт
45
95005-351-4050
TUBE3.5X140
46
99101-HN2-1580
Jet, main (#158)
566 ₽/шт
46
99101-GHB-1520
Jet, main (#152)
566 ₽/шт
47
99104-KPF-0450
Jet,slow #45
692 ₽/шт
48
99108-MW0-1002
Jet, slow air (#100)
535 ₽/шт
49
99112-HN2-0850
JET, #85
50
16152-HN8-003
PIN, ARM
353 ₽/шт
51
16176-MW3-A80
Filtre à carburant
944 ₽/шт
52
16178-HP0-A01
BINDER
53
16179-HP0-A01
BINDER
54
95005-351-4050
TUBE3.5X140
55
16060-HN2-A21
SPACER SET, THROTTLE SENS
56
16061-HP0-A02
THROTTLE SENSORSE
57
16075-HN2-A21
O-Ring
58
16083-HP0-A01
BOLTBRAKE HEAD
721 ₽/шт
59
91304-PT0-000
O-RING, 14.8X1.9
