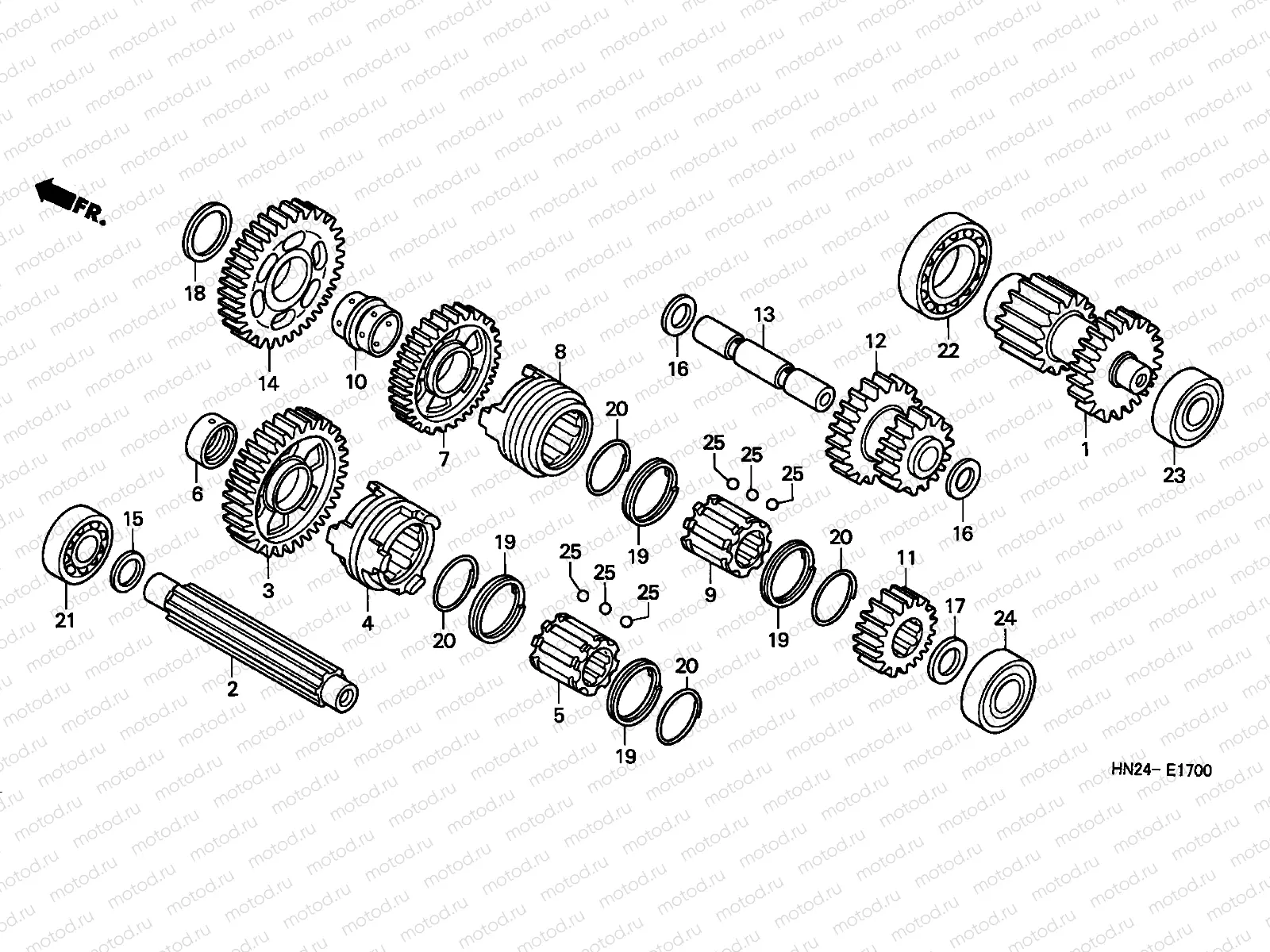

E-17 TRANSMISSION

E-17 TRANSMISSION
Например: 23211-HN2-000
1
23211-HN2-000
SHAFTMAIN TRANS
2
23221-HN2-000
SHAFTCOUNTER
3
23411-HN2-000
GEAR, LOW (45T)
4
23412-HN2-000
SHIFTER, REVERSE COUNTERS
5
23413-HN2-000
COLLARRVS LOW SH
6
23414-HA0-000
BUSH, SPLINE, 25MM
1 546 ₽/шт
7
23431-HN2-000
GEAR, HIGH (38T)
8
23432-HN2-000
SHIFTER, GEAR (HIGH)
9
23433-HN2-000
COLLARHIGH SHIFT
10
23454-HN2-000
BUSH, REVERSE GEAR (HIGH)
11
23621-HM7-000
GEAR, FINAL DRIVE (20T)
12
23721-HN2-000
GEARRVS IDLE
13
23731-HN2-000
SHAFTRVS IDLE
14
23751-HN2-000
GEARC-RVS
15
90451-HM7-000
WASHER, SPECIAL, 20MM
16
90451-115-000
WASHER, 14.2MM (14,2mm)
330 ₽/шт
17
90454-751-000
WASHER, THRUST, 20MM
18
90459-357-000
WASHER C, THRUST, 25MM
409 ₽/шт
19
90613-969-003
RING, INTERNAL DOUBLE COI
20
90616-969-000
CLIP, 32.5MM
21
91001-GM4-033
BEARING, SPECIAL RADIAL B
1 552 ₽/шт
22
91003-HN2-004
BEARING, RADIAL BALL, 600
23
91006-HN2-003
BEARING, RADIAL BALL (620
24
91011-HN2-004
Roulement
1 481 ₽/шт
25
96211-07000
BALL, STEEL, #7 (7/32)
16 ₽/шт
