Главная Каталог товаров HONDA EPC 125 cm³ - 349 cm³ HONDA ANF 125 Innova HONDA ANF125MSH4 NF125MSH 2004 HONDA F-22 SUPPORT

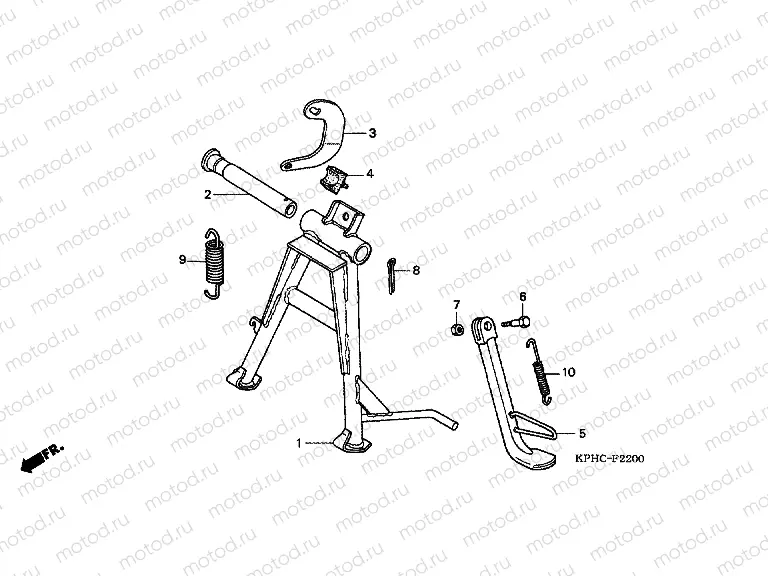

F-22 SUPPORT

F-22 SUPPORT
Например: 5050A-KPH-C00
1
5050A-KPH-C00
STAND COMPMAIN
2
50512-KPH-900
SHAFT, RR. BRAKE PIVOT
3
50523-KPH-C00
OOKMAIN STAND S
4
50524-397-000
RUBBER, STAND STOPPER
409 ₽/шт
5
50530-KPH-C00
Béquille latérale
6
90108-223-000
SCREW,STAND PIVOT
566 ₽/шт
7
94002-100-000S
Гайка
58 ₽/шт
8
94201-30250
PIN, SPLIT, 3.0X25
47 ₽/шт
9
95014-71102
SPRING A, MAIN STAND
173 ₽/шт
10
95014-72102
SPRING A, SIDE STAND
173 ₽/шт
