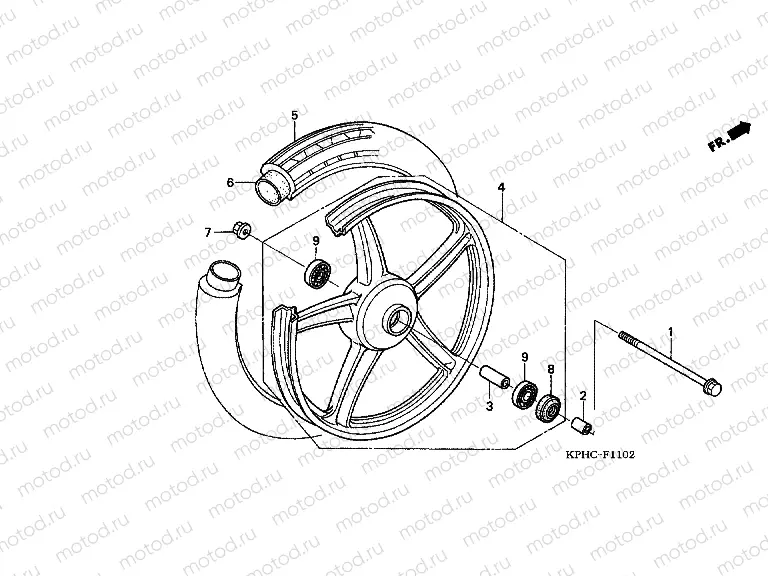

F-11-2 FRONT WHEEL (3CH)

F-11-2 FRONT WHEEL (3CH)
Например: 44301-KVR-750
1
44301-KVR-750
Front wheel axle (Front)
2
44311-KRS-830
Entretoise (Front wheel)
3
44620-KRS-830
Entretoise
4
44650-KPH-C20
(C)WHEEL SUB ASSY (Front)
5
44711-KPH-W30
(C)TIREFR
6
44712-KPH-W30
(C)TUBETIRE
7
90307-KRF-S00
Nut (spec. 12mm)
8
90755-KRS-830
Joint
9
96140-630-1010
BEARING, RADIAL BALL, 630
