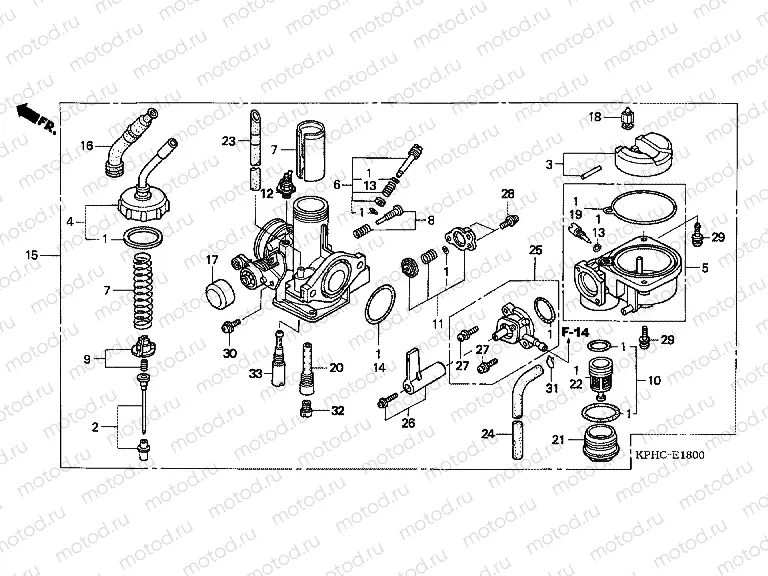

E-18 CARBURETOR

E-18 CARBURETOR
Например: 16010-KPH-W01
1
16010-KPH-W01
GASKET SET
2
16012-KPH-W00
NEEDLE SETJET
3
16013-KPH-W00
FLOAT SET
4
16014-KPH-W00
TOP SET
5
16015-KPH-W01
CHAMBER SETFLOAT
6
16016-KPH-W00
Jeu de vis
7
16022-KPH-W00
VALVE SETTHROTTL
8
16028-KPH-W00
Jeu de vis
9
16037-KPH-W00
LATE SETVALVE
10
16040-KPH-W00
GASKET SET
11
16048-KPH-W00
VALVE SETAIR CUT
12
16070-KPH-W01
EATER ASSY
13
16075-KPH-W00
O-Ring
14
16076-KPH-W00
O-Ring
15
16100-KPH-W03
CARBURETOR ASSY.
16
16118-KPH-W00
CAPCABLE SEALING
17
16148-KPH-W00
CAPCHOKE DUST
18
16155-KPH-W00
VALVE COMPFLOAT
19
16163-KPH-W01
Gasket - float chamber
20
16165-KPH-W00
OLDERNEEDLE JET
21
16175-KPH-W00
CUPFUEL STRAINER
22
16176-KPH-W00
Filtre à carburant
23
16198-KPH-W00
TUBEAIR VENT
24
16199-KPH-W00
TUBEOVERFLOW
25
16951-KPH-W00
COCK BODY SET
26
16963-KPH-W00
LEVER SETCOCK
27
93892-030-121H
SCREW WASH 3X12
28
93892-040-1000
Screw-washer (4x10)
47 ₽/шт
29
93892-040-1408
Screw-washer
52 ₽/шт
30
93892-050-1018
Screw-washer
47 ₽/шт
31
95002-02659
Collier (B6.5)
50 ₽/шт
32
99101-KPH-0750
Jet principal (75)
33
99103-KPH-0350
Idle jet (35)
