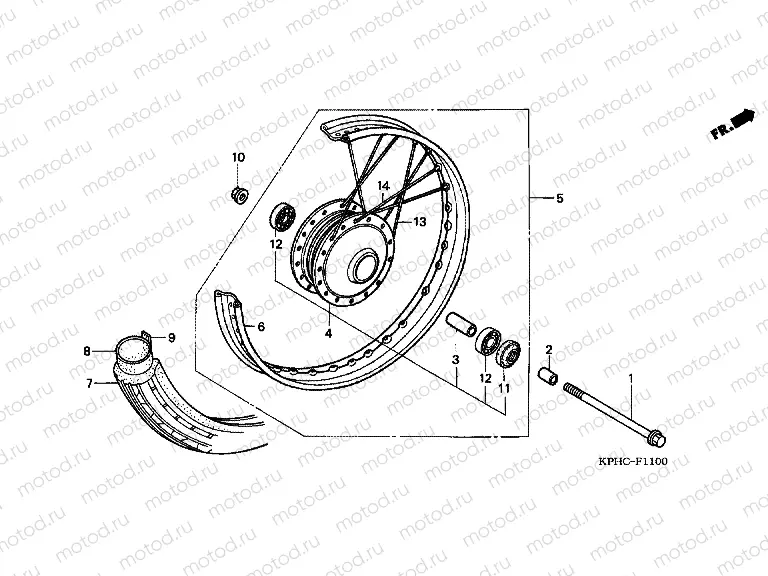

F-11 FRONT WHEEL (CH)

F-11 FRONT WHEEL (CH)
Например: 44301-KVR-750
1
44301-KVR-750
Front wheel axle (Front)
2
44311-KRS-830
Entretoise (Front wheel)
3
44620-KRS-830
Entretoise
4
44635-KRS-830
(C)HUB SUB ASSYF
5
44650-KPH-C00
(C)WHEEL SUB ASSY (Front)
6
44701-KPH-C00
RIMFR WHEEL
7
44711-KPH-W30
(C)TIREFR
8
44712-KPH-W30
(C)TUBETIRE
9
44713-KPH-W30
(C)FLAPTIRE
10
90307-KRF-S00
Nut (spec. 12mm)
11
90755-KRS-830
Joint
12
96140-630-1010
BEARING, RADIAL BALL, 630
13
97258-311-60K0
SPOKE SET.A11X160
14
97574-311-5710
SPOKE SET.A11X158
