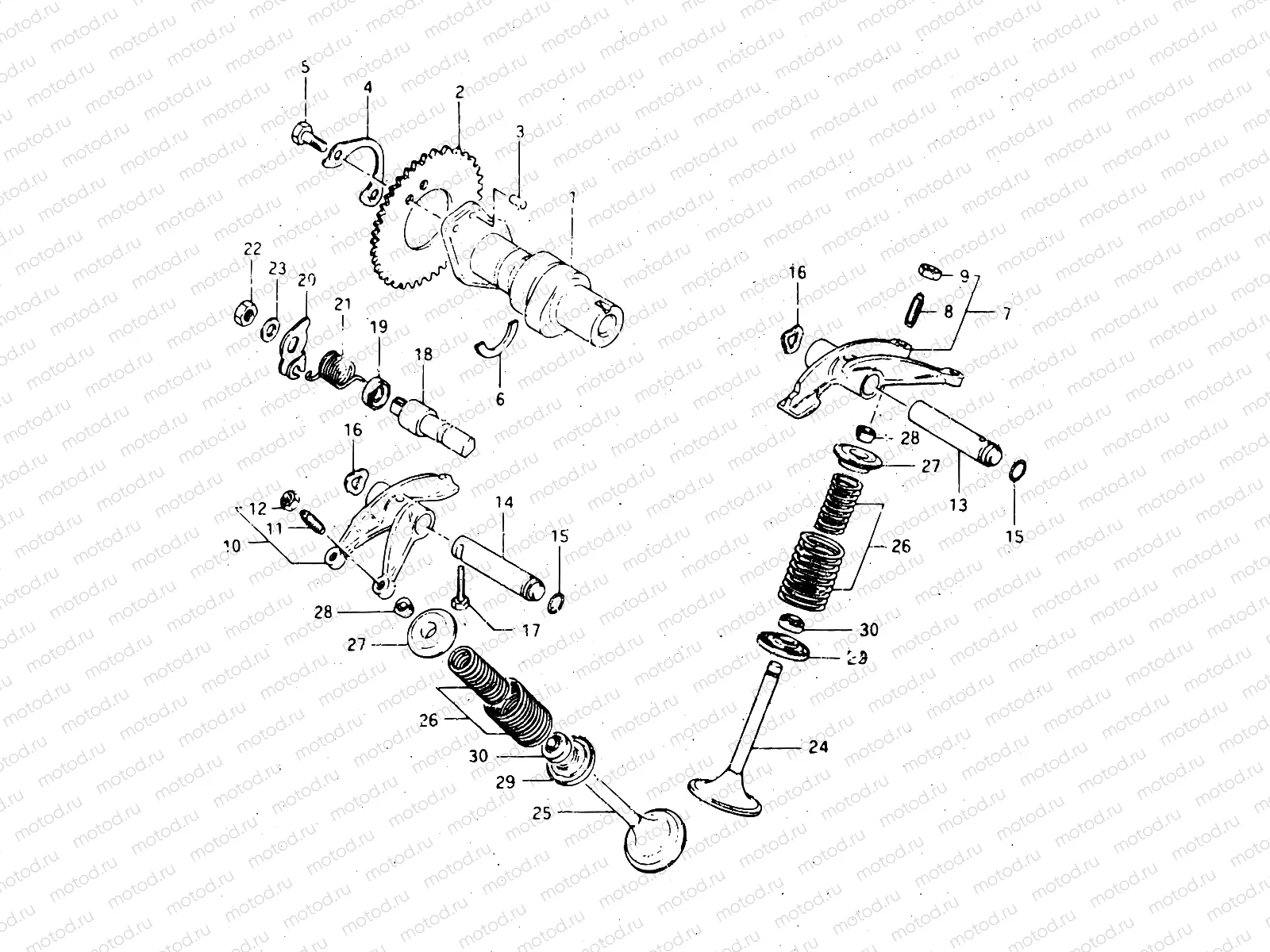

8 - CAM SHAFT - VALVE

8 - CAM SHAFT - VALVE
Например: 12711-37400
1
12711-37400
Camshaft
1
12711-37410
Cam shaft (mark:3741)
2
12741-37400
Звезда коленвала
2 805 ₽/шт
3
04221-05109
ШПОНКА РАСПРЕДВАЛА
85 ₽/шт
4
12747-44001
Шайба
258 ₽/шт
5
09111-06027
BOLT(6X12.5)
900 ₽/шт
6
09390-25003
C RING
210 ₽/шт
7
12840-07F00
ARM,INTAKE VALVE ROCKER
12 325 ₽/шт
8
12842-32411
Винт
510 ₽/шт
9
12843-32400
Гайка
170 ₽/шт
10
12850-37401
ARM,VALVE ROCKER EXHAUST
9 071 ₽/шт
11
12842-32411
Винт
510 ₽/шт
12
12843-32400
Гайка
170 ₽/шт
13
12861-37401
Shaft, rocker arm in
14
12871-37401
Shaft, rocker arm ex
15
09280-09005
КОЛЬЦО УПЛОТНИТЕЛЬНОЕ (D:1.9,ID:8.6)
170 ₽/шт
16
09164-12018
Шайба
102 ₽/шт
17
09100-06009
Болт
129 ₽/шт
18
12941-37103
SHAFT,DECOMP LH
5 279 ₽/шт
19
09282-10014
Сальник
485 ₽/шт
20
12942-37101
Lever,decomp sh
21
09448-17014
SPRING
2 070 ₽/шт
22
09140-08021
Гайка
1 490 ₽/шт
23
08322-0108A
Шайба
85 ₽/шт
24
12911-37400
Valve (IN)
25
12912-37400
Клапан, выпуска
5 709 ₽/шт
26
12920-37402
SPRING SET,VALVE
899 ₽/шт
27
12931-45001
RETAINER,VALVE SPRING
422 ₽/шт
28
12932-45010
Сухарь
170 ₽/шт
29
12933-37401
Seat,valve Spring
352 ₽/шт
30
09289-07002
Маслосъемный колпачок
791 ₽/шт
