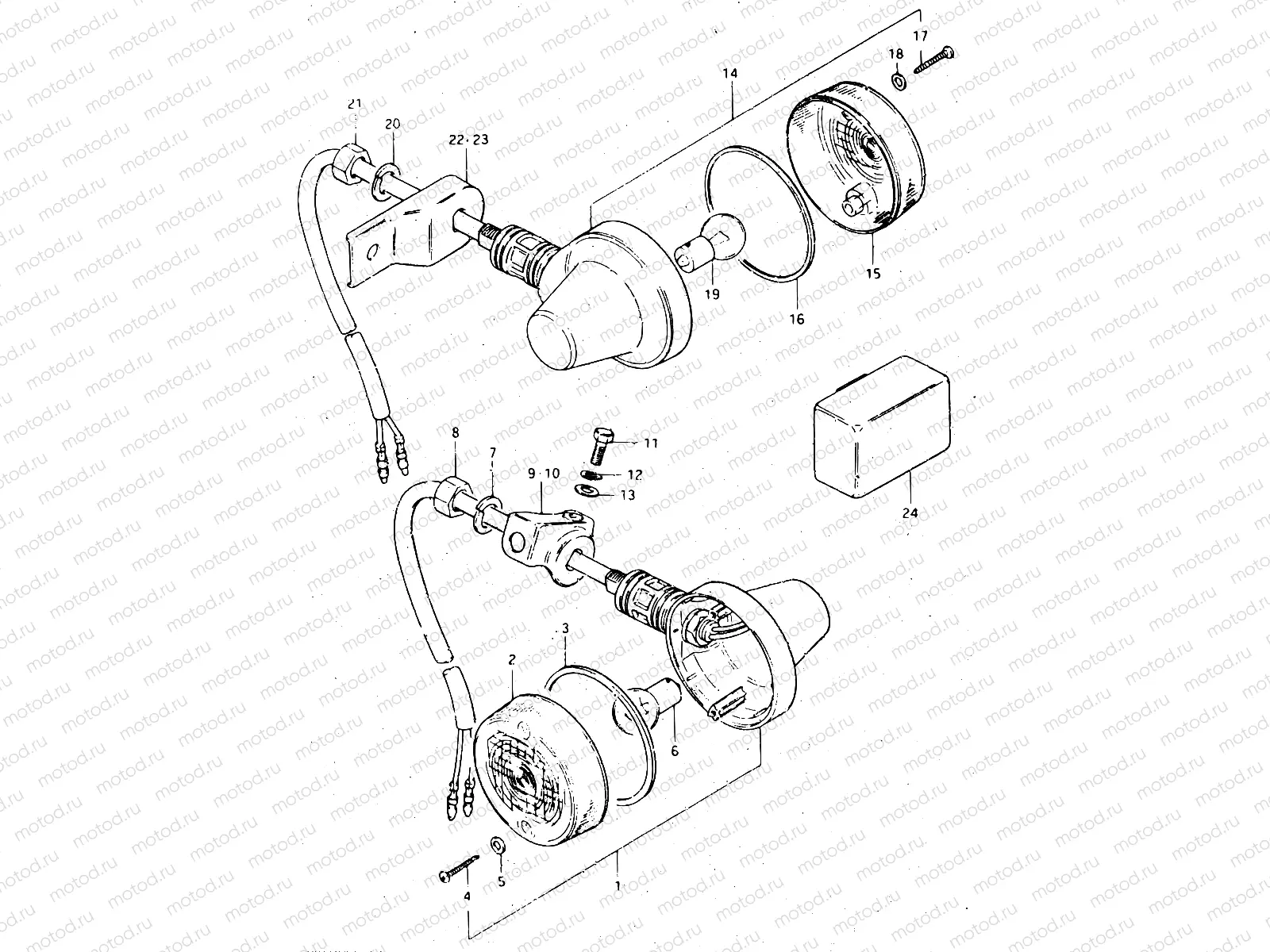

31 - TURN SIGNAL LAMP (E04, E21, E25, E34)

31 - TURN SIGNAL LAMP (E04, E21, E25, E34)
Например: 35603-48521-999
1
35603-48521-999
Lamp assy,rr tu
2
35612-01A70
Линза
2 295 ₽/шт
3
35613-28620
Прокладка
239 ₽/шт
4
03211-0425B
Болт
82 ₽/шт
5
35627-43010
GASKET
179 ₽/шт
6
09471-06023
Bulb (6v,10w)
7
08321-0112A
Пружинная шайба
81 ₽/шт
8
08310-0012A
Гайка
81 ₽/шт
9
51251-29900-291
BRACKET,TURNSIGNAL LAMP,R
680 ₽/шт
10
51252-29900-291
BRACKET,TURNSIGNAL LAMP,L
823 ₽/шт
11
01500-06127
Болт
81 ₽/шт
12
08321-01067
Шайба, стопорная
81 ₽/шт
13
08322-0106A
Шайба
81 ₽/шт
14
35603-48521-999
Lamp assy,rr tu
15
35612-48330
.lens
16
35613-28620
Прокладка
239 ₽/шт
17
03211-0425B
Болт
82 ₽/шт
18
35627-43010
GASKET
179 ₽/шт
19
09471-06023
Bulb (6v,10w)
20
08321-0112A
Пружинная шайба
81 ₽/шт
21
08310-0012A
Гайка
81 ₽/шт
22
35620-37400
Bracket, rear rh
23
35640-37400
Bracket, rear lh
24
38610-39X50
