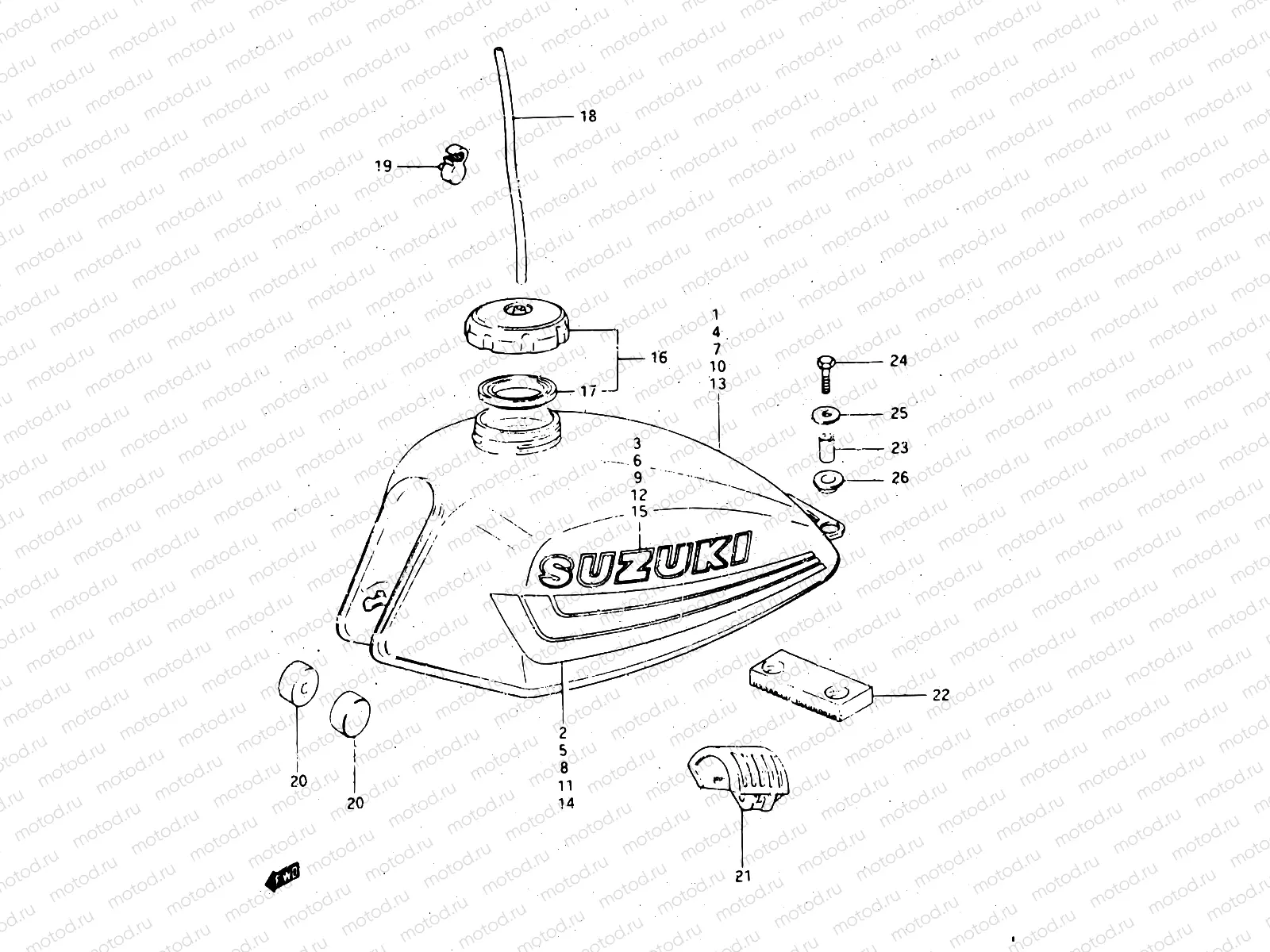

43 - FUEL TANK (MODEL D)

43 - FUEL TANK (MODEL D)
Например: 44100-37450-019
1
44100-37450-019
Tank, fuel (black)
2
68110-37450-88W
.tape set, fuel tank
3
68111-29310-064
Emblem (White)
4
44100-37450-10V
Tank assy, fuel (white)
5
68110-37450-67H
.tape set, fuel tank
6
68131-06C50-33J
.emblem (black)
7
44100-37450-05K
Tank, fuel (blue)
8
68110-37450-88Z
.tape set
9
68111-29310-064
Emblem (White)
10
44100-37450-07P
Tank, fuel (red)
11
68110-37450-72P
.tape set
12
68111-29310-064
Emblem (White)
13
44100-37450-163
Tank, fuel (yellow)
14
68110-37450-67H
.tape set
15
68131-06C50-33J
.emblem (black)
16
44200-46501
Cap,fuel Tank
720 ₽/шт
17
44248-05211
Gasket
537 ₽/шт
18
09352-50005-600
ШЛАНГ
436 ₽/шт
19
44486-32101
Хомут
187 ₽/шт
20
09329-10016
САЙЛЕНТБЛОК
221 ₽/шт
21
44541-40602
Damper (Upper)
22
44541-37400
Damper (rear)
23
09180-06093
Spacer
24
01500-0640B
Болт
81 ₽/шт
25
09160-06134
Шайба
102 ₽/шт
26
09320-10022
Валик топливного бака
1 520 ₽/шт
