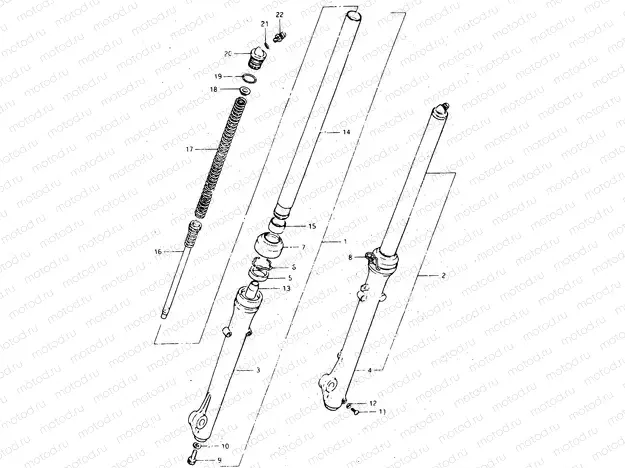

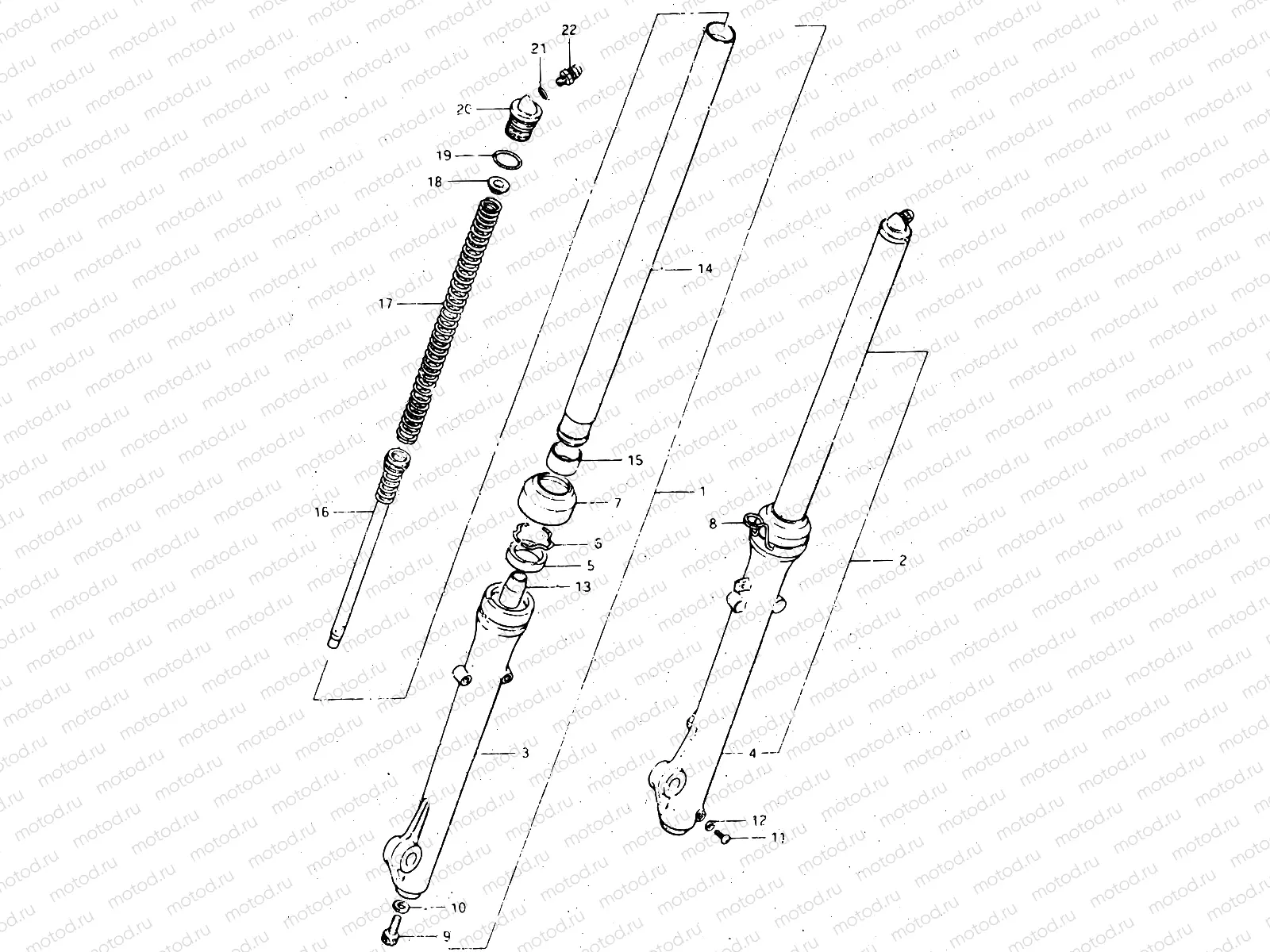

49 - FRONT FORK (MODEL D)

49 - FRONT FORK (MODEL D)
Например: 51103-37446
1
51103-37446
Damper assy, rh
2
51104-37446
Damper assy, lh
3
51130-37410
.outer tube rh
4
51140-37410
.outer tube lh
5
51153-16730
Сальник
3 001 ₽/шт
6
51156-30400
Circlip,fork oi
7
51173-41110
Dust seal,fr fo
8
51573-37411
.band, lh
9
51147-16510
BOLT,FORK CYLINDER(10X25)
238 ₽/шт
10
51148-41310
GASKET
170 ₽/шт
11
02112-04087
Винт 4X8
85 ₽/шт
12
51183-03010
Прокладка
149 ₽/шт
13
51195-49071
PIECE,OIL LOCK
1 177 ₽/шт
14
51110-37446
.inner tube
15
51121-37410
Metal, slide
16
51146-30400
.cylinder
17
51171-37446
.spring
18
51172-38010
.guide, spring
19
51117-16310
O-Ring
20
51351-37446
.cap
21
09280-06005
Кольцо уплотнительное
129 ₽/шт
22
51169-14200
Valve,fr fork a
