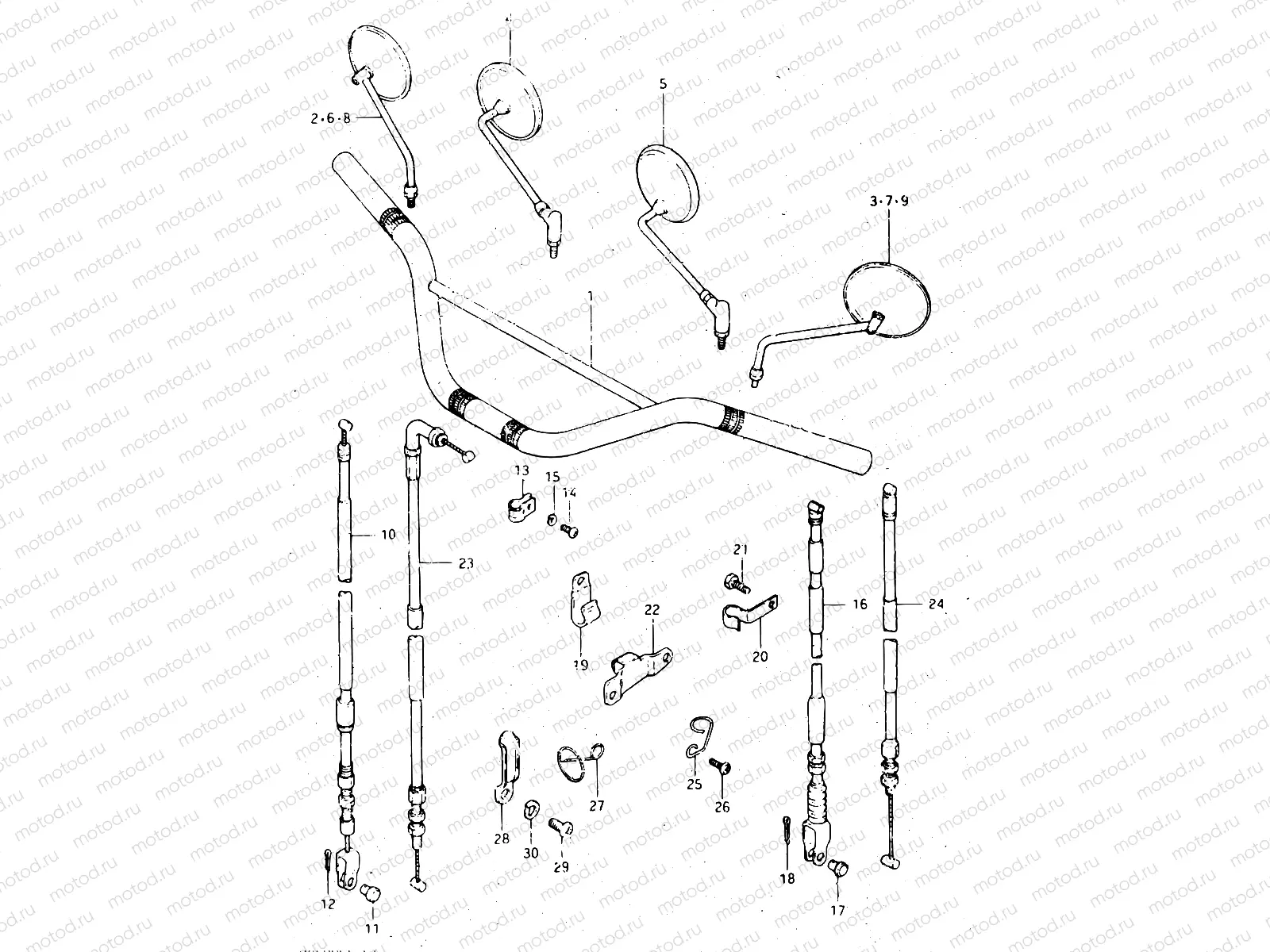

55 - HANDLEBAR (MODEL D)

55 - HANDLEBAR (MODEL D)
Например: 56110-37410-291
1
56110-37410-291
Handlebar (BLACK)
2
56500-38AB2
Mirror Assy,rr View,r
30 498 ₽/шт
3
56500-38AB2
Mirror Assy,rr View,r
30 498 ₽/шт
4
56500-080A0
Mirror assy, rear view
5
56500-28610
MIRROR ASSY,RR VIEW
8 055 ₽/шт
6
56500-45111
Mirror assy,rh
7
56600-45111
Mirror, rear view lh
8
56500-38AB2
Mirror Assy,rr View,r
30 498 ₽/шт
9
56500-38AB2
Mirror Assy,rr View,r
30 498 ₽/шт
10
58100-37200
Cable assy,fr b
11
09200-05001
ШТИФТ
129 ₽/шт
12
04111-2015A
Штифт
81 ₽/шт
13
58621-40401
Clamp, brake cable
14
02112-0610B
Винт
81 ₽/шт
15
08321-01067
Шайба, стопорная
81 ₽/шт
16
58200-37401
Câble d'embrayage
17
09200-06011
Pin
18
04111-2015A
Штифт
81 ₽/шт
19
09404-08420
Струбцина L:137
221 ₽/шт
20
09404-06037
Clamp
1 210 ₽/шт
21
01500-0612B
Болт
1 210 ₽/шт
22
58634-37400
Stopper, clutch cable
23
58300-37451
Câble de gaz
24
58900-37400
Cable assy,deco
25
58621-17200
GUIDE
196 ₽/шт
26
02142-0610B
Винт держатель
85 ₽/шт
27
58621-37400
Guide, cable
28
09403-07309
Clamp
29
02112-0610B
Винт
81 ₽/шт
30
08321-01067
Шайба, стопорная
81 ₽/шт
