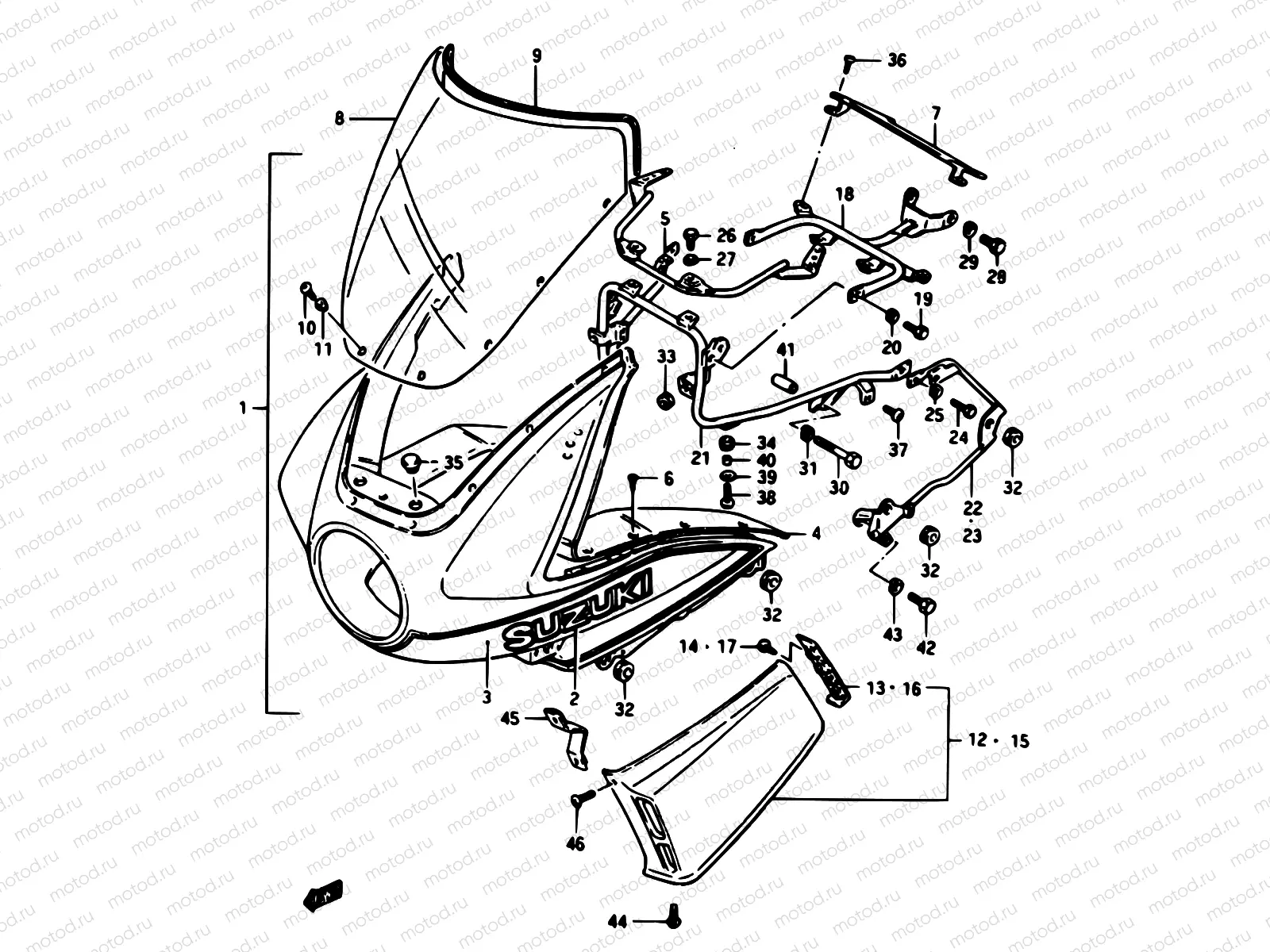

77 - COWLING (GSX1100ESE)

77 - COWLING (GSX1100ESE)

Например: 94400-00A01

1

94400-00A01

Cowling assy

2

68111-00A10-71L

.emblem

2

68111-00A10-60D

Emblem

3

68190-00A10-7EF

.tape set

3

68190-00A10-7EE

.tape set

4

94420-00A01

Panel

5

94560-00A00

.brace

6

03221-0410A

Болт

1 090 ₽/шт

7

94426-00A01

Cover, meter

8

94611-00A10

Window,cowling

8

94611-00A20

Scren

9

94631-44110

MOLD,COWLING

4 845 ₽/шт

9

94631-00A10

Molding

10

09139-05023

SCREW(5X20)

1 020 ₽/шт

11

09320-05021

Cushion(5.5X11X4.5)

194 ₽/шт

12

94430-00A01-13L

Cover,cowling,r

13

94432-00A00

PANEL,COWL SIDE COVER RR RH

805 ₽/шт

14

03541-0412A

ШАЙБА

85 ₽/шт

15

94440-00A01-13L

Cover,cowling l

16

94442-00A00

PANEL, COWLING SIDE COVER

17

03541-0412A

ШАЙБА

85 ₽/шт

18

94510-00A00

Brace, front

19

09118-06086

Болт 6X25

1 680 ₽/шт

20

08321-0106A

Шайба

81 ₽/шт

21

94520-00A00

Brace,cowl rr

22

94530-00A01

Bece, side, rh

23

94540-00A01

Brace,side, lh

24

01500-0616B

Болт

1 330 ₽/шт

25

08321-0106A

Шайба

81 ₽/шт

26

09118-06086

Болт 6X25

1 680 ₽/шт

27

08321-0106A

Шайба

81 ₽/шт

28

01500-0816B

Болт

85 ₽/шт

29

08321-0108B

Пластина замка

81 ₽/шт

30

01550-0850A

Болт

1 840 ₽/шт

31

08321-0108B

Пластина замка

81 ₽/шт

32

09320-08527

Cushion

1 640 ₽/шт

33

09320-08509

Cushion(8X22X7)

210 ₽/шт

34

09320-09016

РЕЗИНКА

162 ₽/шт

35

09250-18003

Стакан

1 250 ₽/шт

36

02142-0510A

Болт

82 ₽/шт

37

02142-06127

Винт 6X12

81 ₽/шт

38

02142-0620B

Болт

1 060 ₽/шт

39

09160-06056

WASHER(6.5X18X1)

82 ₽/шт

40

09180-06283

Кольцо/шайба

162 ₽/шт

41

09180-08207

42

07130-0816A

БОЛТ

113 ₽/шт

43

08321-0108B

Пластина замка

81 ₽/шт

44

09139-05502

Screw,m5x8.5

45

94550-00A00

Brace, side, front

46

02142-06167

Винт крестовый 6x16

81 ₽/шт
