Главная Каталог товаров SUZUKI EPC 1099 cm³ < SUZUKI GSX 1100 SUZUKI GSX1100E E SUZUKI 6 - CRANKCASE (E.NO.102248~)

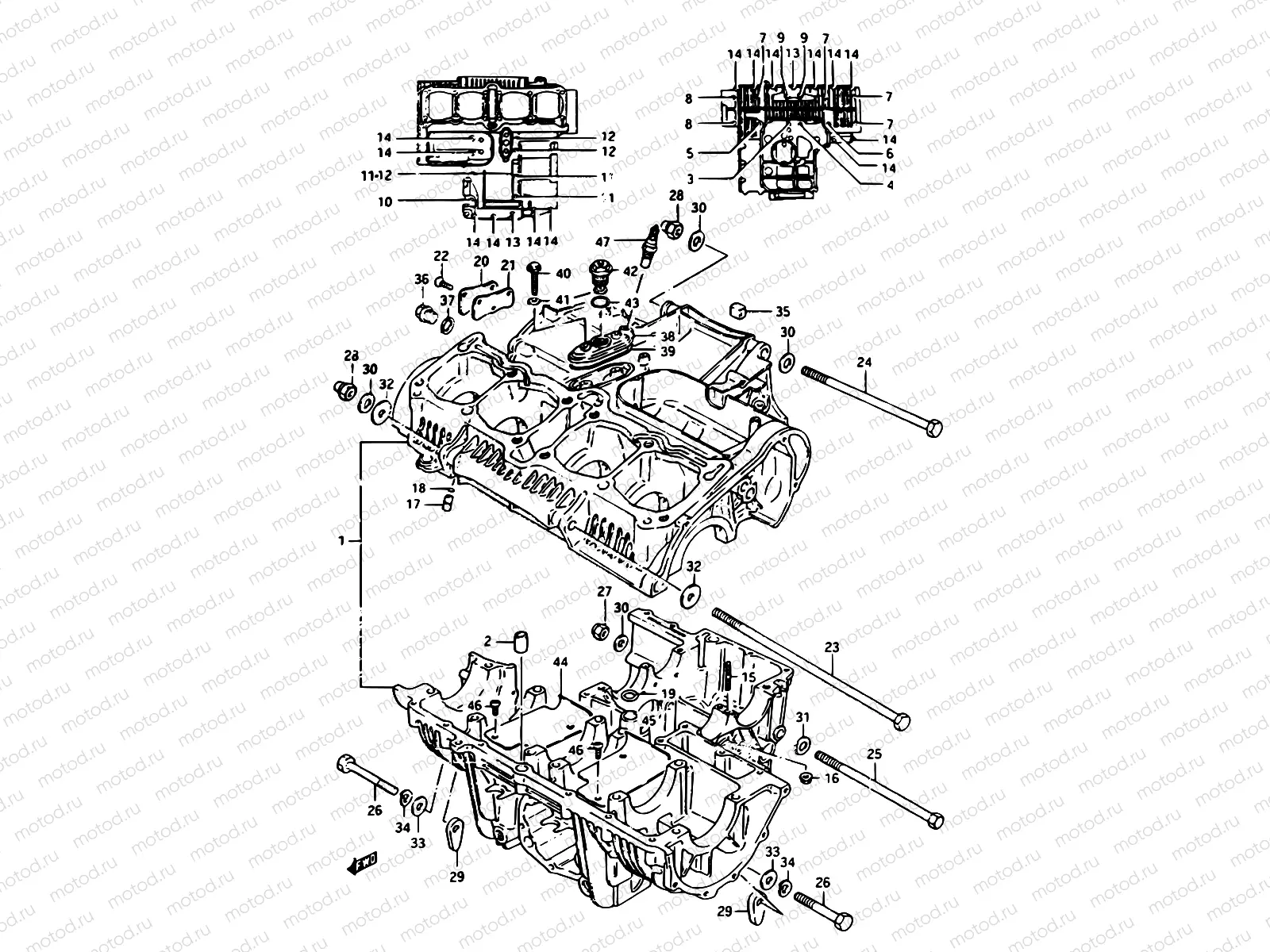

6 - CRANKCASE (E.NO.102248~)

6 - CRANKCASE (E.NO.102248~)

Например: 11300-00817

1

11300-00817

Crankcase assy

2

04211-13189

ШТИФТ

129 ₽/шт

3

09103-09004

BOLT(9X180)

5 320 ₽/шт

4

09103-09005

BOLT(9X135)

4 260 ₽/шт

5

09103-08138

Болт

4 220 ₽/шт

6

09103-08139

Болт

4 300 ₽/шт

7

09103-08112

BOLT(8X90)

4 650 ₽/шт

8

09103-08141

BOLT(8X65)

2 070 ₽/шт

9

09103-09006

BOLT 9X60

10

01550-0860B

Болт

2 310 ₽/шт

10

01550-0850A

Болт

1 840 ₽/шт

11

01550-0685B

Болт

2 030 ₽/шт

12

01550-0675B

OLT

2 030 ₽/шт

13

01550-0655B

Болт

97 ₽/шт

14

01550-0640A

Болт

1 410 ₽/шт

15

01421-0650A

Болт

1 210 ₽/шт

16

08319-31067

Гайка

153 ₽/шт

17

09364-05005

Болт соединяющий

2 070 ₽/шт

18

09280-03003

O RING(D:1.05,ID:3.1)

1 090 ₽/шт

19

09280-13001

O RING(D:3.2,ID:12.9)

1 880 ₽/шт

20

11394-45000

Cap,oil gallery

21

11497-45000-H17

Gasket

22

02122-0616B

Болт

85 ₽/шт

23

09104-10028

Bolt (10x290)

23

09104-10031

Bolt (10x285

24

09104-10025

Bolt (10x180)

25

09100-10078

БОЛТ

8 210 ₽/шт

26

09104-10015

Bolt (10x60)

27

09159-10028

Nut

28

09159-10064

Гайка

5 040 ₽/шт

29

09159-10020

NUT

3 990 ₽/шт

30

08322-0110B

Шайба

85 ₽/шт

31

08322-0110B

Шайба

85 ₽/шт

32

09160-10094

WASHER(10.5X30X3.2)

119 ₽/шт

33

09160-10005

WASHER(10.5X20X3.2)

980 ₽/шт

34

08321-01107

Шайба, стопорная

85 ₽/шт

35

11252-25000

PAD,CYLINDER

364 ₽/шт

36

09247-14026

Пробка редуктора сливная

289 ₽/шт

37

09168-14004

Прокладка

129 ₽/шт

38

16445-49010

Housing, switch

39

16448-45000

O RING,PRESSURE SWITCH HOUSING

743 ₽/шт

40

09116-06147

Болт копрусный

162 ₽/шт

41

09168-06023

ПРОКЛАДКА

162 ₽/шт

42

37820-45061

SWITCH ASSY,OIL PRESSURE

2 170 ₽/шт

43

09280-19001

КОЛЬЦО

170 ₽/шт

44

11521-49201

PLATE.OIL SEPARATOR

45

11522-49201

PLATE.OIL SEPARATOR

46

02112-0610B

Винт

81 ₽/шт

47

34870-31301
