Главная Каталог товаров SUZUKI EPC 1099 cm³ < SUZUKI GSX 1100 SUZUKI GSX1100E E SUZUKI 42 - SEAT

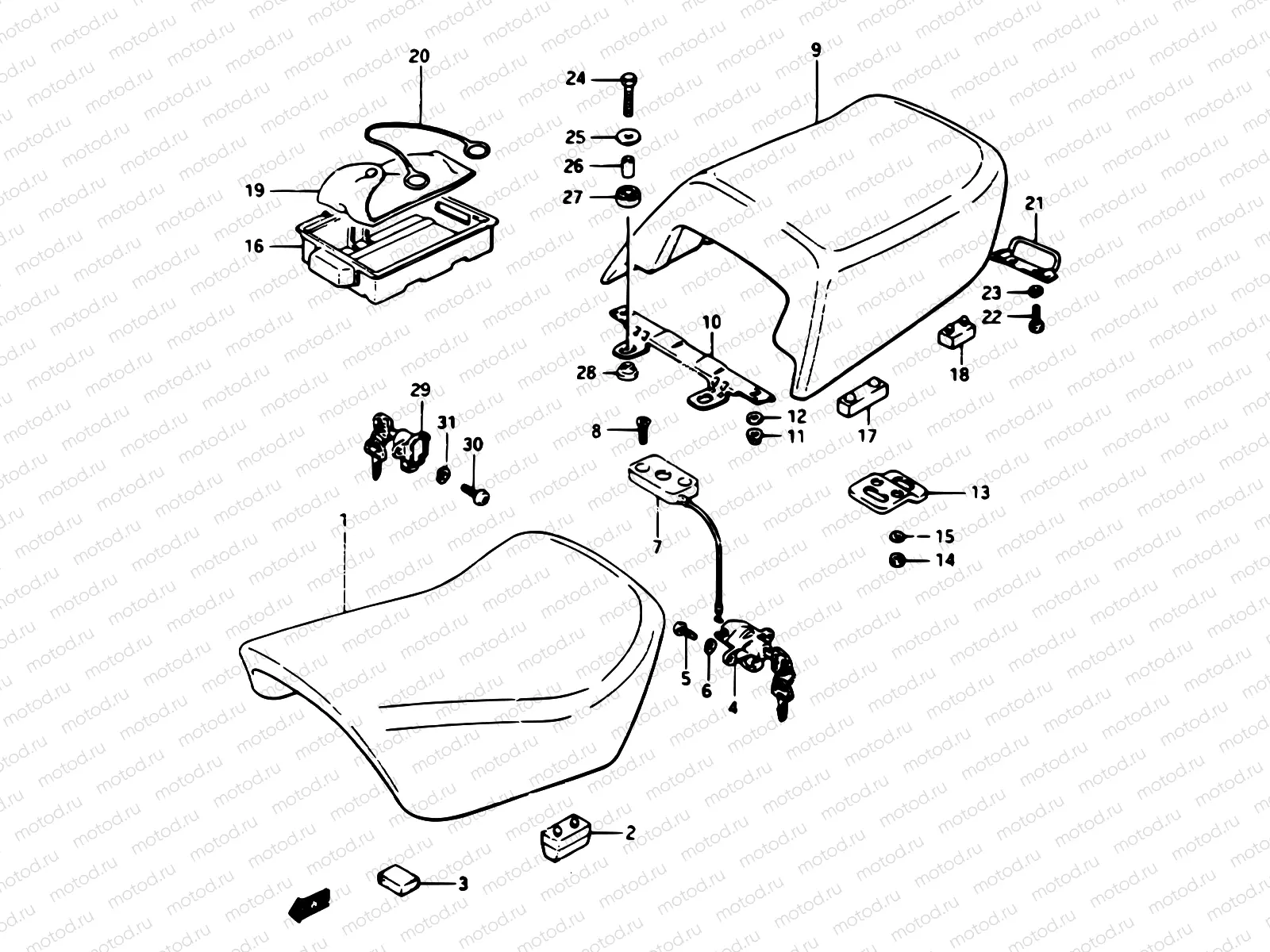

42 - SEAT

42 - SEAT

Например: 45100-00A01-58R

1

45100-00A01-58R

1

45100-00A51-57S

eat set (blue)

2

45149-00A00

.cushion

3

45255-15510

Cushion,battery

4

45700-00A00-KEY

Lock assy, seat & helmet

5

02112-3612A

Болт

1 250 ₽/шт

6

08321-0106A

Шайба

81 ₽/шт

7

45220-00A00

Bracket, seat support

8

02122-0625B

Болт

1 090 ₽/шт

9

45300-00A10-58R

9

45300-00A00-57S

eat set, pillion (blue)

10

45321-00A00

.plate, pillion seat front

11

08310-0006B

Гайка

81 ₽/шт

12

08321-0106A

Шайба

81 ₽/шт

13

45330-00A00

.plate, seat hook rear

14

08310-0006B

Гайка

81 ₽/шт

15

08321-0106A

Шайба

81 ₽/шт

16

45115-00A00

.box, tool

17

45149-43500

CUSHION,SEAT

510 ₽/шт

18

09321-08012

CUSHION(40X23X12.7)

2 460 ₽/шт

19

09822-00004

CLAMP

1 277 ₽/шт

20

45151-00A00

Band, tool

21

45210-00A00

Plate, seat rear hood

22

01500-0612B

Болт

1 210 ₽/шт

23

08321-0106A

Шайба

81 ₽/шт

24

09128-06010

Болт

900 ₽/шт

25

09160-06134

Шайба

102 ₽/шт

26

09180-06271

Кольцо/шайба

172 ₽/шт

27

09320-10038

CUSHION

115 ₽/шт

28

09320-14013

Валик топливного бака

221 ₽/шт

29

95700-00A00-KEY

Lock assy, helmet

30

02112-3612A

Болт

1 250 ₽/шт

31

08321-0106A

Шайба

81 ₽/шт
