Главная Каталог товаров SUZUKI EPC 1099 cm³ < SUZUKI GSX 1100 SUZUKI GSX1100E E SUZUKI 25 - SPEEDOMETER - TACHOMETER (GSX100EE/EF/EG)

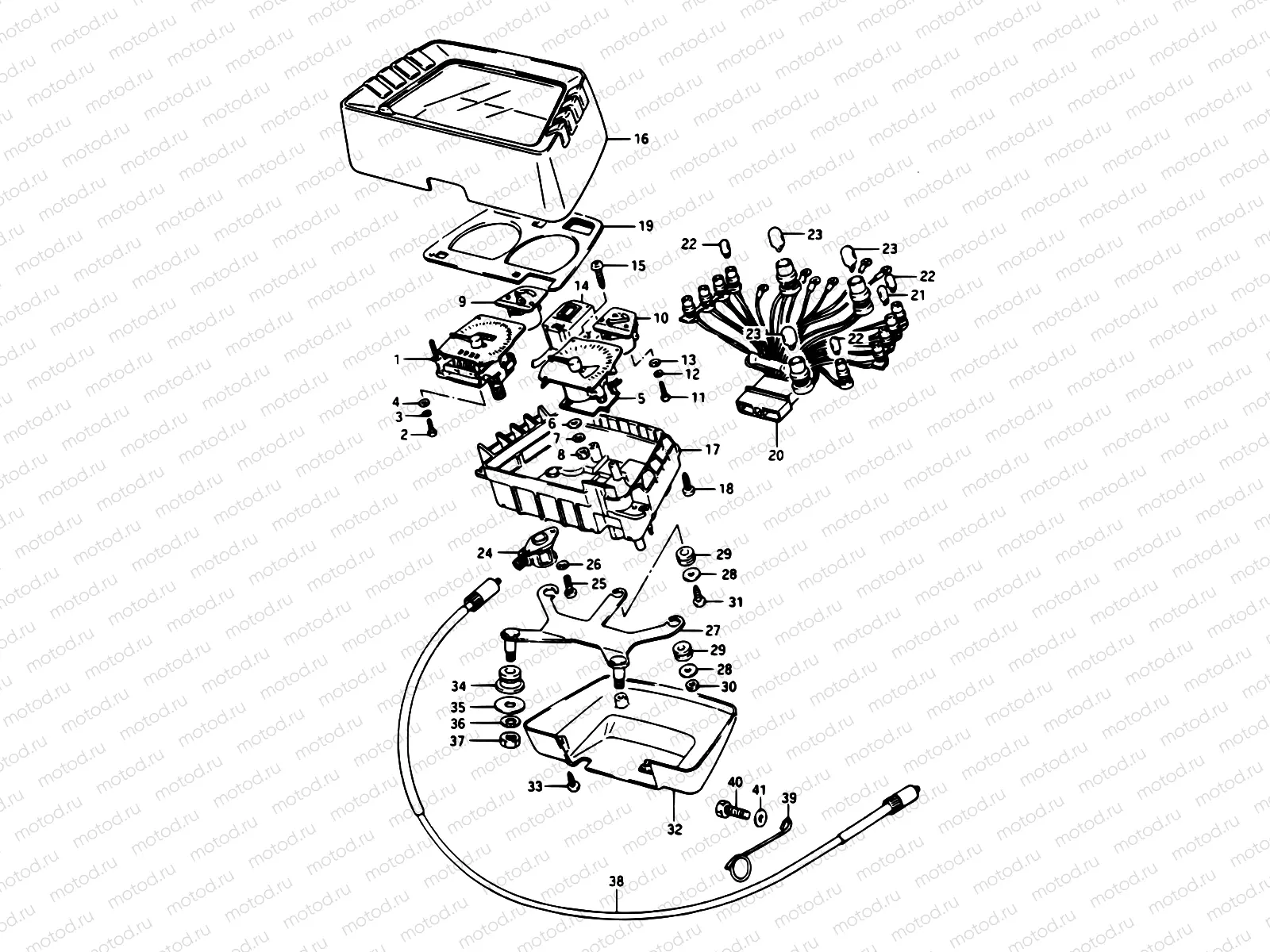

25 - SPEEDOMETER - TACHOMETER (GSX100EE/EF/EG)

25 - SPEEDOMETER - TACHOMETER (GSX100EE/EF/EG)

Например: 34120-00A11

1

34120-00A11

Speedometer (kilo)

1

34120-00A21

Speedometer (mile/kilo)

2

02112-0310A

Болт

1 060 ₽/шт

3

09162-03001

Шайба блокирующая

900 ₽/шт

4

08322-0103B

Шайба

1 370 ₽/шт

5

34220-00A11

Tachometer

6

08322-01047

Шайба

85 ₽/шт

7

08321-0104A

Пластина замка

82 ₽/шт

8

08310-00047

Гайка

81 ₽/шт

9

34320-00A11

Fuelmeter

10

34730-00A11

Oil temperature meter (degrees c)

10

34730-00A31

Oil temperature meter (degrees f)

11

02112-0312B

Болт

1 330 ₽/шт

12

09162-03001

Шайба блокирующая

900 ₽/шт

13

08322-0103B

Шайба

1 370 ₽/шт

14

36450-49910

Indicator, gear position

15

03212-04103

Vis

16

34150-00A10

Hood, meter

17

34111-00A10

Case,meter

18

03212-04103

Vis

19

34153-00A10

Plate, meter window

20

34170-00A10

Socket, meter

21

09471-12108

ЛАМПА НАКАЛИВАНИЯ

226 ₽/шт

22

09471-12085-LCP

Bulb (12v3w)

23

09471-12028

Лампочка

210 ₽/шт

24

34131-49300

GEAR BOX,SPEEDOMETER

14 780 ₽/шт

25

02112-0410A

Болт

740 ₽/шт

26

08321-0104A

Пластина замка

82 ₽/шт

27

34950-00A10

Bracket, meter

28

09160-04026

Шайба

141 ₽/шт

29

34955-28010

CUSHION

301 ₽/шт

30

08310-00047

Гайка

81 ₽/шт

31

03141-0416A

Болт

85 ₽/шт

32

34193-00A10

Cover, lower

33

03111-0412A

Болт

1 060 ₽/шт

34

34956-31001

CUSHION,METER BRACKET

501 ₽/шт

35

09160-08135

Шайба

113 ₽/шт

36

08321-0108B

Пластина замка

81 ₽/шт

37

08310-0008B

Гайка

85 ₽/шт

38

34910-33401

Câble de compteur de vitesse

39

34938-45100

CLAMP,SPEEDOMETER CABLE

254 ₽/шт

40

01550-0616B

БОЛТ

81 ₽/шт

41

08322-0106A

Шайба

81 ₽/шт
