Главная Каталог товаров SUZUKI EPC 1099 cm³ < SUZUKI GSX 1100 SUZUKI GSX1100E E SUZUKI 13 - CARBURETOR

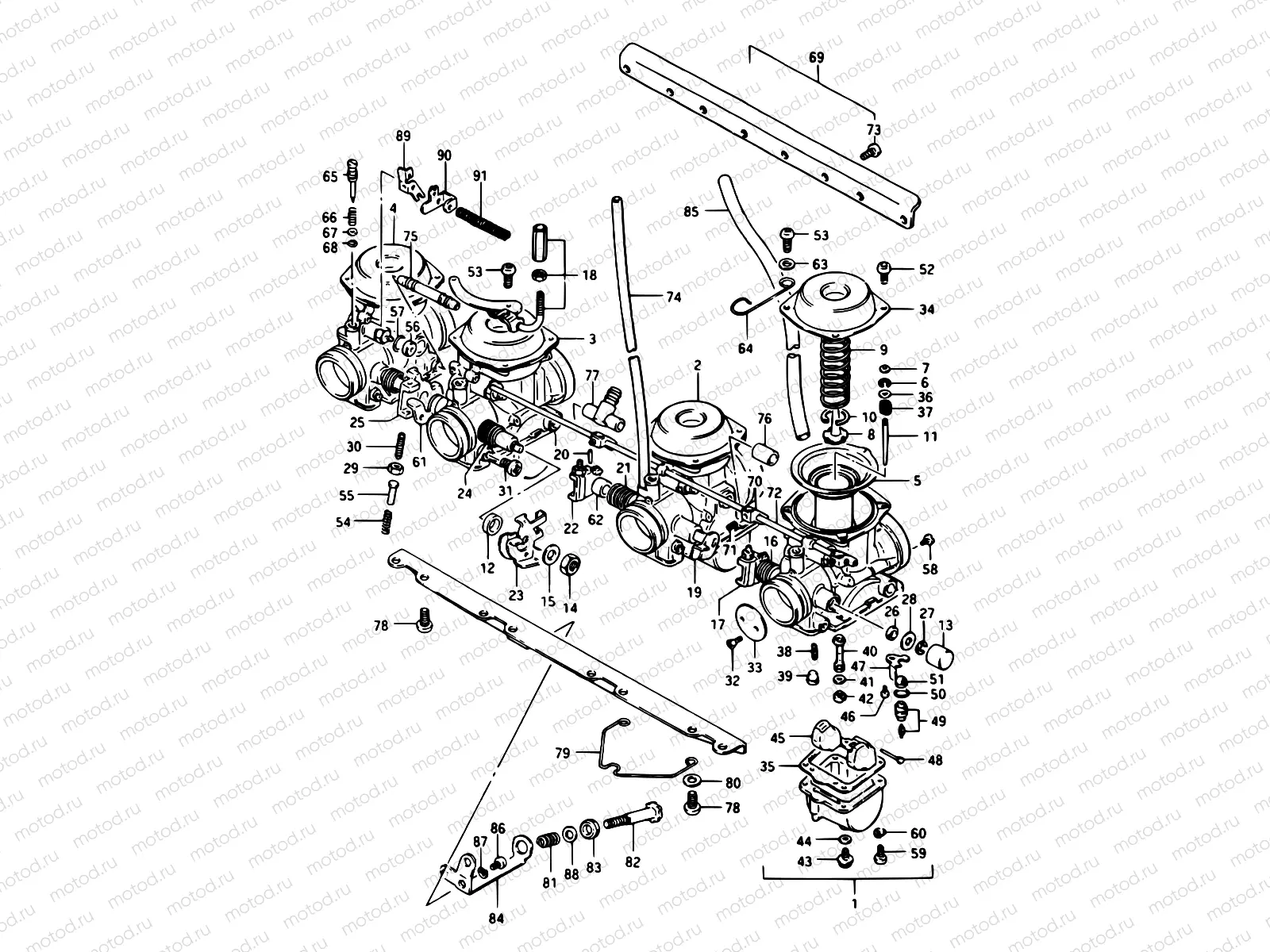

13 - CARBURETOR

13 - CARBURETOR

Например: 13201-00A30

1

13201-00A30

Carburetor, lh

1

13201-00A20

Carburetor, lh

1

13201-00A50

Carburetor, lh

2

13202-00A00

2

13202-00A20

Carburetor, ml

2

13202-00A50

Carburetor, ml

3

13203-00A30

Carburetor, mr

3

13203-00A20

Carburetor, mr

3

13203-00A50

Carburetor, mr

4

13204-00A30

Carburetor, rh

4

13204-00A20

Carburetor, rh

4

13204-00A50

Carbueretor, rh

5

13500-00A10

.diaphragm

6

13394-31210

CLIP,NEEDLE

238 ₽/шт

7

13387-44030

RING

323 ₽/шт

8

13389-44030

Держатель направляющей

868 ₽/шт

9

13503-37100

Пружина

723 ₽/шт

10

13581-44030

E RING

489 ₽/шт

11

13383-49210

Needle,jet (5D59-3)

12

13557-49200

GASKET

254 ₽/шт

12

13557-00A50

.ring

13

13578-47070

CAP

364 ₽/шт

14

09140-08021

Гайка

1 490 ₽/шт

15

13606-47070

WASHER,THROTTLE SHAFT

16

13573-47070

.spring

17

13550-00A10

.shaft

18

13621-49220

Bracket

19

13550-00A20

.shaft

20

13563-47070

.pin

21

13573-45110

.spring

22

13553-47070

.lever

23

13555-47070

.lever

23

13555-00A50

.lever

24

13573-47080

.spring

24

13573-00A50

.spring

25

13550-00A40

.shaft

26

13651-51011

Seal

231 ₽/шт

27

13617-44080

E RING

231 ₽/шт

28

13557-47070

GASKET,THROTTLE SHAFT

301 ₽/шт

29

13607-47070

Гайка

170 ₽/шт

30

13605-47080

SCREW

512 ₽/шт

31

13605-73000-000

Винт топливный

817 ₽/шт

31

13605-00A50

.screw

32

13604-44080

Болт

235 ₽/шт

33

13551-00A20

.valve, throttle (130)

33

13551-00A10

.valve, throttle (130)

34

13502-00A20

.cover, diaphragm

35

13251-44081-H17

GASKET,FLOAT CHAMBER

958 ₽/шт

36

13382-44030

Шайба

4 110 ₽/шт

37

13388-44030

Пружина

1 143 ₽/шт

38

09492-47013

Жиклерпроводник

790 ₽/шт

39

13357-44080

PLUG,NEEDLE JET

318 ₽/шт

40

09494-00469

.jet, needle (x-5)

41

13382-03110

Шайба

178 ₽/шт

42

09491-24016

JET,MAIN(120)

790 ₽/шт

42

09491-24013

JET,MAIN(122.5)

594 ₽/шт

43

13247-44080

Болт

669 ₽/шт

44

13246-44080

Прокладка

231 ₽/шт

45

13250-44080

Поплавок

2 307 ₽/шт

46

02112-0406B

Болт

81 ₽/шт

47

13373-11400

Плата клапана

465 ₽/шт

48

13254-92311

PIN,FLOAT

162 ₽/шт

49

13370-44500

Запорная игла поплавковой камеры

3 655 ₽/шт

50

13374-35C00

КОЛЬЦО УПЛОТНИТЕЛЬНОЕ

275 ₽/шт

51

13376-19F00

Фильтр-сеточка

581 ₽/шт

52

02112-0510B

Болт

85 ₽/шт

53

02112-0512A

Болт

85 ₽/шт

54

13268-44010

.spring

55

13575-47070

.pin

56

13682-31210

CAP,STARTER VALVE

459 ₽/шт

57

13278-47091

O Ring

210 ₽/шт

58

09493-25001

INJECTOR DE AR

59

02112-0516B

Болт

1 090 ₽/шт

60

08321-0105A

Пластина замка

81 ₽/шт

61

13550-00A30

.shaft

62

13387-44210

.ring

63

08322-0105B

Шайба

81 ₽/шт

64

13692-00A10

.clip

64

13692-00A20

.clip

65

13279-47070

Винт топливный

884 ₽/шт

66

13268-47070

Пружина

272 ₽/шт

67

13291-29900

Шайба

162 ₽/шт

68

13295-29901

O-Ring, Pilot Air Screw

210 ₽/шт

69

13210-00A10

Flange assy

70

13422-44080

Lever,starter p

71

13605-47070

Болт

407 ₽/шт

72

13410-49200

.shaft

73

02112-0512A

Болт

85 ₽/шт

74

09355-45857-600

Шланг

1 433 ₽/шт

75

13685-49210

Ниппель

1 376 ₽/шт

76

09354-65113-600

Cső (6.5x11.5x600)

77

13685-49200

Pipe

78

02112-3612A

Болт

1 250 ₽/шт

79

13619-49210

Clamp,cl. cable

80

13615-49200

WASHER

109 ₽/шт

81

13271-93011

Пружина

204 ₽/шт

82

13267-34390

Adjuster

83

13276-34390

BUSH

442 ₽/шт

84

13627-44120

BRACKET

1 224 ₽/шт

85

09352-50005-600

ШЛАНГ

436 ₽/шт

86

02112-0510B

Болт

85 ₽/шт

87

08321-0105A

Пластина замка

81 ₽/шт

88

13427-38300

WASHER

170 ₽/шт

89

13413-49360

.lever

90

13421-49220

Lever

91

13437-49360

.spring
