Главная Каталог товаров SUZUKI EPC 700 cm³ - 1099 cm³ SUZUKI VX 800 SUZUKI VX800 L SUZUKI 55 - REAR WHEEL

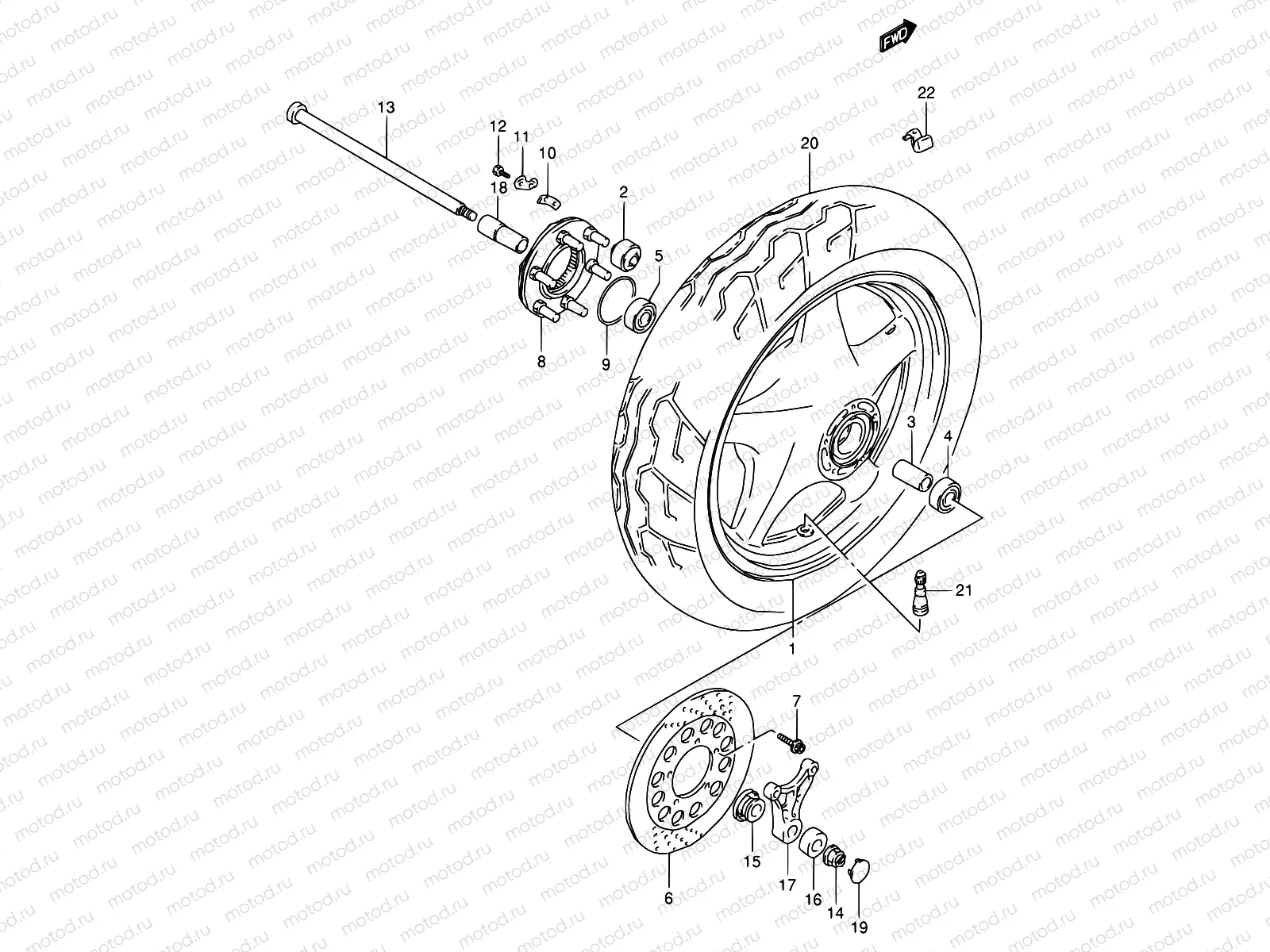

55 - REAR WHEEL

55 - REAR WHEEL

Например: 64100-45830-23W

1

64100-45830-23W

heel set,rr

2

09319-12019

САЙЛЕНТБЛОК ВЕРХ.

759 ₽/шт

3

09180-17099

Spacer, hub

4

08123-6303B

earing,rear Hub

1 405 ₽/шт

5

08143-63037

Подшипник

1 308 ₽/шт

6

69211-45C10

DISC,RR BRAKE

30 498 ₽/шт

7

09106-08131

BOLT(8X30)

2 070 ₽/шт

8

64680-45113

JOINT ASSY,RR HUB DRIVEN

14 467 ₽/шт

9

09280-65003

O RING(D:2.1,ID:65)

1 840 ₽/шт

10

64677-45110

Шайба упорная

172 ₽/шт

11

09169-06030

Шайба

1 520 ₽/шт

12

09119-06049

БОЛТ

900 ₽/шт

13

64711-45C0V

14

08319-3114A

Гайка

646 ₽/шт

15

64740-38B00

SPACER,RR AXLE,R

1 677 ₽/шт

16

64741-45C02

Spacer,rr axle

17

69721-43400

BRACKET,RR,CALIPER

3 734 ₽/шт

18

64772-34201

SPACER,RR AXLE,L

1 150 ₽/шт

19

64791-38B00

CAP,RR AXLE,R

16 320 ₽/шт

20

65110-45C10

Tire, rear (150/70 b17 69h) metzeler

21

43130-24A00

Ниппель

468 ₽/шт

22

55411-17G00

BALANCER,WHEEL(10G)

272 ₽/шт

22

55412-17G00

BALANCER,WHEEL(20G)

272 ₽/шт

22

55412-45100

Balancer,wheel
