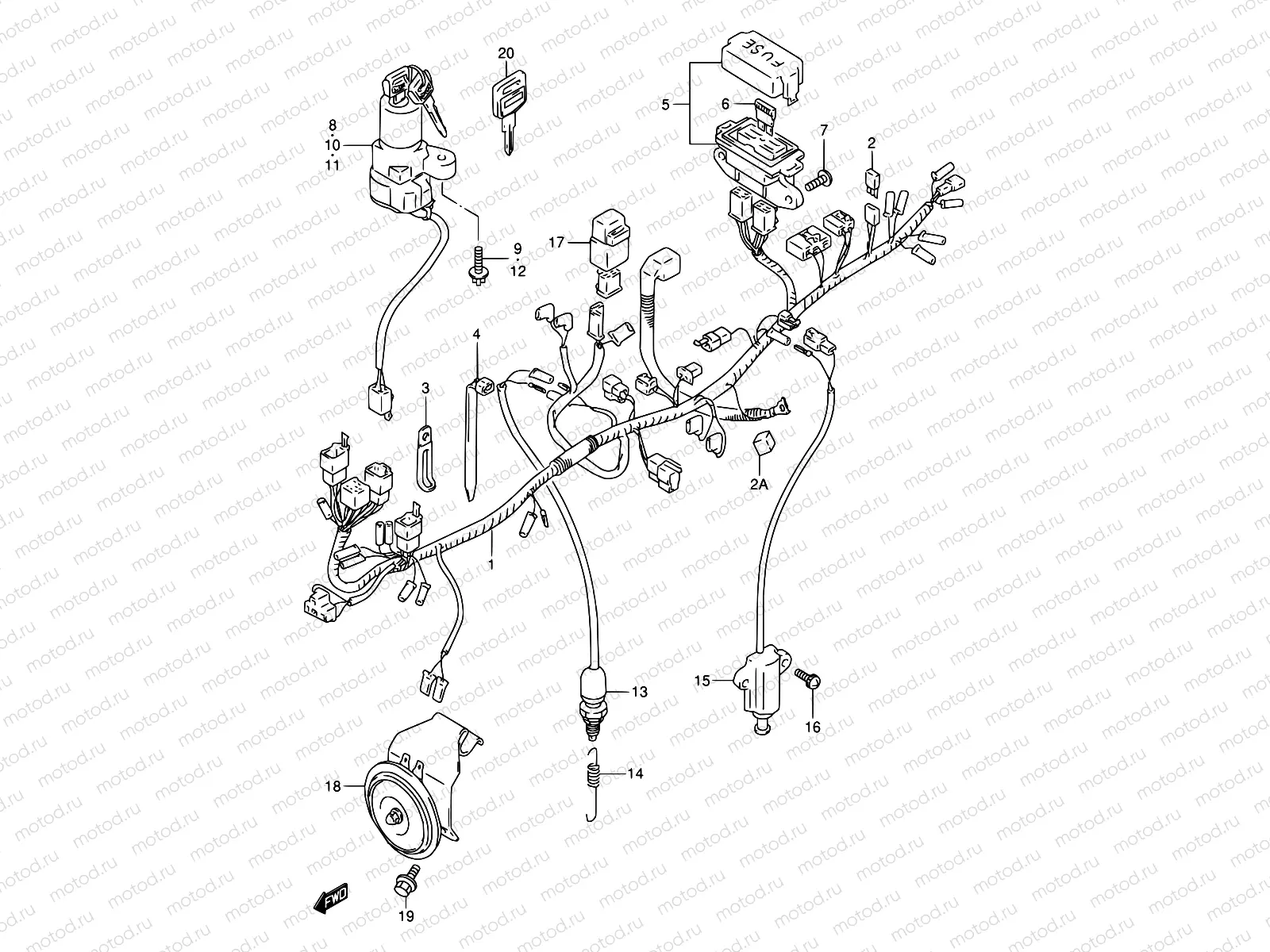

32 - WIRING HARNESS

32 - WIRING HARNESS
Например: 36610-45C00
1
36610-45C00
Harness, wiring
2
36611-38A10
DIODE
1 024 ₽/шт
2
33624-43500
КОЛПАЧОК,КЛЕММЫ АККУМ.БАТАРЕИ
275 ₽/шт
3
09404-06039
Clamp(L:65)
194 ₽/шт
3
09404-06036
Clamp(L:80)
194 ₽/шт
3
09404-06435
CLAMP(L:135)
226 ₽/шт
3
09404-08420
Струбцина L:137
221 ₽/шт
3
09404-08206
CLAMP(L:65 T:0.8)
129 ₽/шт
4
09407-14407
ЗАЖИМ
221 ₽/шт
4
09407-14403
КЛЕММА
221 ₽/шт
4
09407-12402
Струбцина
211 ₽/шт
4
09407-18402
Струбцина (L:165)
211 ₽/шт
5
36740-10D10
Box assy,fuse
6
09481-10010-025
Fusible (10A)
6
09481-25103
ПРЕДОХРАНИТЕЛЬ
1 520 ₽/шт
7
02142-0612B
Винт
81 ₽/шт
8
37100-26D03
LOCK ASSY,STEERING
34 000 ₽/шт
9
09139-06026
Болт
1 410 ₽/шт
13
37740-04A10
SWITCH ASSY,STOP LAMP
1 870 ₽/шт
14
09443-06073
ПРУЖНА
226 ₽/шт
15
37840-44X51
Switch Assy,side Stand
6 334 ₽/шт
16
02112-7620B
Болт
1 640 ₽/шт
17
38740-24X50
RELAY ASSY, HEAD LAMP
2 665 ₽/шт
18
38500-45C01
Horn assy
19
01550-06207
БОЛТ
85 ₽/шт
20
37146-26D10
KEY,BLANK
3 315 ₽/шт
