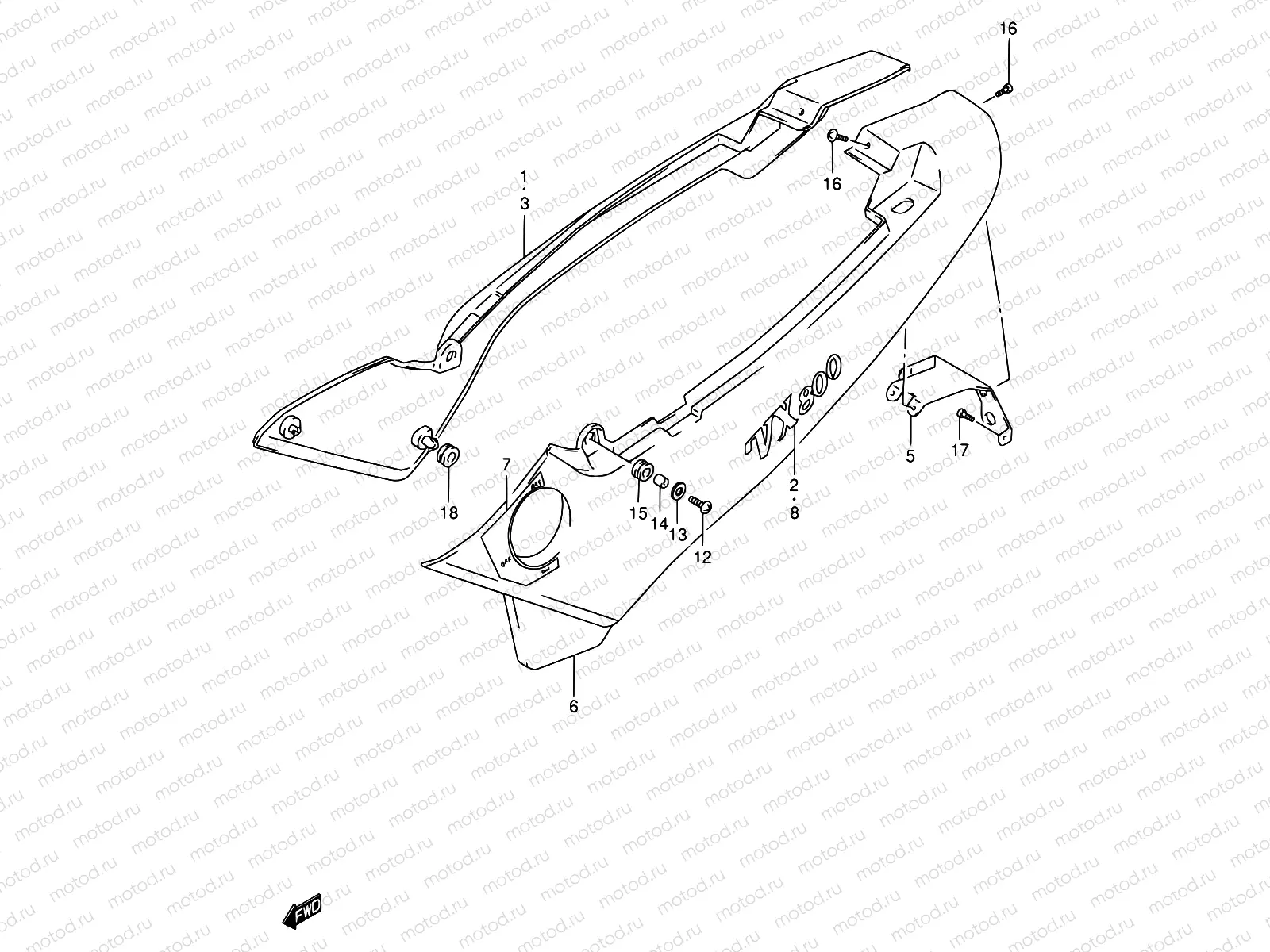

40 - FRAME COVER (MODEL L/M)

40 - FRAME COVER (MODEL L/M)
Например: 47111-45C01
1
47111-45C01
OVER, FRAME RH (SILVER)
1
47110-45C01-33J
over,frame,r
2
68131-45C00-A6T
Emblem
2
68131-45C00-B34
Emblem
3
47111-45C01
OVER, FRAME RH (SILVER)
3
47110-45C20-19A
over, frame rh (red)
4
68131-45C10-F68
.emblem
4
68131-45C10-F67
.emblem
4
68131-45C10-F66
.emblem
5
47130-45C00
over comp,side
6
47211-45C01
OVER, FRAME LH (SILVER)
6
47210-45C61-33J
over,frame,l
7
47913-45C00-064
Label,fuel cock
8
68131-45C00-A6T
Emblem
8
68131-45C00-B34
Emblem
9
47211-45C01
OVER, FRAME LH (SILVER)
10
47913-45C00-064
Label,fuel cock
11
68131-45C10-F68
.emblem
11
68131-45C10-F67
.emblem
11
68131-45C10-F66
.emblem
12
02142-0620B
Болт
1 060 ₽/шт
13
09160-06056
WASHER(6.5X18X1)
82 ₽/шт
14
09180-06262
Кольцо/шайба
162 ₽/шт
15
09320-09016
РЕЗИНКА
162 ₽/шт
16
02142-0410A
Винт
81 ₽/шт
17
03541-0410A
Болт
85 ₽/шт
18
09320-08527
Cushion
1 640 ₽/шт
