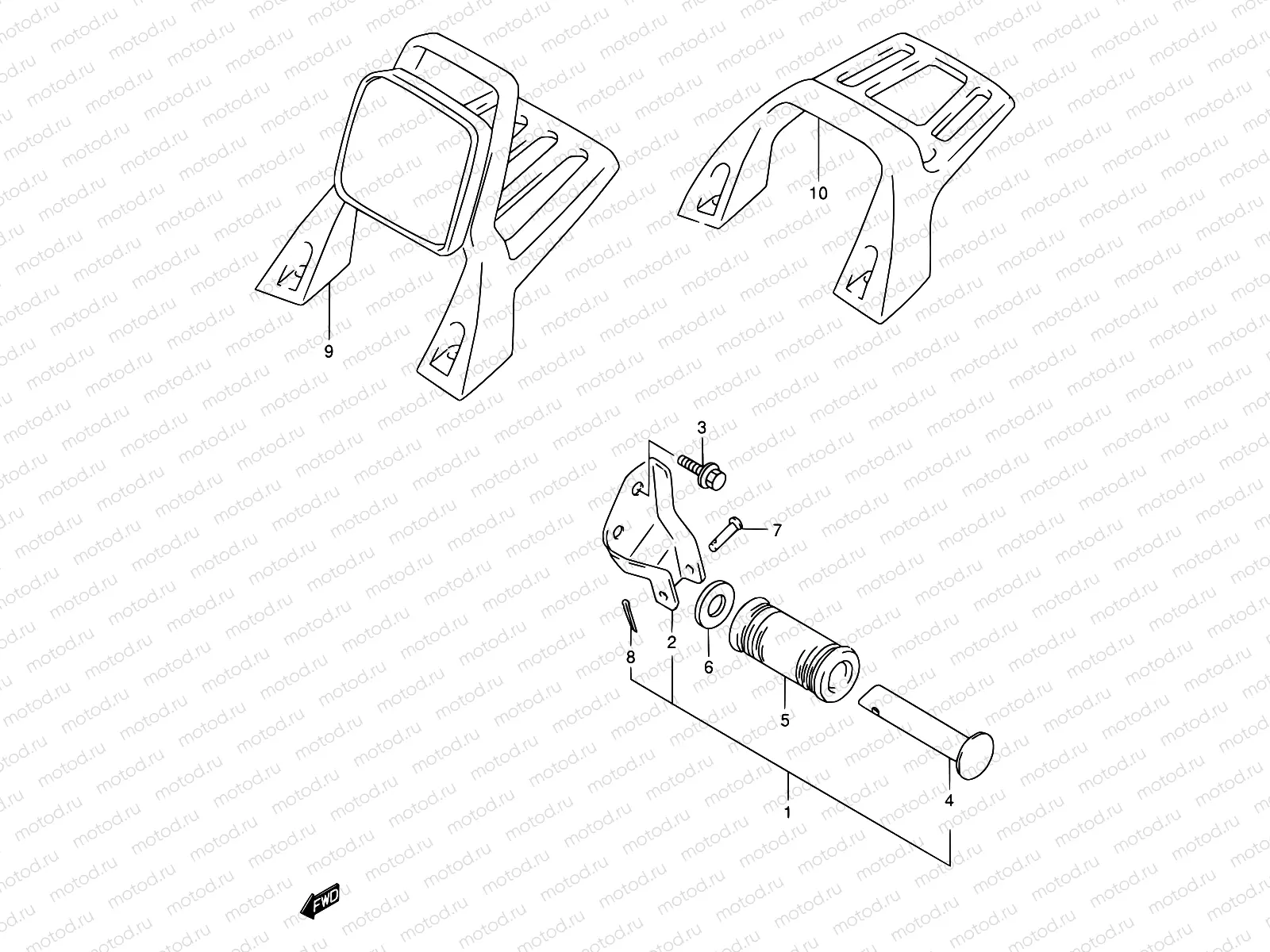

37 - STAND GRIP - CARRIER

37 - STAND GRIP - CARRIER
Например: 997SO-45810
1
997SO-45810
2
43990-45C00
.holder
3
01550-0816B
Болт крепёжный
97 ₽/шт
4
43610-44000
Bar,rr footrest
5
43995-45C00
RUBBER,STAND GRIOP (OPT)
1 803 ₽/шт
6
09160-19024
Шайба
129 ₽/шт
7
09200-06010
PIN
1 250 ₽/шт
8
04111-2015A
Штифт
81 ₽/шт
9
46300-45812-23S
Carrier set,spo
10
46300-45822-23S
portcarrierset
