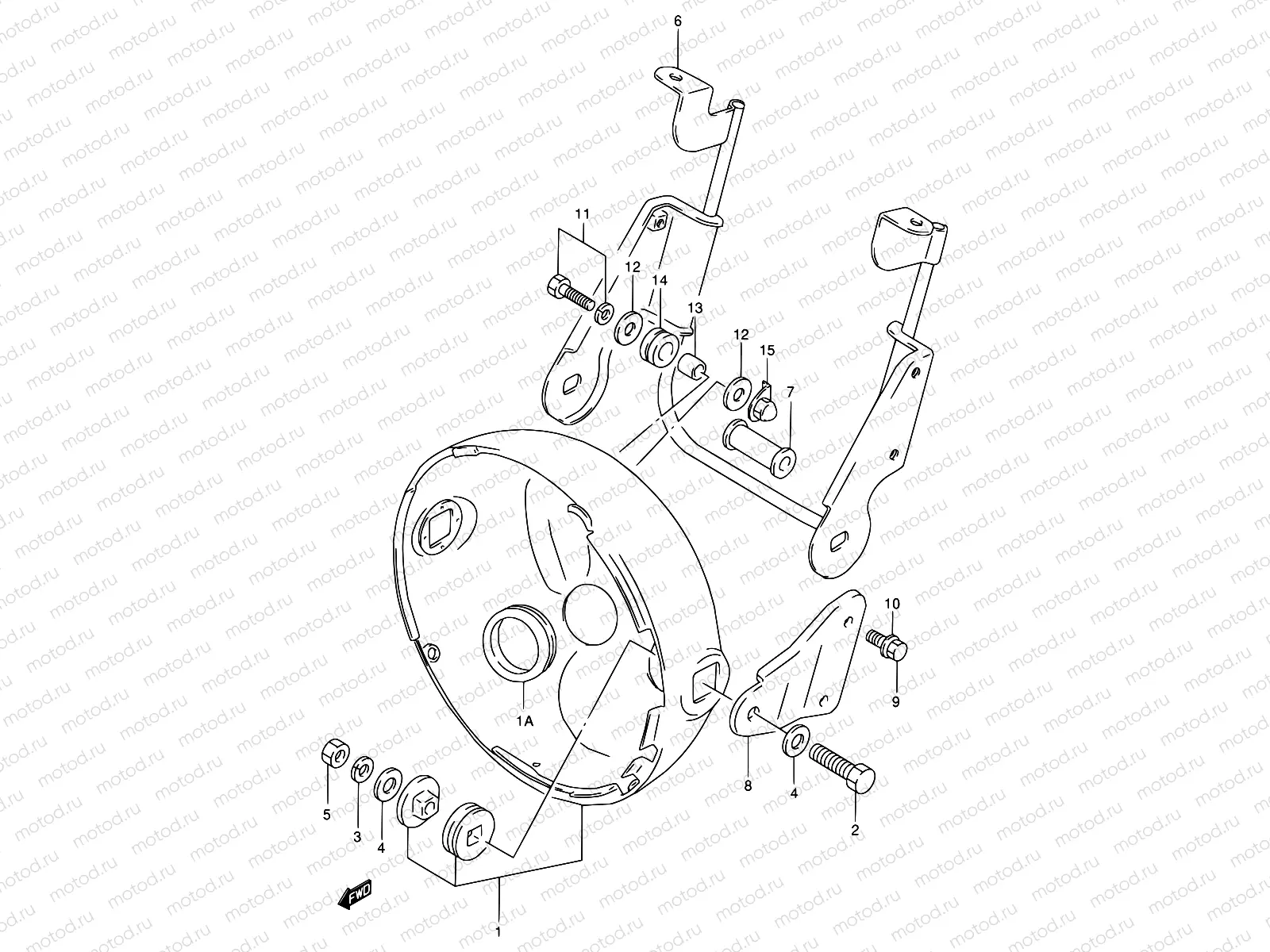

41 - HEADLAMP HOUSING (MODEL L/M/N/P)

41 - HEADLAMP HOUSING (MODEL L/M/N/P)
Например: 51810-01D11
1
51810-01D11
Корпус фары
13 372 ₽/шт
1
51817-01D01
GROMMET
411 ₽/шт
2
01204-08307
BOLT
1 170 ₽/шт
3
08321-01087
Пластина замка
81 ₽/шт
4
08322-01087
Шайба
81 ₽/шт
5
08310-00087
Гайка 8MM
81 ₽/шт
6
51580-45C00
Bracket,headlam
7
09320-08522
Cushion
1 840 ₽/шт
8
51851-45C00
Stay,hdlmp hsng
8
51861-45C00
Stay, headlamp housing lh
9
01204-06127
BOLT
980 ₽/шт
10
08322-0106A
Шайба
81 ₽/шт
11
01234-0625A
Болт
1 250 ₽/шт
12
09160-06084
Шайба 6.5X18X1
81 ₽/шт
13
09180-07004
Кольцо/шайба
1 410 ₽/шт
14
09320-10015
САЙЛЕНТБЛОК
226 ₽/шт
15
51815-06C00
PLATE,HEADLAMP
414 ₽/шт
