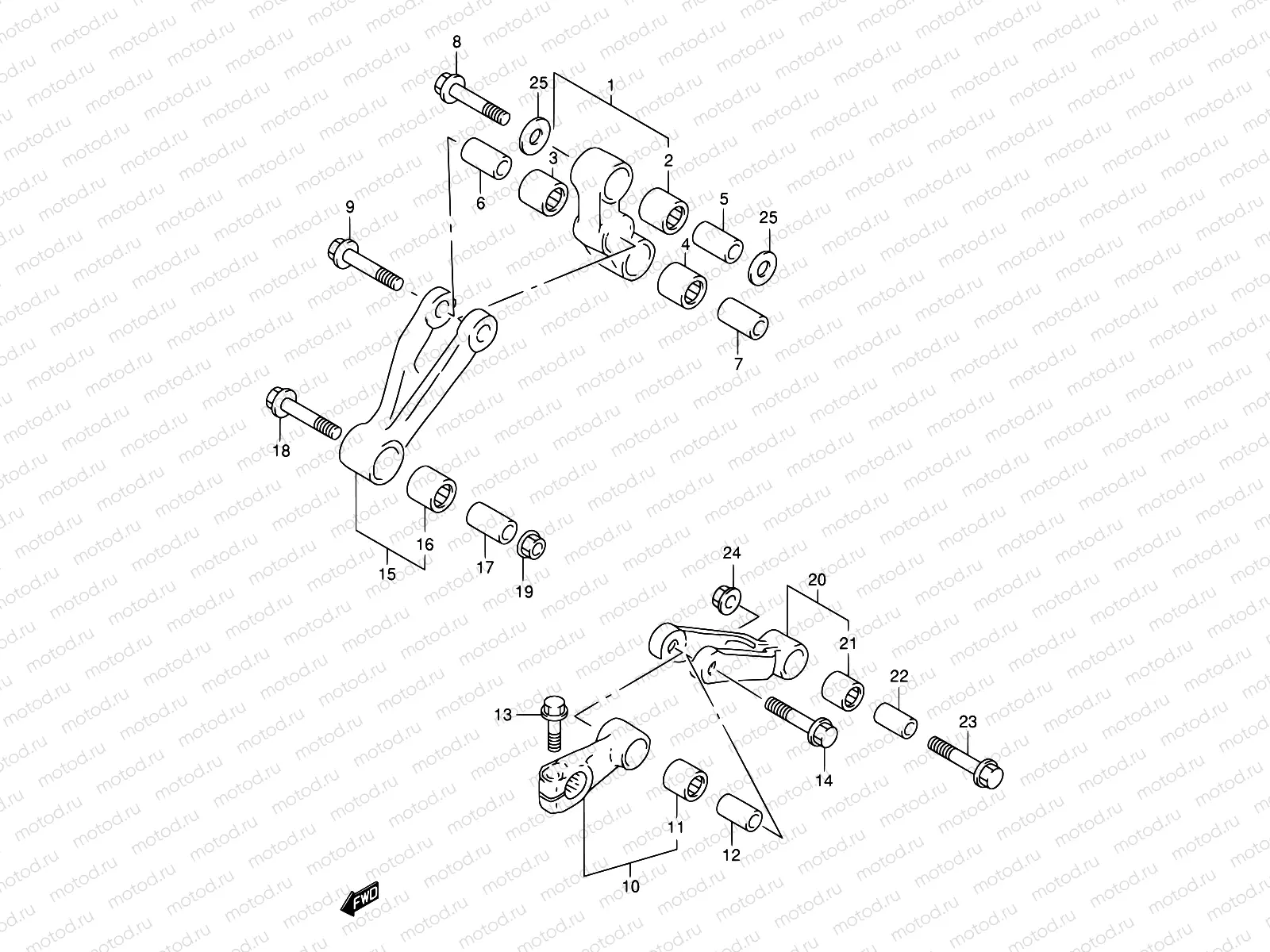

54 - REAR CUSHION LEVER

54 - REAR CUSHION LEVER
Например: 62600-02810
1
62600-02810
Lever set, rear cushion
2
09263-20121
Bearing
1 583 ₽/шт
3
09263-20116
Bearing
1 583 ₽/шт
4
09263-17058
Bearing
1 098 ₽/шт
5
62317-27C10
SPACER,RR CUSHION LEVER FR
1 003 ₽/шт
6
62317-27C10
SPACER,RR CUSHION LEVER FR
1 003 ₽/шт
7
62684-02F00
Spacer,rear cus
8
62658-01C60
BOLT,RR CUSHION LEVER FR
680 ₽/шт
9
62668-42A02
BOLT,CUSHION LEVER
551 ₽/шт
10
62600-02860
ARM SET,REAR CUSHION
11
09263-14025
BEARING(14X20X25)
2 737 ₽/шт
12
62646-02F00
SPACER,RR CUSH ARM
786 ₽/шт
13
09103-08042
BOLT(8X31)
3 050 ₽/шт
14
62648-14500
BOLT,RR CUSHION ROD UPR
697 ₽/шт
15
62650-02810
Rod set, rear cushion rh
16
09263-20116
Bearing
1 583 ₽/шт
17
62317-27C10
SPACER,RR CUSHION LEVER FR
1 003 ₽/шт
18
62668-27A00
BOLT,RR CUSHION LEVER FR
275 ₽/шт
19
08319-3112A
Гайка
211 ₽/шт
20
62640-02810
Rod set,rear cu
21
09263-14025
BEARING(14X20X25)
2 737 ₽/шт
22
62646-02F00
SPACER,RR CUSH ARM
786 ₽/шт
23
09103-10428
BOLT(10X58)
485 ₽/шт
24
08319-31107
Гайка
210 ₽/шт
25
09181-20186
Шайба 0.5
1 990 ₽/шт
