Главная Каталог товаров SUZUKI EPC 700 cm³ - 1099 cm³ SUZUKI TL 1000 SUZUKI TL1000S K1 SUZUKI (VIN: JS1AG111) 10B - THROTTLE BODY FITTING PARTS

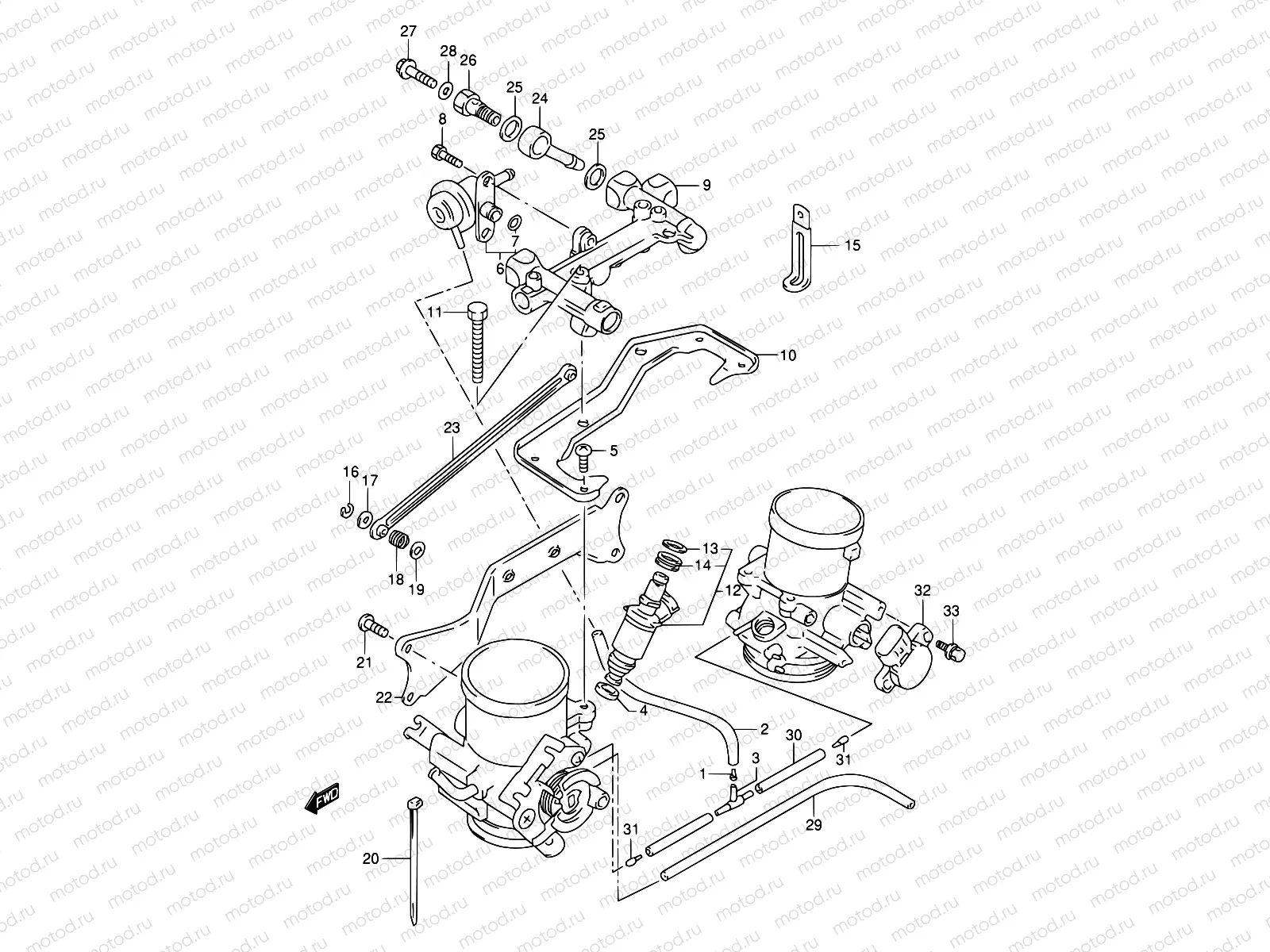

10B - THROTTLE BODY FITTING PARTS

10B - THROTTLE BODY FITTING PARTS
Например: 09493-50006
1
09493-50006
Жиклер воздушный
1 118 ₽/шт
2
13683-10F61
Hose(L:425)
1 088 ₽/шт
3
09367-04007
Золотник
187 ₽/шт
4
09320-08062
КОЛЬЦО УПЛОТНИТЕЛЬНОЕ ФОРСУНКИ РЕЗИНА
459 ₽/шт
5
13602-06148
Болт
180 ₽/шт
6
15610-02F10
Regulator,fuel
7
15710-09300
Кольцо уплотнительное
170 ₽/шт
8
13612-02F00
Болт
242 ₽/шт
9
15731-02F00
Pipe, assy
10
13625-02F00
Plate
11
13612-02F10
Vis
12
15710-02FA0
Инжектор
24 633 ₽/шт
13
15717-02F00
O RING
301 ₽/шт
14
15720-09300
Втулка впрыска
170 ₽/шт
15
09404-06039
Clamp(L:65)
194 ₽/шт
16
13617-44500
E RING,ACCELETION LEVER
188 ₽/шт
17
13615-02F10
RING
391 ₽/шт
18
13546-02FA0
Spring
19
13615-02F20
RING
227 ₽/шт
20
13671-02F00
CLIP
227 ₽/шт
21
13602-02F00
Болт
180 ₽/шт
22
13626-02F00
Plate
23
13540-02F00
Lever assy
24
15815-02F00
Union,fuel hose
25
13925-85553
Прокладка
170 ₽/шт
26
13923-85551
BOLT,UNION FUEL FILTER
1 496 ₽/шт
27
17568-50F00
Болт крышки термостата
221 ₽/шт
28
09168-06023
ПРОКЛАДКА
162 ₽/шт
29
13683-10F61
Hose(L:425)
1 088 ₽/шт
30
13683-10F61
Hose(L:425)
1 088 ₽/шт
31
09493-20015
Жиклер воздушный
1 118 ₽/шт
32
13580-02F01
Sensor Assy,throttle
13 600 ₽/шт
33
13605-02F00
Болт
170 ₽/шт
