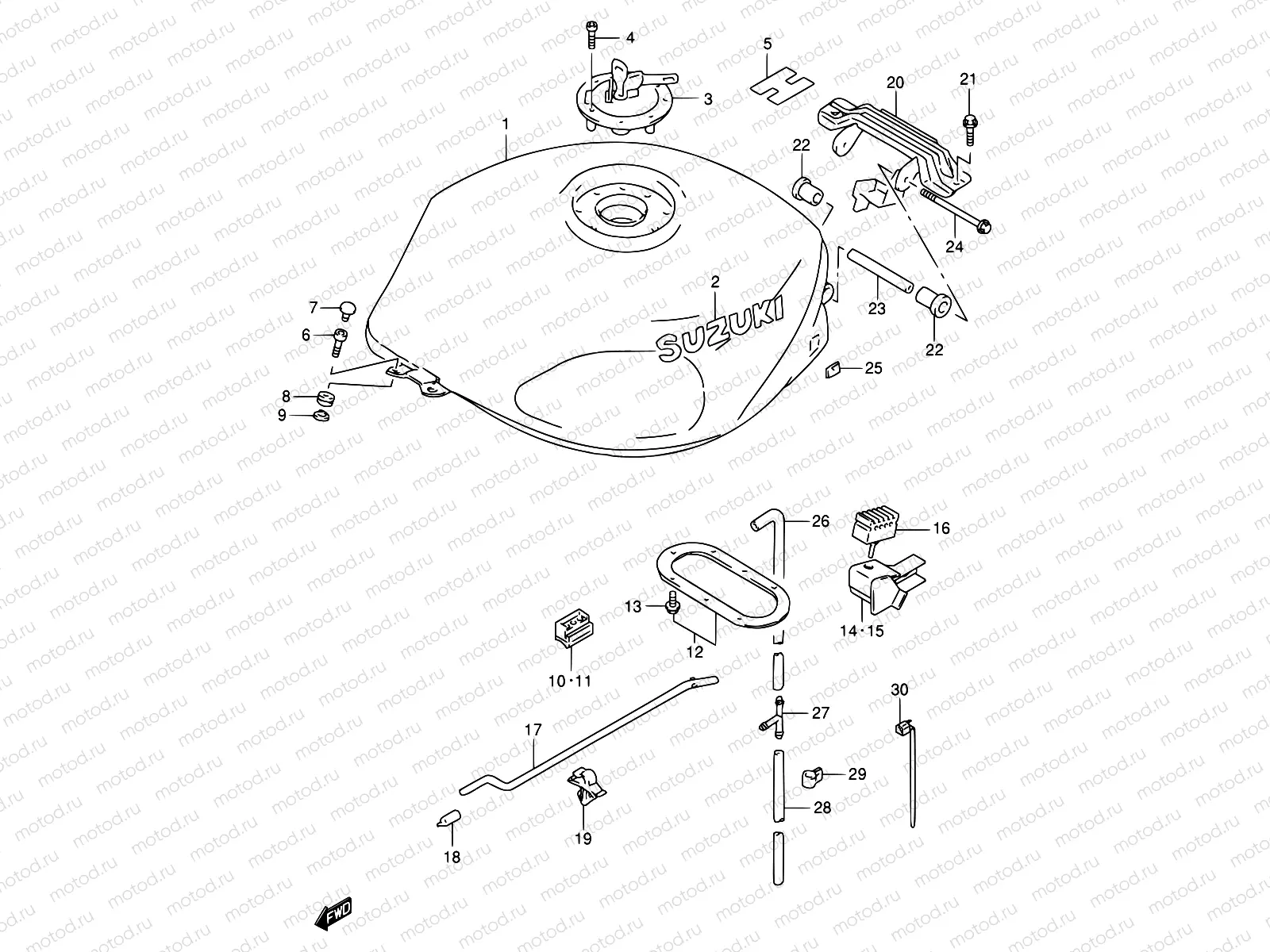

34B - FUEL TANK (MODEL Y/K1)

34B - FUEL TANK (MODEL Y/K1)
Например: 44100-02F90-Y7L
1
44100-02F90-Y7L
Tank assy,fuel
1
44100-02F01-YC2
Tank assy, fuel (blue)
2
68111-12CA0-0AT
Emblem(silver)
2
68111-12CA0-YC9
Emblem(black)
3
44200-33871
Cap set,fuel ta
4
09106-05017
БОЛТ
113 ₽/шт
5
44261-02F00
LABEL,FUEL TANK INNER
344 ₽/шт
6
07130-0665B
БОЛТ
129 ₽/шт
7
44514-02F00
CAP,BOLT
328 ₽/шт
8
09320-09009
РЕЗИНКА
187 ₽/шт
9
09169-06062
Кольцо/шайба
114 ₽/шт
10
44559-02F01
Cushion,fuel ta
11
44569-02F01
Cushion,tank si
12
44590-02821
Packing Set,fuel Pump
6 545 ₽/шт
13
09103-05017
BOLT(5X10)
2 230 ₽/шт
14
44560-02F00
RH BRACKET
15
44570-02F00
LH BRACKET
16
44542-02F01
Cushion,tank re
17
44574-33E01
STAY,FUEL TANK
3 315 ₽/шт
18
09251-05006
CAP(OD:11)
3 480 ₽/шт
19
09403-05310
CLAMP
2 030 ₽/шт
20
44550-02F01
BRACKET,FUEL TANK,REAR
21
09106-08140
Заглушка масляной магистрали
258 ₽/шт
22
44541-02F01
Damper (Fuel tank)
23
44561-33E10
SPACER,FUEL TANK RR
1 427 ₽/шт
24
01550-0895B
Болт
2 620 ₽/шт
25
44572-02F01
Защелка
782 ₽/шт
26
44423-02F02
Hose,fuel Tank Drain
1 372 ₽/шт
27
09367-08005
Соединение 3-х стороннее
2 420 ₽/шт
28
09352-70104-600
Hose(7X10.2X600)
561 ₽/шт
29
09403-14408
CLAMP
3 870 ₽/шт
30
09407-14403
КЛЕММА
221 ₽/шт
