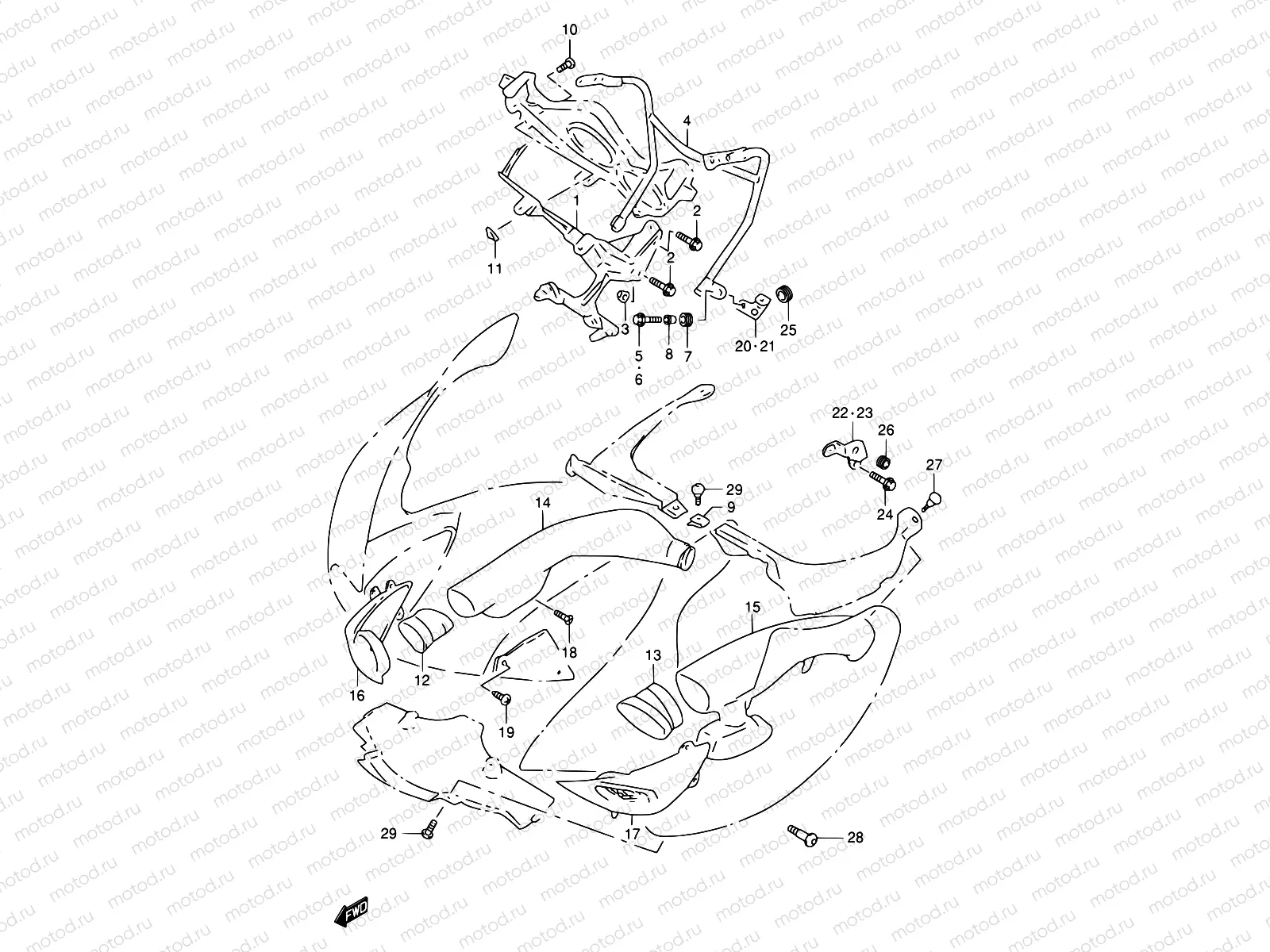

41 - INSTALLATION PARTS

41 - INSTALLATION PARTS
Например: 94510-02F01
1
94510-02F01
BRACE,COWLING
43 010 ₽/шт
2
01550-0830B
Болт
113 ₽/шт
3
08313-2008B
Гайка
1 840 ₽/шт
4
94520-02F01
BRACE,RR VIEW MIRRORR
13 059 ₽/шт
5
09116-06115
Болт копрусный
153 ₽/шт
6
09116-06171
Болт
1 520 ₽/шт
7
09320-09009
РЕЗИНКА
187 ₽/шт
8
94529-46E0V
WASHER,MIRROR BRACE INNER
321 ₽/шт
9
94484-24F00
Гайка
178 ₽/шт
10
03241-0516A
Винт
81 ₽/шт
11
09148-05020
Гайка
97 ₽/шт
12
94453-02F00
Joint,air int.r
13
94454-02F00
Joint,air int.l
14
94451-02F00
Pipe,air int.,r
15
94452-02F00
Pipe,air int.,l
16
94670-02F00
Cover,intake,r
17
94680-02F00
COVER,INTAKE,L
8 055 ₽/шт
18
03541-0512B
Винт
81 ₽/шт
19
03541-0512B
Винт
81 ₽/шт
20
94531-02F00
BRACKET,SIDE COWLING UP,R
1 463 ₽/шт
21
94532-02F00
BRACKET,SIDE COWLING UP,L
880 ₽/шт
22
94540-02F00
Bracket,cowl,rr
23
94550-02F00
BRACKET,SIDE COWLING RR,L
676 ₽/шт
24
01500-0616B
Болт
1 330 ₽/шт
25
09320-08527
Cushion
1 640 ₽/шт
26
09320-09016
РЕЗИНКА
162 ₽/шт
27
09139-05055
ШАЙБА
3 480 ₽/шт
28
09139-06126
БОЛТ МЕТАЛЛ (6х20)
194 ₽/шт
29
09139-05054
Болт
194 ₽/шт
