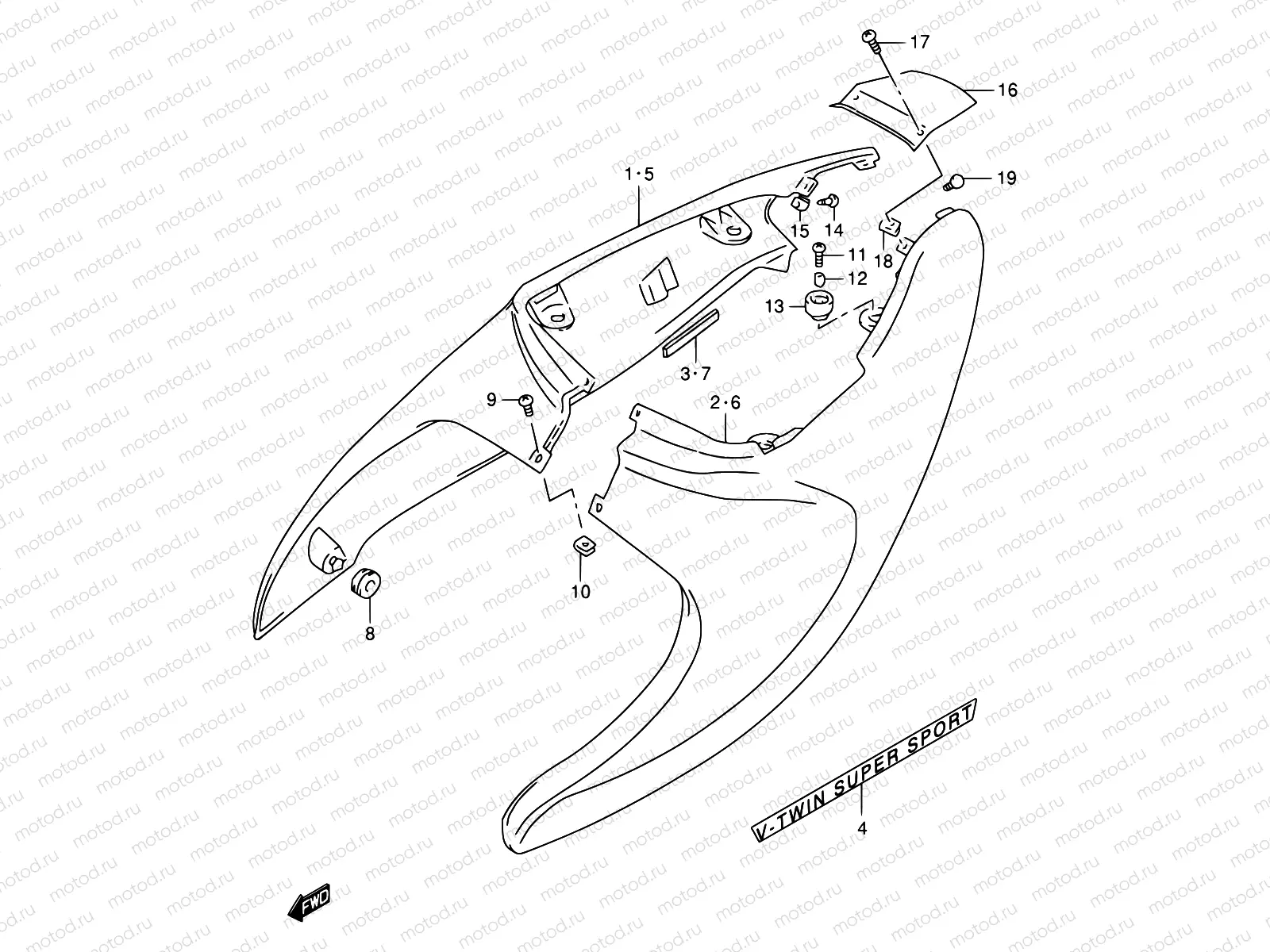

35C - FRAME COVER (MODEL Y/K1)

35C - FRAME COVER (MODEL Y/K1)
Например: 47110-02F30-Y7L
1
47110-02F30-Y7L
Cover, frame rh (black)
1
47110-02F30-YC2
over, frame rh (blue)
2
47210-02F30-Y7L
Cover, frame lh (black)
2
47210-02F30-YC2
over, frame lh (blue)
3
47161-02F00
Cushion
4
68131-02F40-M6U
Emblem
4
68131-02F40-CA7
Emblem
4
68131-02F40-CA8
Emblem
4
68131-02F40-CS4
.emblem
5
47110-02F10-Y7L
Cover, frame rh (black)
5
47110-02F10-Y7M
Cover, frame rh (red)
5
47110-02F10-Y9H
Cover, frame rh (yellow)
5
47110-02F10-YC2
over, frame rh (blue)
6
47210-02F10-Y7L
Cover, frame lh (black)
6
47210-02F10-Y7M
Cover, frame lh (red)
6
47210-02F10-Y9H
Cover, frame lh (yellow)
6
47210-02F10-YC2
over, frame lh (blue)
7
47161-02F00
Cushion
8
09320-08527
Cushion
1 640 ₽/шт
9
03241-1512B
Болт
82 ₽/шт
10
09148-05038
ГАЙКА
97 ₽/шт
11
09136-06105
Болт
129 ₽/шт
12
09180-06286
Кольцо/шайба
162 ₽/шт
13
09320-10045
CUSHION
210 ₽/шт
14
09136-05034
Винт 5X16
136 ₽/шт
15
09148-05038
ГАЙКА
97 ₽/шт
16
47311-02F00-Y7L
Cover,frame,cen
16
47311-02F00-YC2
over, frame center (blue)
17
03241-1512B
Болт
82 ₽/шт
18
09148-05038
ГАЙКА
97 ₽/шт
19
47129-02F00
CUSHION
864 ₽/шт
