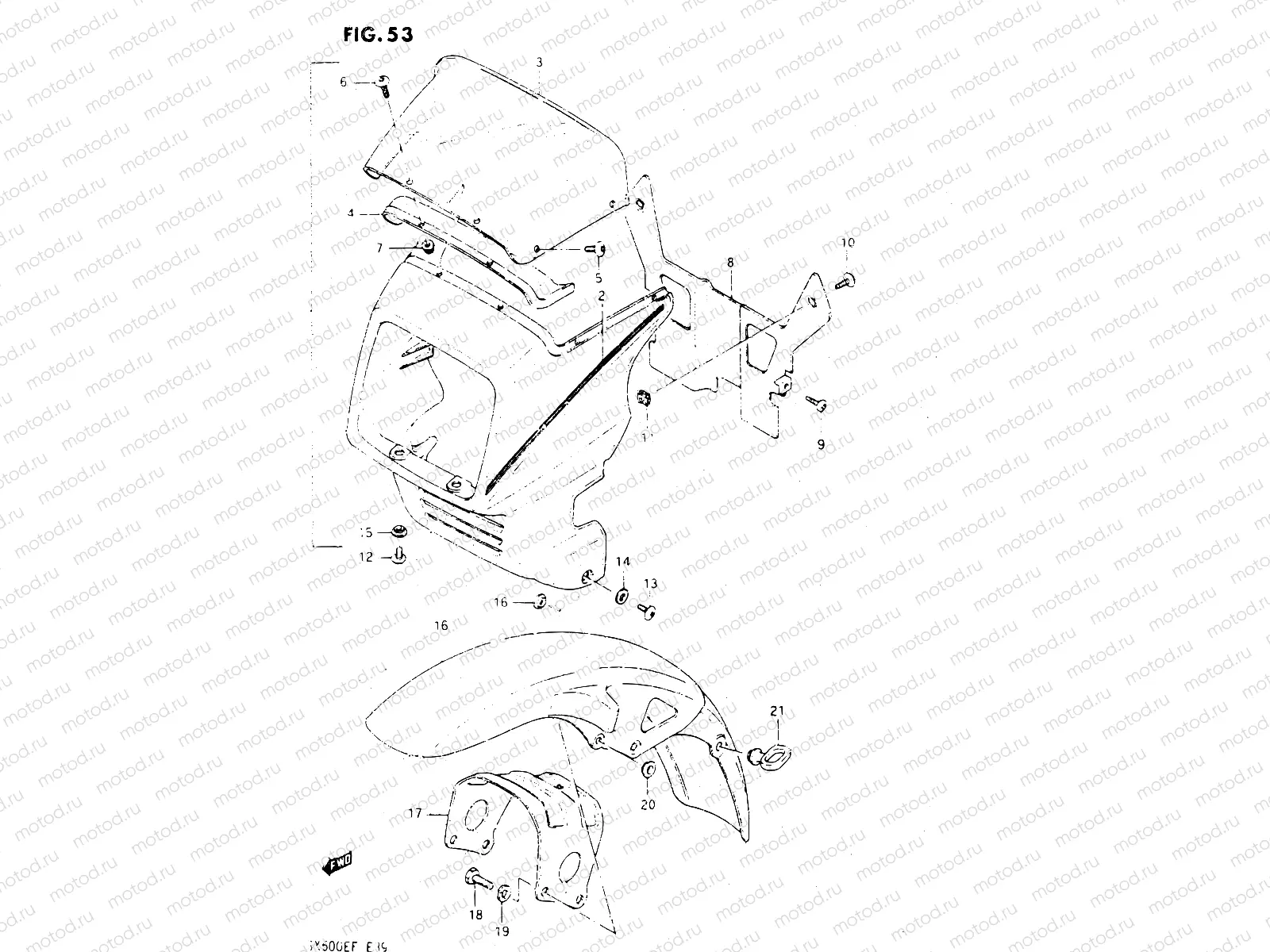

53 - COVER HEADLAMP - FRONT FENDER (MODEL F)

53 - COVER HEADLAMP - FRONT FENDER (MODEL F)
Например: 51800-43460-7JH
1
51800-43460-7JH
Cover assy, headlamp
1
51800-43460-7JJ
Cover assy, headlamp
2
68250-43440-7JF
.tape set
2
68250-43440-7JG
.tape set
3
51845-43400
.window, cover
4
51843-43400
.dover, upper
5
09139-05021
Винт (5X12)
81 ₽/шт
6
09139-05042
Винт 5X16
119 ₽/шт
7
08319-3105A
Гайка
1 880 ₽/шт
8
51871-43400
Plate, headlamp cover
9
03212-0512B
Болт
85 ₽/шт
10
02142-0410A
Винт
81 ₽/шт
11
09148-04015
NUT
170 ₽/шт
12
02142-06127
Винт 6X12
81 ₽/шт
13
02142-06127
Винт 6X12
81 ₽/шт
14
09160-06109
Шайба
85 ₽/шт
15
09169-06071
Шайба
97 ₽/шт
16
53111-43400-13L
Fender,fr
17
53114-43400
Brace, front fender
18
01500-0816B
Болт
85 ₽/шт
19
08321-01087
Пластина замка
81 ₽/шт
20
09169-08034
Шайба
1 170 ₽/шт
21
58621-21204
Направляющая кабеля
824 ₽/шт
