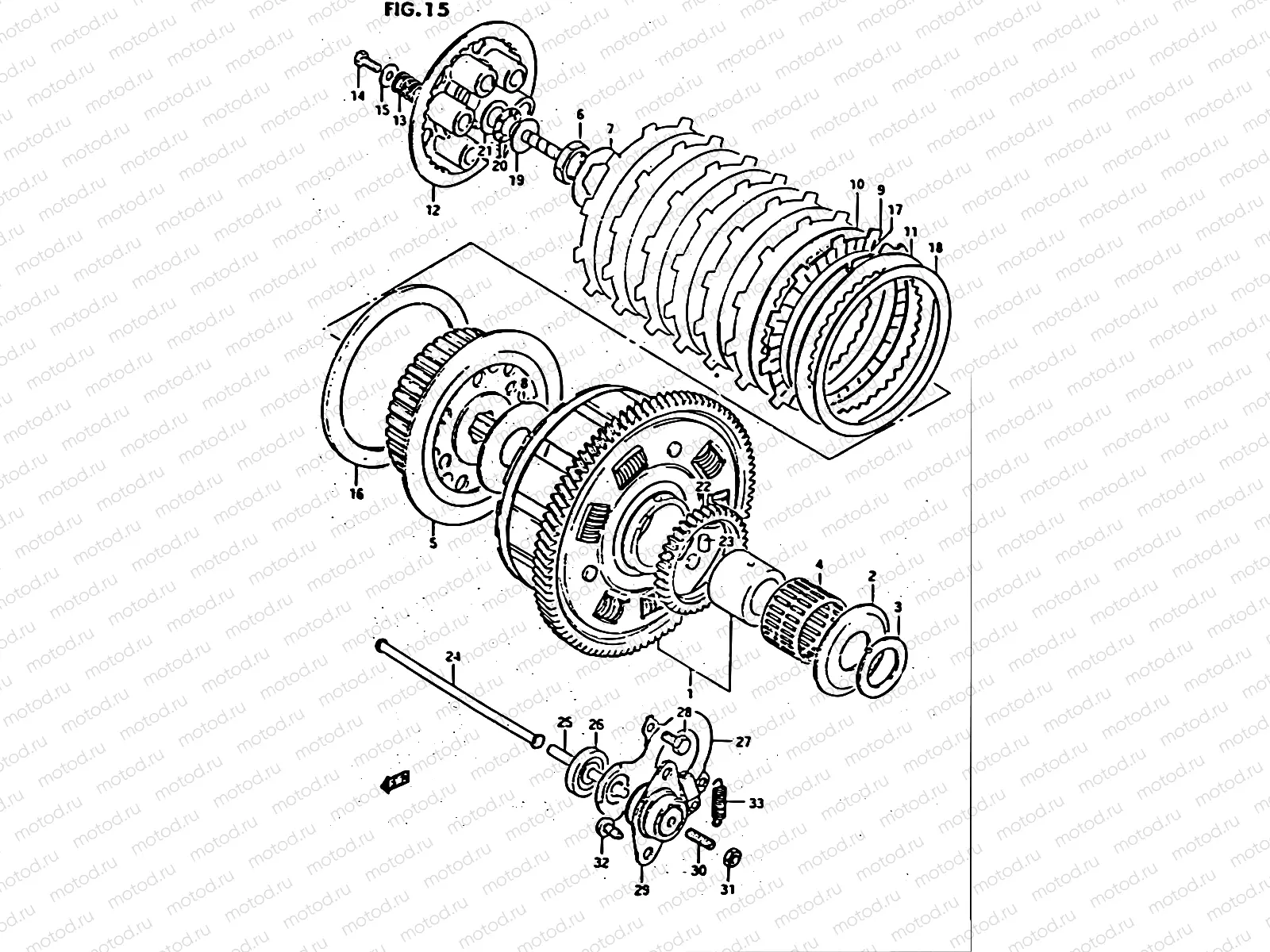

15 - CLUTCH

15 - CLUTCH

Например: 21200-43810

1

21200-43810

Gear assy, primary driven

2

09160-25038

Washer

3

08211-25405

Washer

4

09263-40004

BEARING(40X45X32)

2 581 ₽/шт

5

21410-43401

Hub, sleeve

6

09140-24007

ШАЙБА

2 390 ₽/шт

7

09167-25007

ШАЙБА

1 560 ₽/шт

8

09160-25038

Washer

9

21441-45001

PLATE,CLUTCH DRIVE

2 268 ₽/шт

10

21451-28C31

ДИСК СЦЕПЛЕНИЯ

901 ₽/шт

11

21451-31000

PLATE,CLUTCH DRIVEN(T:2.0)

974 ₽/шт

12

21462-14301

DISC,CLUTCH PRESSURE

4 653 ₽/шт

13

09440-19004

Пружина

1 880 ₽/шт

14

01107-06168

Vis

15

09160-06066

Шайба

102 ₽/шт

16

21471-45101

SEAT,WAVE WASHER

1 161 ₽/шт

17

21481-45100

RING,WAVE WASHER STOPPER

238 ₽/шт

18

09164-00003

ШАЙБА ФОРСУНКИ

646 ₽/шт

19

23121-44100

PIECE,CLUTCH PUSH

1 474 ₽/шт

20

09263-15003

Подшипник 15X28X2

532 ₽/шт

21

09160-15045

Шайба

211 ₽/шт

22

16321-43400

Gear, oil pump drive (nt:36)

23

09261-06005

Pin

24

23110-32C50

Штанга муфты

1 771 ₽/шт

25

23111-15501

ROD,CLUTCH PUSH,L

765 ₽/шт

26

09285-06018

Сальник

2 503 ₽/шт

27

23117-43400

Holder, oil seal

28

01500-06127

Болт

81 ₽/шт

29

23200-31300

SCREW ASSY,CLUTCH RELEASE

10 578 ₽/шт

30

09134-06010

Болт

1 880 ₽/шт

31

08310-00067

Гайка

81 ₽/шт

32

03111-06163

Screw

33

09443-08001

Пружина

254 ₽/шт
