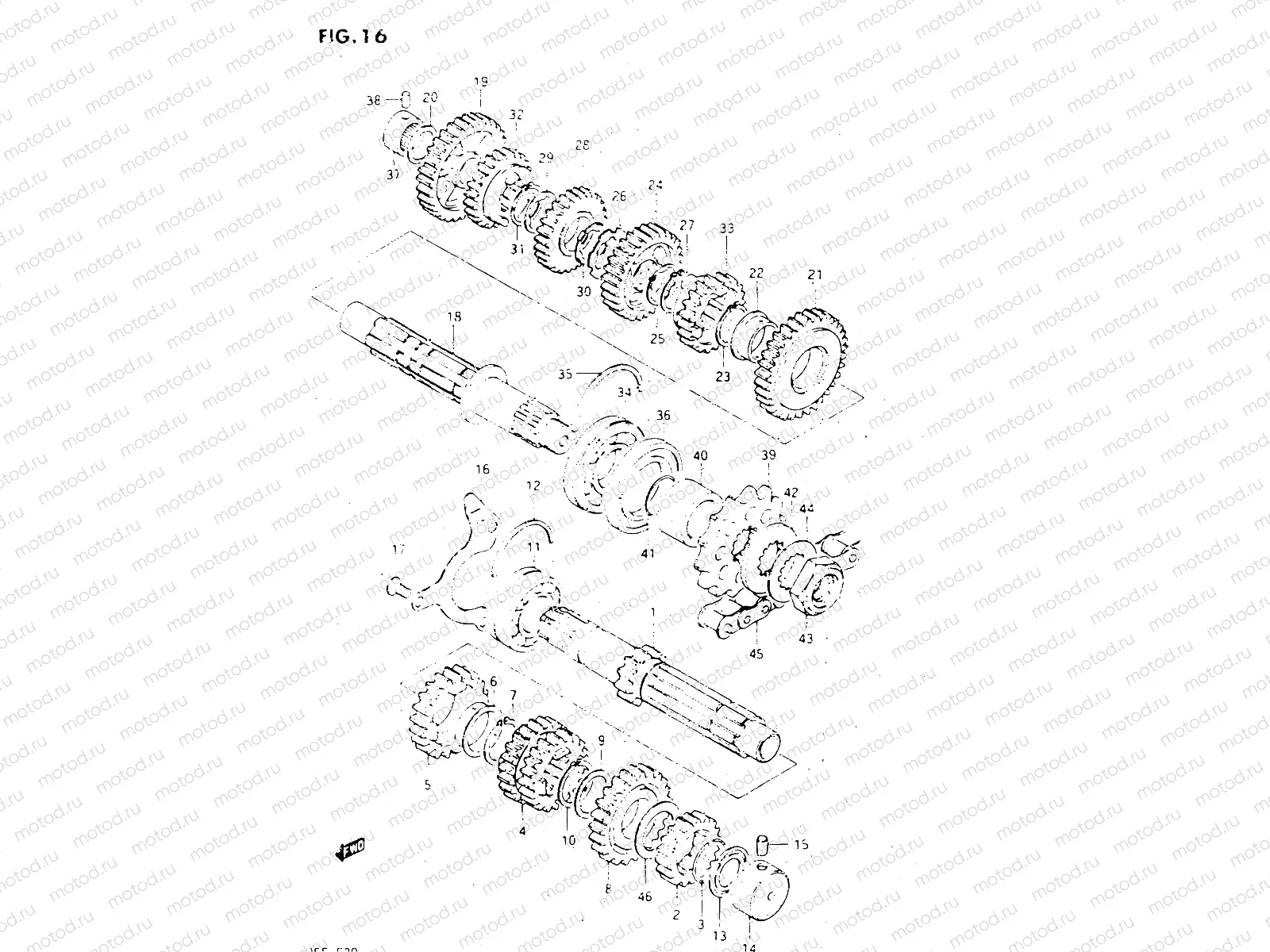

16 - TRANSMISSION

16 - TRANSMISSION
Например: 24121-43400
1
24121-43400
Countershaft (nt:12)
2
24221-43400
Gear, 2nd drive (nt:18)
3
09380-25006
Seeger
4
24231-43401
Gear, 3/4 drive (nt:21/23)
5
24251-43400
Gear, 5th drive (nt:22)
6
24322-19F00
Втулка
1 193 ₽/шт
7
09380-25003
КЛИПС
291 ₽/шт
8
24261-43401
Gear, 6th drive (nt:23)
9
09167-25012
Шайба
1 840 ₽/шт
10
09380-25003
КЛИПС
291 ₽/шт
11
09267-25008
Ball bearing 25
12
09390-58001
ПОЛУКОЛЬЦО GV 2.0
1 720 ₽/шт
13
09285-20006
Сальник
598 ₽/шт
14
09263-20119
Bearing(20X34X17.5)
5 474 ₽/шт
15
04221-07209
ШТИФТ
102 ₽/шт
16
24741-43400
Holder, bearing
17
02122-0616B
Болт
85 ₽/шт
18
24131-43401
Driveshaft
19
24310-43400
Gear, 1st driven (nt:32)
20
08211-20341
WASHER
1 410 ₽/шт
21
24321-43400
Gear, 2nd driven (nt:32)
22
24322-19F00
Втулка
1 193 ₽/шт
23
09380-25003
КЛИПС
291 ₽/шт
24
24330-43401
Gear,3rd driven
25
09167-25012
Шайба
1 840 ₽/шт
26
09167-25013
Шайба
1 640 ₽/шт
27
09380-25003
КЛИПС
291 ₽/шт
28
24340-43400
Gear, 4th driven (nt:27)
29
09167-25012
Шайба
1 840 ₽/шт
30
09169-25001
Шайба
1 370 ₽/шт
31
09380-25003
КЛИПС
291 ₽/шт
32
24351-43401
Gear, 5th driven (nt:23)
33
24361-43402
TANDWIEL,6DE V
34
09262-25105
Подшипник
5 653 ₽/шт
35
09390-62012
C RING
4 460 ₽/шт
36
09283-33002
Oil seal 33x62x
37
09263-20040
ПОДШИПНИК ШАРИКОВЫЙ
4 505 ₽/шт
38
04221-07209
ШТИФТ
102 ₽/шт
39
27510-21E00
Pignon avant (Z=14)
40
09180-25066
Spacer
41
09280-25001
O RING(D:1,ID:24.5)
1 250 ₽/шт
42
27519-45201
SPACER
2 131 ₽/шт
43
09159-20004
Гайка
759 ₽/шт
44
09167-25019
Шайба
194 ₽/шт
45
27600-43410-114
Chain, drive (114le)
46
09181-25036
Shim (t:0.5)
46
09181-25037
Shim (t:0.6)
46
09181-25038
Shim (t:0.7)
46
09181-25039
Shim (t:0.8)
