Главная Каталог товаров SUZUKI EPC 1099 cm³ < SUZUKI GSX-R 1100 SUZUKI GSX-R1100 L SUZUKI 52A - REAR SWINGING ARM (MODEL L)

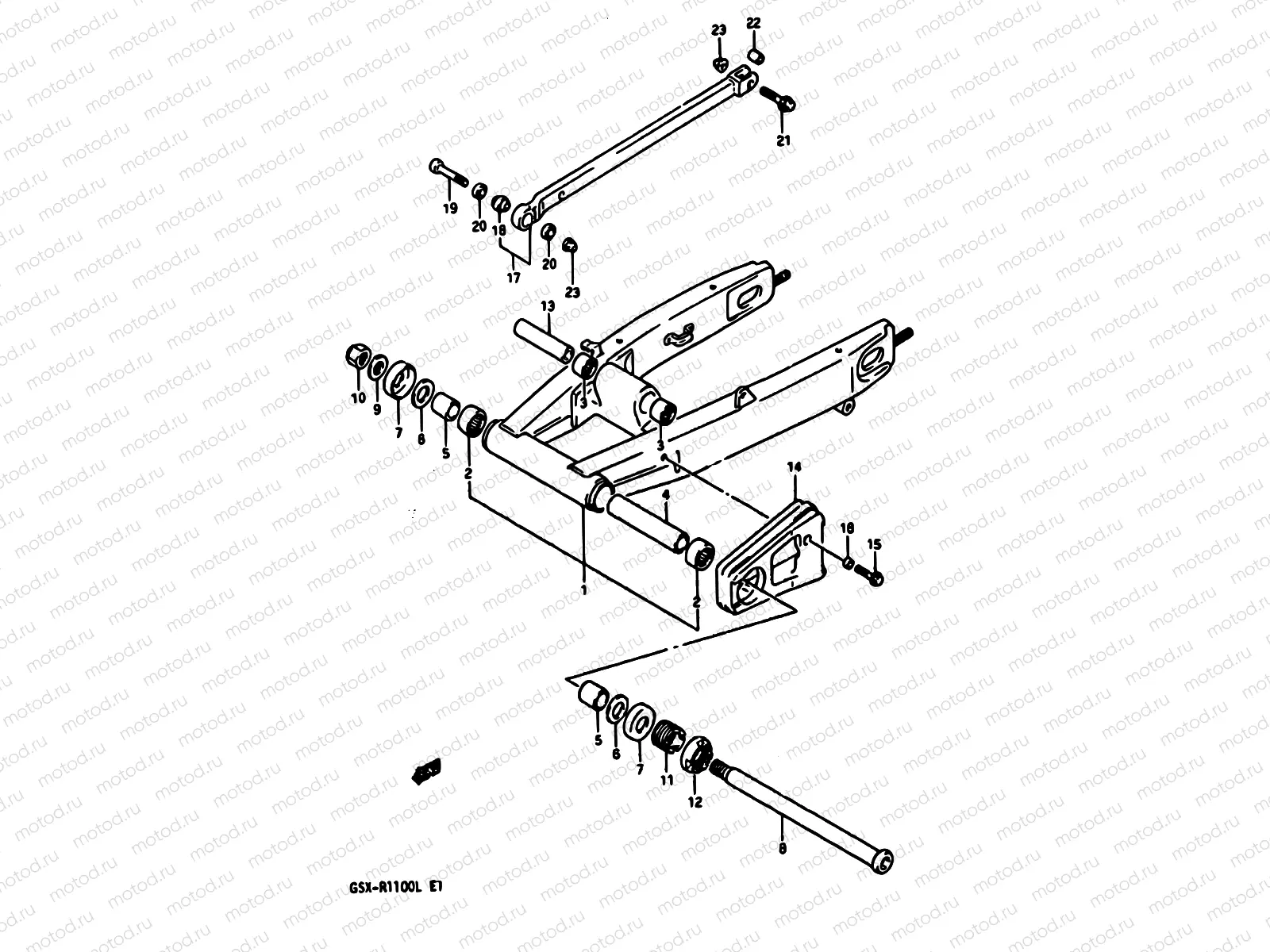

52A - REAR SWINGING ARM (MODEL L)

52A - REAR SWINGING ARM (MODEL L)
Например: 61000-40C10
1
61000-40C10
Swinging arm assy,rear
2
09263-25024
BEARING(25X33X30)
4 165 ₽/шт
3
09263-20071
BEARING(20X27X23.5)
1 309 ₽/шт
4
61282-17C00
SPACER,RR SWGARM PIVOT CTR
1 423 ₽/шт
5
61251-17C00
SPACER,RR SWGARM PIVOT BERRING
5 049 ₽/шт
6
08211-20381
Шайба упорная
179 ₽/шт
6
08211-20382
Шайба
1 920 ₽/шт
7
61262-17C01
Dust Seal,rr Swgarm Pivot
1 173 ₽/шт
8
61211-40C00
Shaft,rr pivot
9
08322-0118B
Шайба
1 370 ₽/шт
10
09159-18007
Гайка
10 240 ₽/шт
11
61213-40C30
BOLT,RR SWGARM PIVOT
5 122 ₽/шт
12
61214-40C31
NUT,RR SWGARM PIVOT BOLT
2 972 ₽/шт
13
62317-40C10
SPACER,RR CUSHION ROD
2 092 ₽/шт
14
61273-40C01
Guard chain sliding shoe
15
09116-06152
BOLT(6X20)
146 ₽/шт
16
09180-06283
Кольцо/шайба
162 ₽/шт
17
64300-40821
Torquelink set
18
64352-40401
Roulement
19
09106-08048
Bolt
20
64339-40411
Seal,bearing Dust
318 ₽/шт
21
09103-08178
Болт
2 740 ₽/шт
22
64336-20A00
Spacer
23
08319-31087
Гайка
178 ₽/шт
