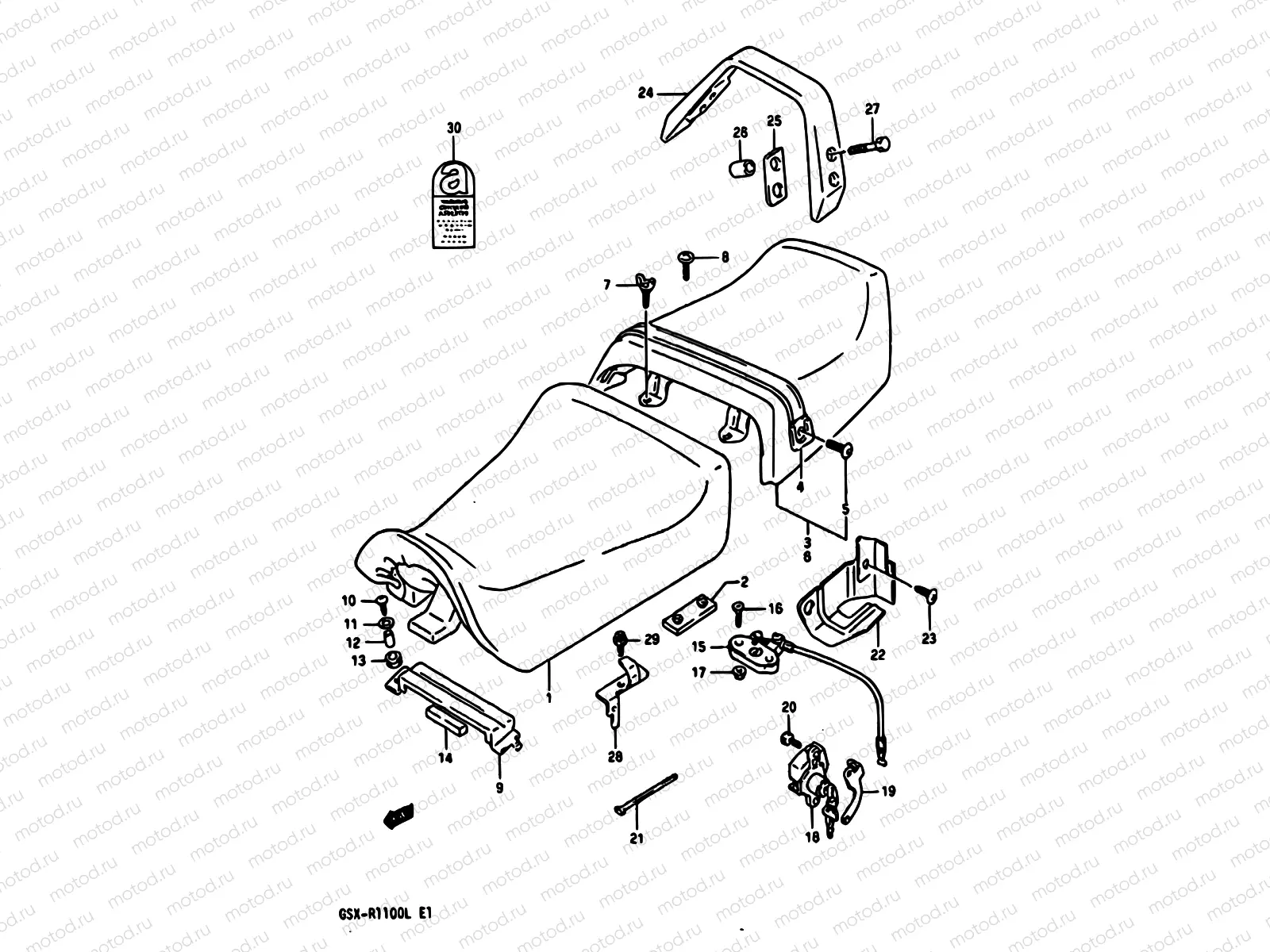

37A - SEAT (MODEL L)

37A - SEAT (MODEL L)
Например: 45100-40C00-58R
1
45100-40C00-58R
Seat assy (black)
2
09321-08009
CUSHION
1 840 ₽/шт
3
45300-17C01-58R
Seat,pillion
4
45180-17C00-58R
.band,seat (black)
5
45186-06B00
OLT
371 ₽/шт
7
09119-06072
Vis
8
09139-06050
Болт
187 ₽/шт
9
45271-40C0V
PLATE,SEAT SUPPORT RR
12 082 ₽/шт
10
02142-0620B
Болт
1 060 ₽/шт
11
09160-06052
Шайба
136 ₽/шт
12
09180-06248
Кольцо/шайба
179 ₽/шт
13
09320-08501
САЙЛЕНТБЛОК
1 880 ₽/шт
14
45272-17C02
USHION,PLATE SEAT SUPPORT
405 ₽/шт
15
45220-17C00
BRACKET,SEAT SUPPORT RR
5 005 ₽/шт
16
02122-0625B
Болт
1 090 ₽/шт
17
08319-31067
Гайка
153 ₽/шт
18
45700-19841
Cap set,seat
19
45123-17C00
Plate,seat lock
20
09106-06075
БОЛТ
1 450 ₽/шт
21
09407-09402
CLAMP
1 410 ₽/шт
22
45288-40C11
23
01500-0616B
Болт
1 330 ₽/шт
24
46211-17C00
Handle,pillion
25
46238-17C10
Damper
26
09180-08078
Spacer 8.6x16x2
27
07130-0850A
БОЛТ
170 ₽/шт
28
95721-40C00
Holder,helmet
29
07120-0612B
БОЛТ
184 ₽/шт
30
11967-82000
LABEL
