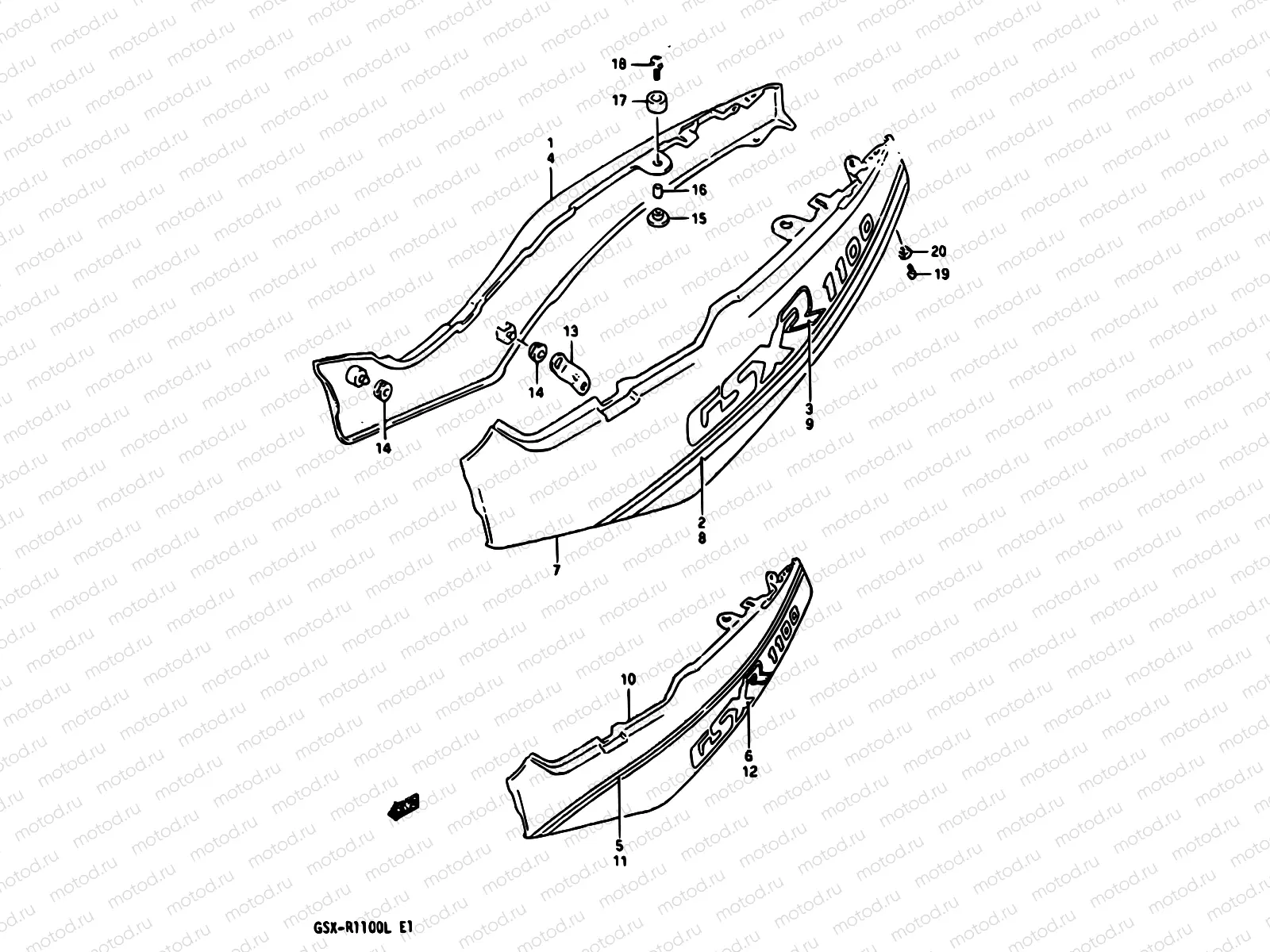

39A - FRAME COVER (MODEL L)

39A - FRAME COVER (MODEL L)
Например: 47110-40C61-3EE
1
47110-40C61-3EE
over,frame rh
1
47110-40C61-3SH
over,frame rh
2
68135-40C30-3TT
.tape,frame cover rh
2
68135-40C30-3TS
.tape,frame cover rh
3
68131-40C40-3RZ
Emblem
3
68131-40C40-3YZ
Emblem
4
47111-17C00
OVER,FRAME R
5
68135-17D00-3CH
.tape,rh
6
68131-40C40-2RM
Emblem,frame co
7
47210-40C61-3EE
over,frame lh
7
47210-40C61-3SH
over,frame lh
8
68145-40C30-3TT
.tape,lh
8
68145-40C30-3TS
.tape,lh
9
68131-40C40-3RZ
Emblem
9
68131-40C40-3YZ
Emblem
10
47210-40C71-3CH
over,frame lh
11
68145-17D00-3CH
.tape,lh
12
68131-40C40-2RM
Emblem,frame co
13
43815-17C1V
Bracket,frame c
14
09320-08509
Cushion(8X22X7)
210 ₽/шт
15
45326-17C00
USHION,FRAME COVER LWR
786 ₽/шт
16
09180-06286
Кольцо/шайба
162 ₽/шт
17
45149-04A00
CUSHION,TAIL COVER UPR
162 ₽/шт
18
09136-06083
Винт 6X30
1 720 ₽/шт
19
02142-0512A
Болт
85 ₽/шт
20
09161-05017-LCP
Rondelle
